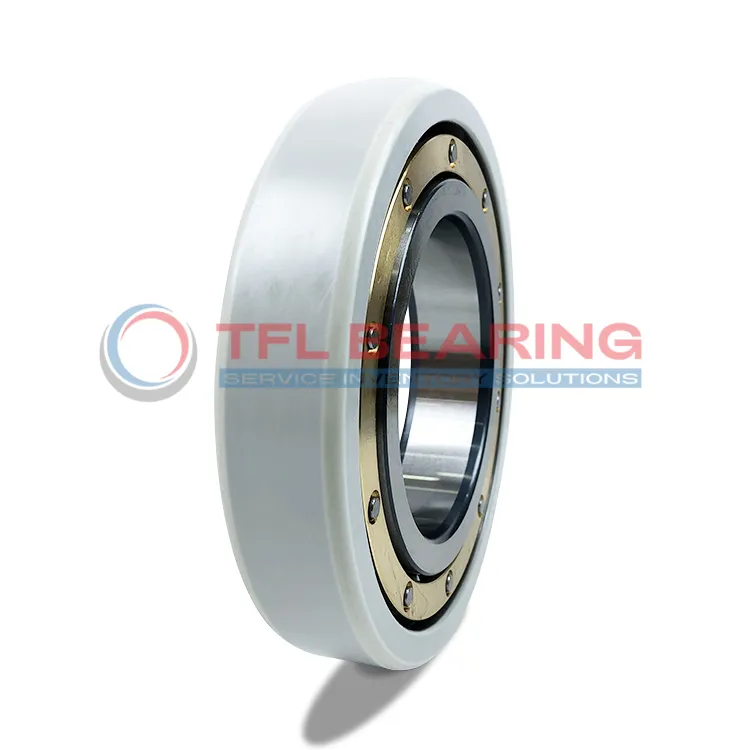

The FAG 6326-M-J20AA-C3 is a current-insulated bearing with a 130mm bore and 280mm outer diameter, designed to handle electrical currents. Its outer ring features a ceramic coating, providing insulation up to 3000V and resistance of 50MΩ when dry.
This bearing supports dynamic loads up to 244kN and static loads of 214kN, with a reference speed of 4150 RPM. The brass cage ensures durability and smooth operation under high stress.
With a C3 radial clearance, it accommodates thermal expansion, making it suitable for electric motors or generators. The coating also resists damp conditions, maintaining 10MΩ resistance.
Weighing 17.6kg, it’s robust for industrial use. Compliant with RoHS and REACH, it’s a reliable choice for applications requiring electrical insulation.
"*" indicates required fields
How Is 6326-M-J20AA-C3 Bearing Engineered for Reliability?
6326-M-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent electrical insulation with a breakdown voltage of up to 3000 V.
Its brass cage ensures smooth operation and reduces friction, even at high speeds of 4150 r/min.
The bearing’s C3 radial internal clearance allows for thermal expansion, making it suitable for various operating conditions.
With a basic dynamic load rating of 244 kN, it delivers reliable performance under heavy loads.
Why Choose 6326-M-J20AA-C3 Bearing for Precision Tasks?
6326-M-J20AA-C3 Bearing’s ceramic coating offers high electrical resistance, with 50MΩ when dry and 10MΩ in damp conditions.
The brass cage maintains ball alignment, ensuring consistent performance in precision applications.
Its dimensions (130.0 mm x 280.0 mm x 58.0 mm) make it ideal for machinery requiring robust yet compact components.
The bearing’s static load rating of 214 kN ensures stability in demanding environments.
Built for Durability: 6326-M-J20AA-C3 Bearing
6326-M-J20AA-C3 Bearing’s ceramic-coated outer ring resists electrical currents, preventing damage in high-voltage applications.
The brass cage and chrome steel construction enhance durability, even under continuous operation.
With a layer thickness of 200 µm, the insulation remains effective over long periods.
Its compliance with ROHS and REACH standards ensures environmental safety.
Steel vs Ceramic Bearings: Strengths of 6326-M-J20AA-C3 Bearing
6326-M-J20AA-C3 Bearing combines the strength of steel with the insulation properties of ceramic coating.
The brass cage reduces friction, while the ceramic layer prevents electrical arcing.
Its high dynamic load rating (244 kN) makes it suitable for heavy industrial use.
The bearing’s design ensures long service life with minimal maintenance.
Industrial Uses of 6326-M-J20AA-C3 Bearing
6326-M-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent damage from stray currents. The ceramic coating on the outer ring ensures reliable performance in high-voltage environments.
Where Is 6326-M-J20AA-C3 Bearing Used?
You’ll often find 6326-M-J20AA-C3 Bearing in wind turbines, where it handles both radial and axial loads while resisting electrical erosion. Its brass cage adds durability, making it suitable for long-term use in harsh conditions.
Built for Heavy-Duty Use: 6326-M-J20AA-C3 Bearing
6326-M-J20AA-C3 Bearing excels in industrial gearboxes, thanks to its high dynamic load rating and C3 clearance for thermal expansion. The insulating coating also makes it a smart choice for applications with frequent electrical interference.
Automotive vs Aerospace: Applications of 6326-M-J20AA-C3 Bearing
In automotive systems, 6326-M-J20AA-C3 Bearing is ideal for hybrid vehicle motors, where electrical insulation is critical. For aerospace, its lightweight design and reliability make it suitable for auxiliary power units.
Perfect Fit for Automation: 6326-M-J20AA-C3 Bearing
6326-M-J20AA-C3 Bearing works well in robotic arms and CNC machines, offering smooth operation under varying loads. The damp electrical resistance ensures consistent performance even in humid environments.
