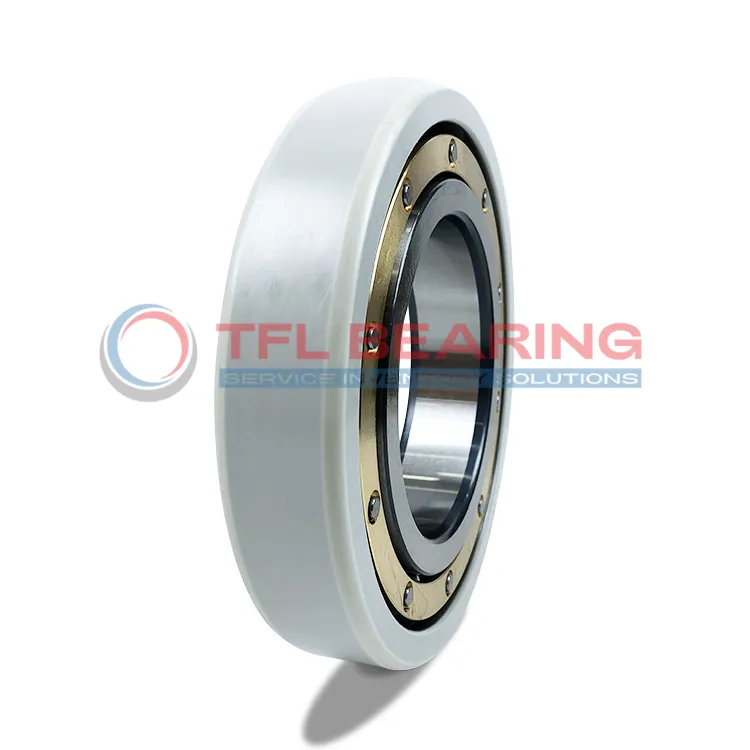

The FAG 6324-M-J20AA-C3 is a current-insulated bearing with a 120mm bore and 260mm outer diameter, designed to prevent electrical damage. Its outer ring features a ceramic coating, providing insulation up to 3000V.
This bearing handles dynamic loads up to 225kN and spins smoothly at speeds up to 4550 RPM. The brass cage ensures durability, while the C3 clearance allows for thermal expansion.
The ceramic coating maintains high electrical resistance, even in damp conditions (10MΩ). It’s ideal for electric motors or generators where stray currents are a concern.
Weighing 14.3kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a reliable choice for demanding applications.
"*" indicates required fields
How Is 6324-M-J20AA-C3 Bearing Engineered for Reliability?
6324-M-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent electrical insulation with a breakdown voltage of up to 3000 V.
The brass cage ensures smooth operation and reduces friction, even at high speeds of 4550 r/min.
With a basic dynamic load rating of 225.0 kN, it handles heavy loads reliably in demanding applications.
Its C3 radial internal clearance allows for thermal expansion, ensuring consistent performance.
What Makes 6324-M-J20AA-C3 Bearing Suitable for High-Temperature Applications?
6324-M-J20AA-C3 Bearing’s ceramic coating offers high thermal resistance, maintaining performance in elevated temperatures.
The brass cage material enhances durability, reducing wear even under continuous operation.
With a layer thickness of 200 µm, the insulation remains effective in harsh environments.
Its electrical resistance of 50MΩ (dry) ensures reliable insulation in various conditions.
Built for Reliability: 6324-M-J20AA-C3 Bearing
6324-M-J20AA-C3 Bearing is designed with a robust brass cage, ensuring long-lasting performance.
The ceramic-coated outer ring provides superior insulation, preventing electrical damage.
With a static load rating of 195.0 kN, it offers stability and strength for heavy-duty use.
Its compliance with ROHS and REACH standards ensures environmental and safety reliability.
Steel vs Ceramic Bearings: Strengths of 6324-M-J20AA-C3 Bearing
6324-M-J20AA-C3 Bearing combines the strength of steel with the insulation benefits of ceramic coating.
The ceramic layer ensures electrical resistance, while the steel core provides structural integrity.
Its high dynamic load rating of 225.0 kN makes it suitable for industrial applications.
The brass cage further enhances its durability and smooth operation.
Industrial Uses of 6324-M-J20AA-C3 Bearing
The 6324-M-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent damage from stray currents. Its ceramic coating ensures reliable performance in high-voltage environments.
Where Is 6324-M-J20AA-C3 Bearing Used?
You’ll often find the 6324-M-J20AA-C3 Bearing in wind turbines, where it handles both radial and axial loads while resisting electrical erosion. The brass cage adds durability, making it suitable for long-term use.
Built for Heavy-Duty Use: 6324-M-J20AA-C3 Bearing
In industrial gearboxes, the 6324-M-J20AA-C3 Bearing excels due to its high dynamic load rating and C3 clearance. The insulating coating also makes it a smart choice for applications with frequent electrical interference.
Automotive vs Aerospace: Applications of 6324-M-J20AA-C3 Bearing
While the 6324-M-J20AA-C3 Bearing isn’t typically used in aerospace, it’s great for electric vehicle drivetrains. Its breakdown voltage rating ensures safety in high-power automotive systems.
Perfect Fit for Automation: 6324-M-J20AA-C3 Bearing
The 6324-M-J20AA-C3 Bearing works well in automated machinery, where its consistent performance reduces downtime. The damp electrical resistance is particularly useful in humid factory conditions.
