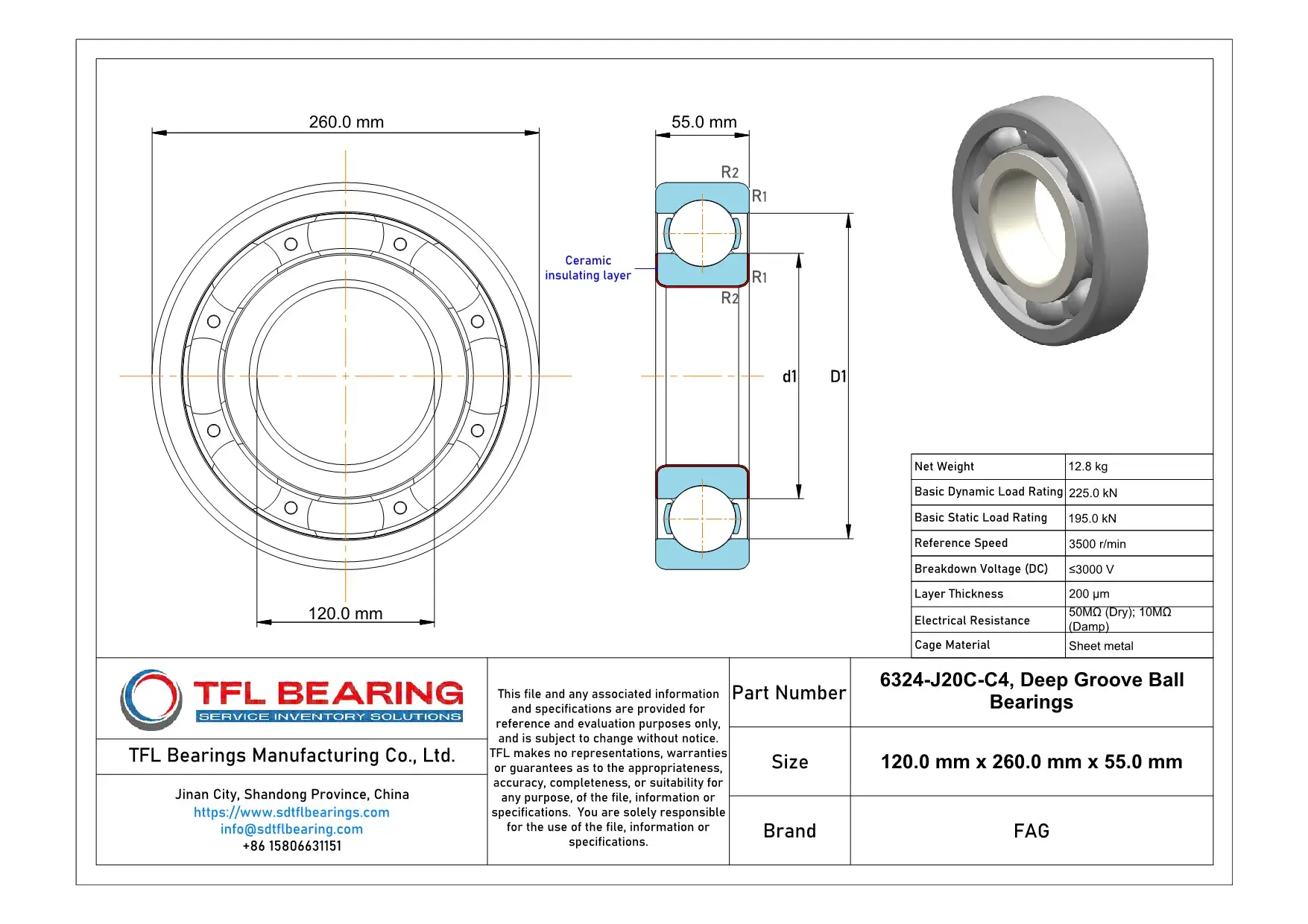

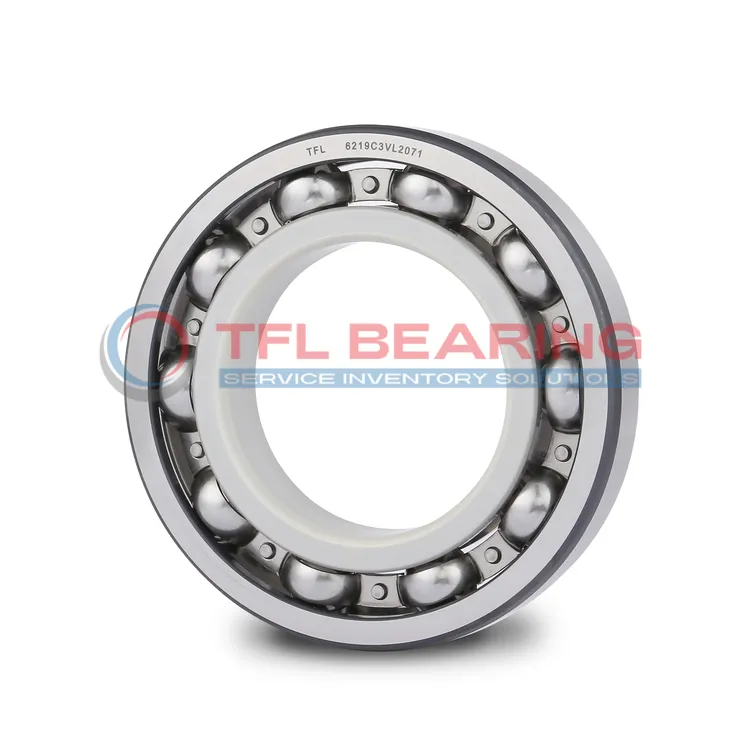

The FAG 6324-J20C-C4 is a current-insulated bearing with a 120mm bore and 260mm outer diameter, designed to prevent electrical damage. Its inner ring features a ceramic coating, providing insulation up to 3000V.
This model handles dynamic loads up to 225kN and operates smoothly at speeds up to 3500 RPM. The sheet metal cage ensures durability, while the C4 radial clearance allows for thermal expansion.
The insulating layer is 200µm thick, offering high electrical resistance (50MΩ dry, 10MΩ damp). It’s compliant with RoHS and REACH standards for environmental safety.
Ideal for electric motors or generators where stray currents are a concern. Weighing 12.8kg, it’s robust yet manageable for industrial applications.
"*" indicates required fields
How Is 6324-J20C-C4 Bearing Engineered for Reliability?
6324-J20C-C4 Bearing features an inner ring ceramic coating, providing excellent insulation against electrical currents.
Its breakdown voltage of up to 3000 V ensures protection in high-voltage environments.
The sheet metal cage maintains ball alignment, enhancing durability under heavy loads.
With a dynamic load rating of 225 kN, it delivers reliable performance in demanding applications.
6324-J20C-C4 Bearing operates smoothly at speeds up to 3500 r/min.
Its C4 radial clearance allows for thermal expansion, ensuring stability in varying conditions.
Industrial Uses of 6324-J20C-C4 Bearing
The 6324-J20C-C4 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent damage from stray currents. Its ceramic-coated inner ring ensures reliable performance in high-voltage environments.
In wind turbine applications, 6324-J20C-C4 Bearing handles heavy loads while resisting electrical erosion, making it ideal for renewable energy systems. The C4 clearance allows for thermal expansion during continuous operation.
For industrial pumps and compressors, 6324-J20C-C4 Bearing’s sheet metal cage provides stability under varying speeds. Its damp electrical resistance rating ensures consistent performance even in humid conditions.
Automotive vs Aerospace: Applications of 6324-J20C-C4 Bearing
In electric vehicles, 6324-J20C-C4 Bearing supports traction motors by mitigating electrical arcing risks. The 260mm outer diameter offers ample load distribution for compact designs.
Aerospace systems benefit from 6324-J20C-C4 Bearing’s lightweight construction and insulation capabilities. Its 3500 r/min reference speed suits auxiliary power units and flight control mechanisms.
What Makes 6324-J20C-C4 Bearing a Preferred Choice?
The 6324-J20C-C4 Bearing stands out in railway applications where electrical isolation is critical for signalling equipment. Its 200µm coating thickness provides durable protection against current leakage.
Food processing machinery often uses 6324-J20C-C4 Bearing due to its corrosion-resistant materials. The ROHS compliance makes it suitable for environments with strict hygiene standards.
