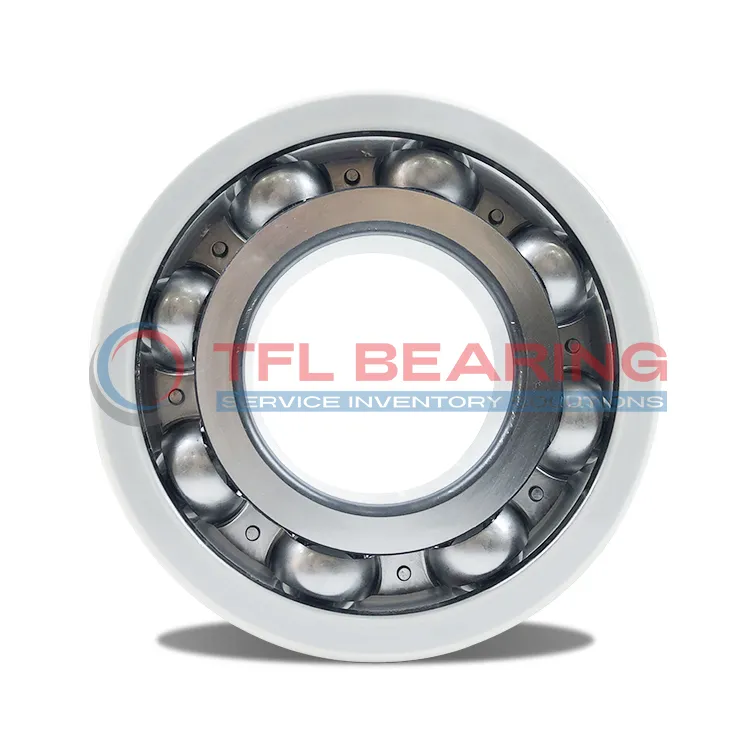

The FAG 6324-J20AB-C3 is a current-insulated bearing with a 120mm bore and 260mm outer diameter, designed to handle electrical currents. Its outer ring features a ceramic coating, providing insulation up to 500V DC.
With a dynamic load rating of 225kN and a static load rating of 195kN, it offers reliable performance under heavy loads. The bearing can reach speeds up to 3500 RPM, making it suitable for high-speed applications.
The sheet metal cage ensures durability, while the C3 radial clearance allows for thermal expansion. It weighs 12.8kg and complies with RoHS and REACH standards.
Ideal for electric motors and generators, this bearing prevents electrical damage, ensuring smooth operation in demanding environments. Its insulation remains effective even in damp conditions.
"*" indicates required fields
How Is 6324-J20AB-C3 Bearing Engineered for Reliability?
6324-J20AB-C3 Bearing features an outer ring ceramic coating, providing excellent insulation against electrical currents.
The coating ensures a breakdown voltage of up to 500 V, making it suitable for electric motor applications.
With a basic dynamic load rating of 225 kN, 6324-J20AB-C3 Bearing handles heavy loads efficiently.
Its C3 radial internal clearance allows for thermal expansion, ensuring stable performance under varying temperatures.
The sheet metal cage maintains ball alignment, reducing friction and wear.
6324-J20AB-C3 Bearing’s design ensures long service life, even in demanding industrial environments.
Industrial Uses of 6324-J20AB-C3 Bearing
The 6324-J20AB-C3 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical damage. Its ceramic outer ring coating ensures reliable performance in environments with electrical currents.
In wind turbines, 6324-J20AB-C3 Bearing handles high dynamic loads while maintaining insulation properties. The C3 radial clearance allows for thermal expansion, making it suitable for variable operating conditions.
For industrial pumps, 6324-J20AB-C3 Bearing’s sheet metal cage provides stability under heavy loads. The breakdown voltage rating ensures safety in electrically charged applications.
Where Is 6324-J20AB-C3 Bearing Used?
You’ll often find 6324-J20AB-C3 Bearing in railway traction motors, where electrical insulation is critical. Its damp resistance rating makes it ideal for outdoor or humid environments.
The bearing also works well in conveyor systems, thanks to its high dynamic load capacity. The 260mm outer diameter provides ample support for heavy-duty applications.
Built for Heavy-Duty Use: 6324-J20AB-C3 Bearing
6324-J20AB-C3 Bearing excels in mining equipment, where both load and electrical insulation are key. The 55mm width offers added stability for rugged machinery.
Its 3500 r/min reference speed makes it suitable for high-speed industrial fans. The dry electrical resistance ensures consistent performance over time.
Automotive vs Aerospace: Applications of 6324-J20AB-C3 Bearing
In automotive electric vehicles, 6324-J20AB-C3 Bearing prevents current leakage in drive systems. The 120mm bore fits standard EV motor shafts.
For aerospace ground equipment, the bearing’s lightweight design (12.8kg) and insulation properties are advantageous. The ROHS compliance meets environmental standards.
