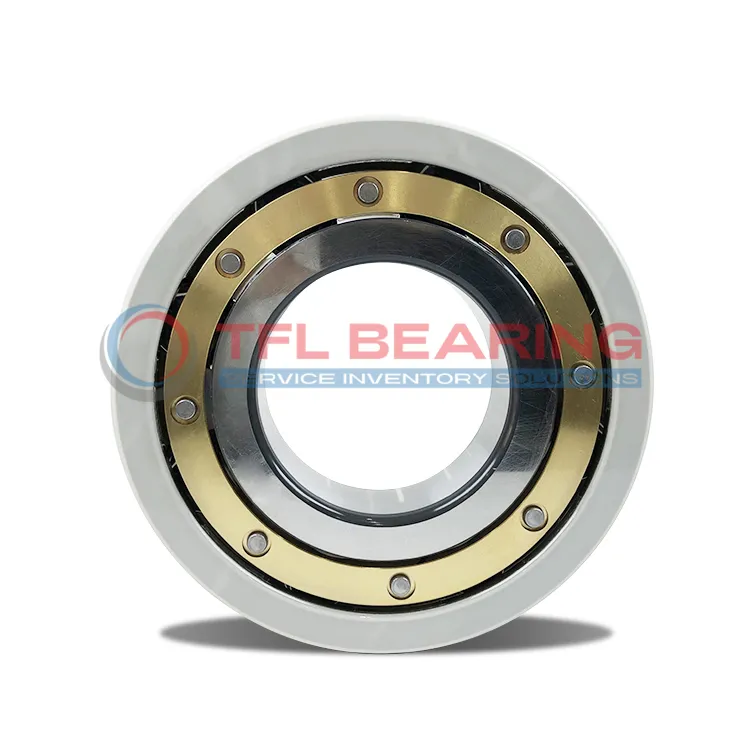

The FAG 6320-M-J20AA-C3 is a current-insulated bearing with a 100mm bore and 215mm outer diameter, designed to prevent electrical damage. Its outer ring features a ceramic coating, providing insulation up to 3000V.
This bearing handles dynamic loads up to 182kN and spins smoothly at speeds up to 5500 RPM. The brass cage ensures durability, while the C3 radial clearance allows for thermal expansion.
The ceramic coating offers high electrical resistance, even in damp conditions (10MΩ). It’s ideal for electric motors or generators where stray currents are a concern.
Weighing 8.729kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards for safe operation.
"*" indicates required fields
How Is 6320-M-J20AA-C3 Bearing Engineered for Reliability?
6320-M-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent insulation against electrical currents.
Its brass cage ensures smooth operation and reduces friction, even at high speeds up to 5,500 r/min.
With a basic dynamic load rating of 182.0 kN, it handles heavy loads reliably.
The C3 radial internal clearance allows for thermal expansion, making it suitable for varied operating conditions.
What Makes 6320-M-J20AA-C3 Bearing Suitable for High-Temperature Applications?
6320-M-J20AA-C3 Bearing’s ceramic coating withstands high temperatures, maintaining performance in demanding environments.
The brass cage material enhances durability, ensuring long service life under heavy loads.
Its breakdown voltage of up to 3,000 V makes it ideal for applications with electrical currents.
The bearing’s design ensures stable operation, even in damp conditions with reduced electrical resistance.
Designed for Durability: 6320-M-J20AA-C3 Bearing
6320-M-J20AA-C3 Bearing’s ceramic-coated outer ring resists wear, extending its lifespan.
The brass cage maintains ball alignment, reducing friction and noise during operation.
With a static load rating of 140.0 kN, it offers reliable performance in stationary applications.
Its C3 clearance accommodates thermal expansion, ensuring consistent performance under varying temperatures.
Steel vs Ceramic Bearings: Strengths of 6320-M-J20AA-C3 Bearing
6320-M-J20AA-C3 Bearing combines the strength of steel with the insulation of ceramic coating.
The ceramic layer provides high electrical resistance, up to 50MΩ in dry conditions.
Its brass cage ensures smooth rotation, even at the reference speed of 5,500 r/min.
The bearing’s design balances load capacity and insulation, making it versatile for industrial use.
Industrial Uses of 6320-M-J20AA-C3 Bearing
The 6320-M-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent damage from stray currents.
Its ceramic-coated outer ring ensures reliable performance in environments with electrical interference, making it ideal for industrial machinery.
Where Is 6320-M-J20AA-C3 Bearing Used?
You’ll often find 6320-M-J20AA-C3 Bearing in wind turbines and railway applications, where electrical insulation is crucial.
The brass cage and C3 clearance allow it to handle high speeds and loads without compromising efficiency.
Built for Heavy-Duty Use: 6320-M-J20AA-C3 Bearing
This bearing excels in heavy industrial equipment like pumps and compressors, thanks to its robust design and high dynamic load rating.
The 200 µm insulating layer provides long-lasting protection against electrical arcing, even in damp conditions.
Automotive vs Aerospace: Applications of 6320-M-J20AA-C3 Bearing
In automotive systems, 6320-M-J20AA-C3 Bearing is used in hybrid vehicle drivetrains to manage electrical currents.
For aerospace, its lightweight yet durable construction makes it suitable for auxiliary power units and other critical components.
Perfect Fit for Automation: 6320-M-J20AA-C3 Bearing
The 6320-M-J20AA-C3 Bearing is a great choice for automated production lines, where its insulation prevents electrical faults.
Its high reference speed and reliable performance ensure smooth operation in robotic arms and conveyor systems.
