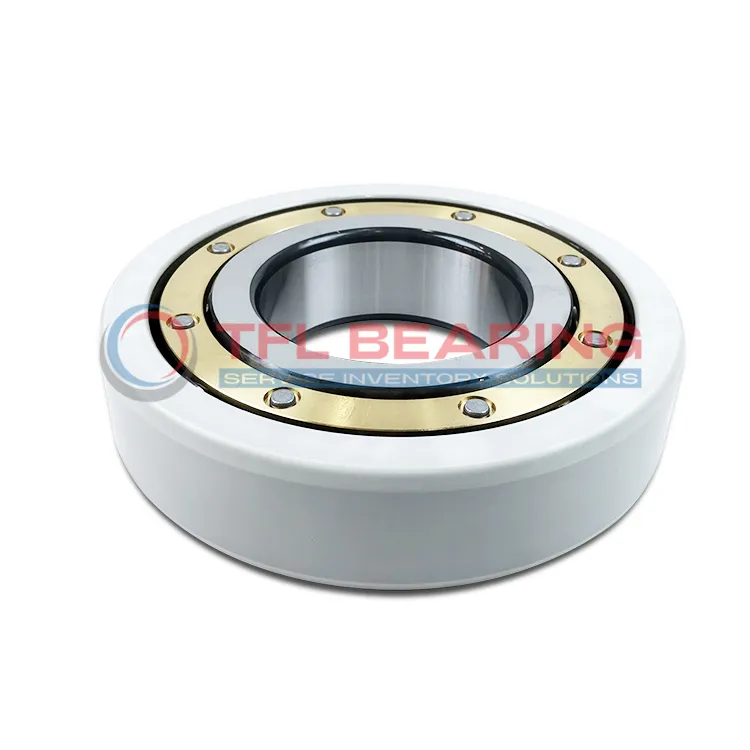

The FAG 6319-M-J20AA-C3 is a current-insulated bearing with a 95mm bore and 200mm outer diameter, designed to prevent electrical damage. Its outer ring features a ceramic coating, providing insulation up to 3000V.
This bearing handles dynamic loads up to 154kN and operates smoothly at speeds up to 6000 RPM. The brass cage ensures durability and reduces friction during high-speed rotation.
With a C3 radial clearance, it accommodates thermal expansion, making it suitable for variable temperature conditions. The coating maintains high electrical resistance, even in damp environments.
Ideal for electric motors or generators where stray currents are a concern, this model is RoHS and REACH compliant. Weighing 6.695kg, it offers robust performance in industrial applications.
"*" indicates required fields
How Is 6319-M-J20AA-C3 Bearing Engineered for Reliability?
6319-M-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent insulation against electrical currents.
Its brass cage ensures smooth operation and reduces friction, even at high speeds up to 6,000 r/min.
With a basic dynamic load rating of 154.0 kN, it handles heavy loads reliably.
The C3 radial internal clearance allows for thermal expansion, making it suitable for varied operating conditions.
What Makes 6319-M-J20AA-C3 Bearing Suitable for High-Temperature Applications?
6319-M-J20AA-C3 Bearing’s ceramic coating withstands high temperatures, maintaining performance in demanding environments.
The brass cage material enhances durability, ensuring long-term reliability under heavy loads.
Its breakdown voltage of ≤3000 V makes it ideal for applications with electrical currents.
With a layer thickness of 200 µm, the coating provides consistent insulation over time.
Built for Reliability: 6319-M-J20AA-C3 Bearing
6319-M-J20AA-C3 Bearing is designed with a ceramic-coated outer ring, offering protection against electrical damage.
The brass cage maintains ball alignment, reducing wear and extending service life.
Its high dynamic load rating of 154.0 kN ensures robust performance in industrial applications.
The C3 clearance accommodates thermal expansion, enhancing operational stability.
Why Choose 6319-M-J20AA-C3 Bearing for Precision Tasks?
6319-M-J20AA-C3 Bearing’s ceramic insulation prevents electrical arcing, ensuring precision in sensitive applications.
The brass cage minimises friction, contributing to smooth and quiet operation.
With a reference speed of 6,000 r/min, it delivers consistent performance at high speeds.
Its electrical resistance of 50MΩ (dry) provides reliable insulation in various conditions.
Industrial Uses of 6319-M-J20AA-C3 Bearing
The 6319-M-J20AA-C3 Bearing is commonly used in industrial motors and generators, where its current-insulating properties prevent electrical damage. Its ceramic coating ensures reliable performance in environments with stray currents.
What Makes 6319-M-J20AA-C3 Bearing a Preferred Choice?
With a brass cage and C3 clearance, 6319-M-J20AA-C3 Bearing handles high loads and speeds in heavy machinery. The insulating layer also makes it ideal for wind turbines and electric vehicles.
Built for Heavy-Duty Use: 6319-M-J20AA-C3 Bearing
This bearing excels in applications like conveyor systems and pumps, thanks to its robust construction. The 200 µm coating provides excellent electrical resistance, even in damp conditions.
Automotive vs Aerospace: Applications of 6319-M-J20AA-C3 Bearing
In automotive systems, 6319-M-J20AA-C3 Bearing supports alternators and starter motors. For aerospace, its high-speed capability and insulation make it suitable for auxiliary power units.
Perfect Fit for Automation: 6319-M-J20AA-C3 Bearing
The 6319-M-J20AA-C3 Bearing is a reliable choice for robotic arms and CNC machines. Its consistent performance and electrical insulation reduce downtime in automated production lines.
