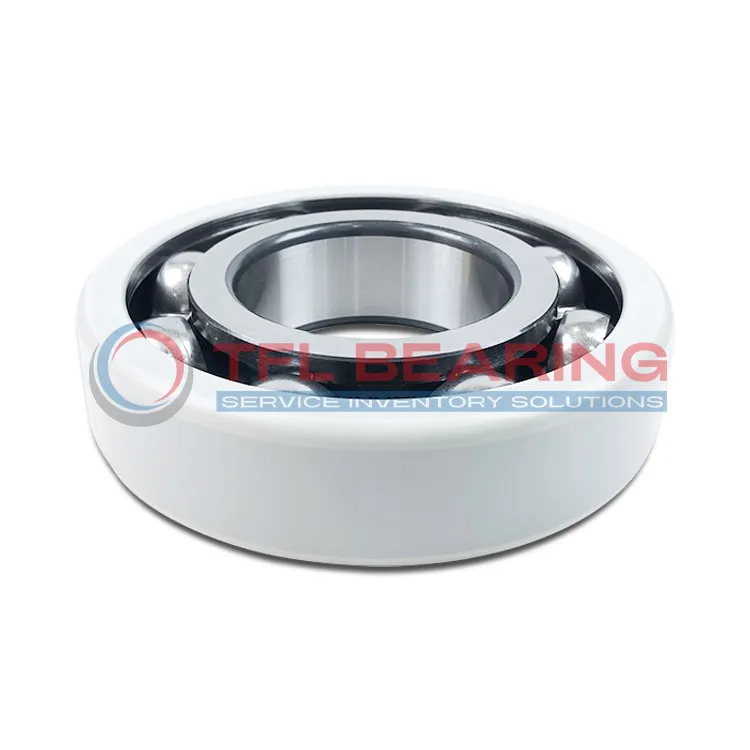

The FAG 6319-J20AA-C3 is a current-insulated bearing with dimensions of 95mm by 200mm by 45mm, featuring a ceramic-coated outer ring. It handles dynamic loads up to 154 kN and static loads up to 113 kN, with a reference speed of 6600 RPM.
The ceramic coating provides insulation, with a breakdown voltage of up to 3000V and high electrical resistance, making it ideal for preventing electrical damage. The C3 radial clearance ensures smooth operation under varying temperatures.
Its sheet metal cage offers durability, while the coating remains effective even in damp conditions (10MΩ resistance). The bearing is RoHS and REACH compliant for safe use.
Perfect for electric motors or generators where electrical currents could cause damage. Weighing 5.842kg, it balances strength and insulation for demanding applications.
"*" indicates required fields
Performance Features of 6319-J20AA-C3 Bearing
6319-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, making it ideal for applications with electrical currents.
The bearing’s dynamic load rating of 154 kN ensures reliable performance under heavy loads.
With a reference speed of 6,600 rpm, it maintains efficiency in high-speed operations.
6319-J20AA-C3 Bearing’s sheet metal cage enhances durability and alignment.
Its C3 radial internal clearance allows for thermal expansion in demanding conditions.
The insulating coating offers a breakdown voltage of up to 3,000 V, ensuring safety.
This makes 6319-J20AA-C3 Bearing suitable for use in damp or dry environments.
Industrial Uses of 6319-J20AA-C3 Bearing
The 6319-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents damage from stray currents. Its ceramic outer ring coating ensures reliable performance in high-voltage environments.
Where Is 6319-J20AA-C3 Bearing Used?
You’ll often find the 6319-J20AA-C3 Bearing in wind turbines and industrial drives, thanks to its ability to handle both dynamic loads and electrical insulation. The C3 clearance makes it suitable for applications with thermal expansion.
Built for Heavy-Duty Use: 6319-J20AA-C3 Bearing
This bearing excels in heavy machinery like compressors and pumps, where its sheet metal cage provides durability. The high breakdown voltage ensures safety in electrically demanding conditions.
Automotive vs Aerospace: Applications of 6319-J20AA-C3 Bearing
In automotive systems, the 6319-J20AA-C3 Bearing is used in hybrid vehicle motors, while aerospace applications benefit from its insulation in avionics. The consistent performance makes it versatile across industries.
Perfect Fit for Automation: 6319-J20AA-C3 Bearing
The 6319-J20AA-C3 Bearing is ideal for robotic arms and automated production lines, where precision and electrical insulation are key. Its high-speed capability ensures smooth operation in fast-paced environments.
