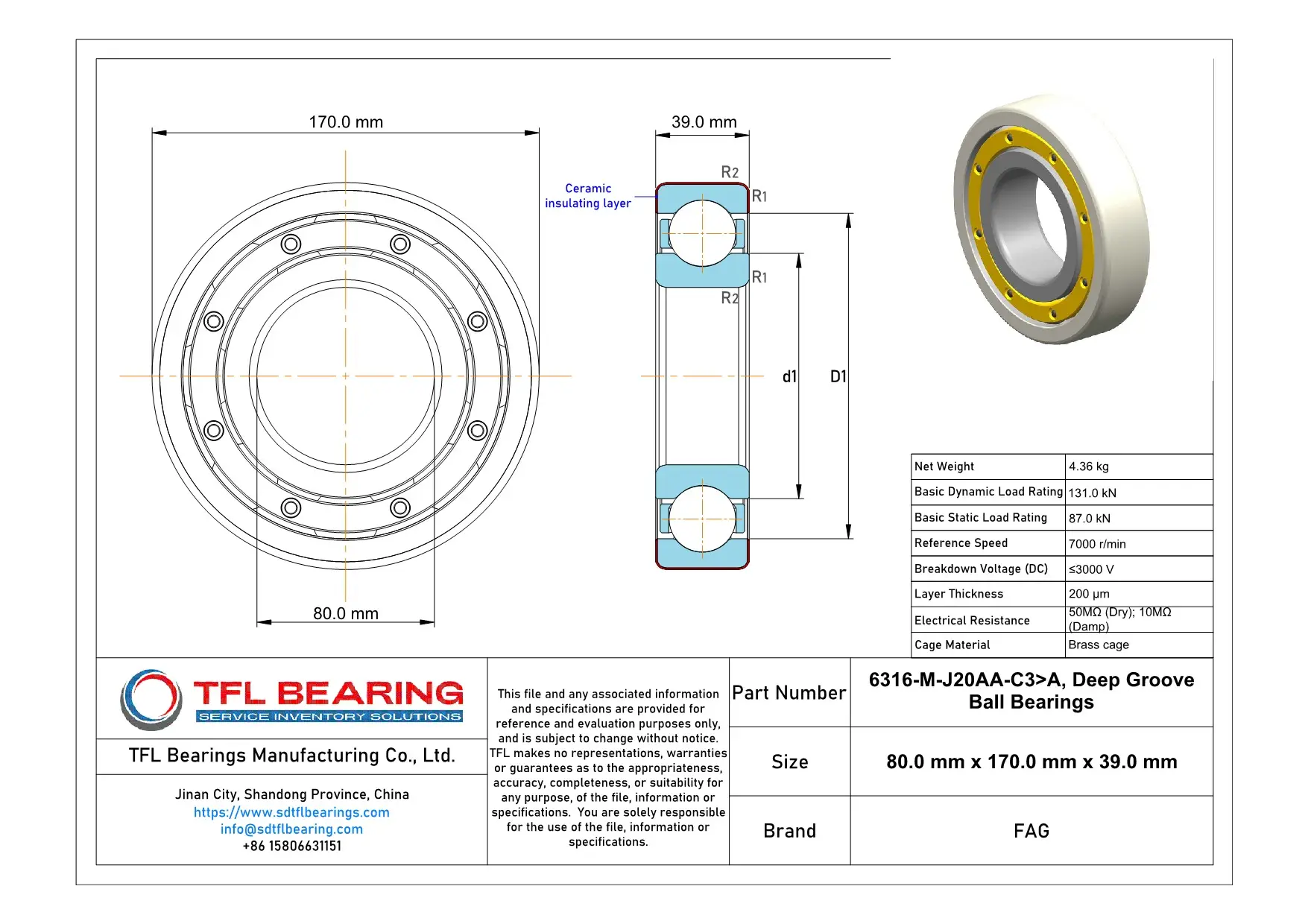

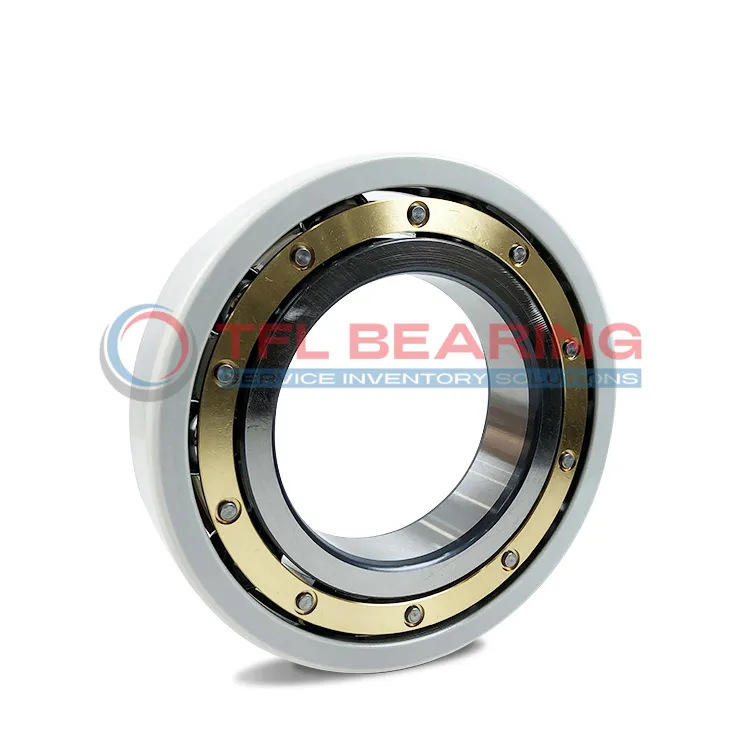

The FAG 6316-M-J20AA-C3>A is a current-insulated bearing with an 80mm bore and 170mm outer diameter, designed to prevent electrical damage. Its outer ring features a ceramic coating, providing insulation up to 3000V.
With a dynamic load rating of 131kN and a static load rating of 87kN, it handles heavy loads while maintaining smooth operation. The brass cage ensures durability, and the C3 radial clearance allows for thermal expansion.
This bearing is ideal for electric motors or generators where electrical currents could cause damage. It operates well in damp conditions, maintaining a resistance of 10MΩ.
Weighing 4.36kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a reliable choice for demanding applications.
"*" indicates required fields
How Is 6316-M-J20AA-C3>A Bearing Engineered for Reliability?
6316-M-J20AA-C3>A Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
The brass cage ensures smooth operation and reduces friction, even at high speeds up to 7,000 r/min.
With a basic dynamic load rating of 131.0 kN, it handles heavy loads reliably.
The C3 radial internal clearance allows for thermal expansion in demanding applications.
Its breakdown voltage of ≤3000 V makes it suitable for environments with electrical currents.
The coating maintains high electrical resistance, even in damp conditions.
Designed for durability, 6316-M-J20AA-C3>A Bearing offers long service life with minimal maintenance.
Its robust construction ensures consistent performance in various industrial settings.
Industrial Uses of 6316-M-J20AA-C3>A Bearing
This bearing is commonly used in electric motors and generators, where its ceramic coating prevents electrical arcing. The brass cage ensures smooth rotation even under high-speed conditions.
Where Is 6316-M-J20AA-C3>A Bearing Used?
You’ll find it in wind turbines and industrial drives, where insulation against stray currents is essential. Its C3 clearance allows for thermal expansion in demanding environments.
Built for Heavy-Duty Use: 6316-M-J20AA-C3>A Bearing
With a dynamic load rating of 131 kN, it handles heavy loads in mining equipment and large conveyors. The 200 µm coating provides reliable insulation in damp conditions too.
Automotive vs Aerospace: Applications of 6316-M-J20AA-C3>A Bearing
In automotive alternators, it prevents current leakage, while in aerospace systems, its lightweight design and insulation are key. The 7000 r/min speed rating suits both fields well.
Perfect Fit for Automation: 6316-M-J20AA-C3>A Bearing
It’s ideal for robotic arms and CNC machines, where electrical isolation ensures precision. The 39 mm width fits compact spaces without compromising performance.
