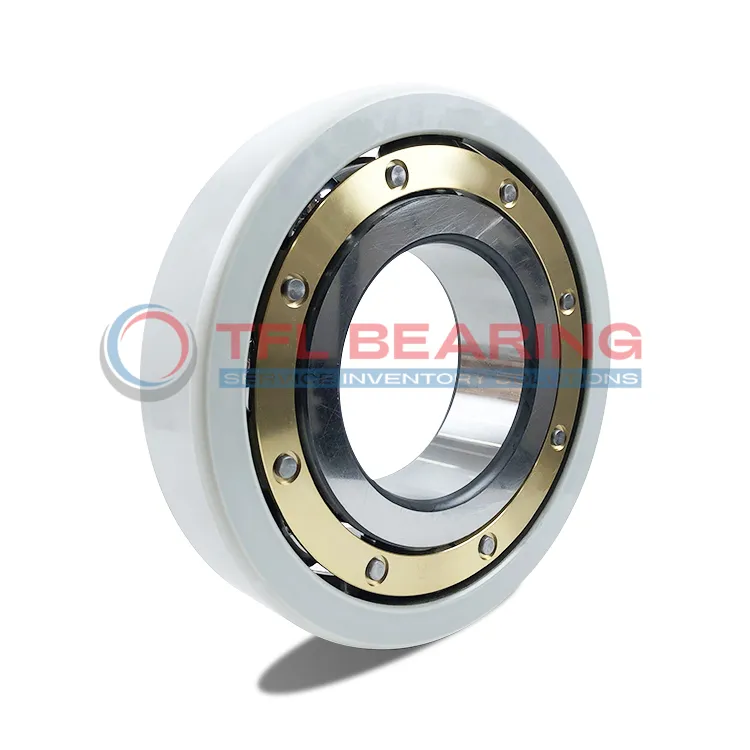

The FAG 6314-M-J20AB-C4 is a current-insulated bearing with a 70mm bore and 150mm outer diameter, designed to prevent electrical damage. Its outer ring features a ceramic coating, providing insulation up to 500V DC.
With a dynamic load rating of 104kN and a static load rating of 68kN, it handles heavy loads while spinning smoothly at speeds up to 8800 RPM. The brass cage ensures durability and reduces friction.
The C4 radial clearance allows for thermal expansion, making it suitable for high-speed applications. It’s ideal for electric motors or generators where electrical currents could cause damage.
Weighing 2.992kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial use.
"*" indicates required fields
How Is 6314-M-J20AB-C4 Bearing Engineered for Reliability?
6314-M-J20AB-C4 Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
Its breakdown voltage of up to 500V prevents current damage, making it ideal for electric motors.
The brass cage ensures smooth operation and reduces friction, even at high speeds.
With a dynamic load rating of 104 kN, it handles heavy loads reliably.
What Makes 6314-M-J20AB-C4 Bearing Suitable for High-Temperature Applications?
6314-M-J20AB-C4 Bearing’s ceramic coating withstands high temperatures, maintaining performance in demanding conditions.
The brass cage and C4 radial clearance allow for thermal expansion, ensuring consistent operation.
Its electrical resistance remains stable, even in damp environments, preventing current leakage.
With a reference speed of 8,800 r/min, it delivers efficient performance under stress.
Designed for Durability: 6314-M-J20AB-C4 Bearing
6314-M-J20AB-C4 Bearing’s ceramic-coated outer ring resists wear, extending its service life.
The robust brass cage keeps the balls aligned, reducing friction and noise.
Its high static load rating of 68 kN ensures reliability in heavy-duty applications.
The C4 clearance accommodates thermal expansion, preventing premature failure.
Steel vs Ceramic Bearings: Strengths of 6314-M-J20AB-C4 Bearing
6314-M-J20AB-C4 Bearing combines steel’s strength with ceramic’s insulating properties for superior performance.
The ceramic coating prevents electrical arcing, protecting the bearing in motor applications.
Its brass cage enhances durability, making it suitable for high-speed operations.
With a layer thickness of 100 µm, the coating ensures long-term insulation reliability.
Industrial Uses of 6314-M-J20AB-C4 Bearing
6314-M-J20AB-C4 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent electrical damage. The ceramic coating on the outer ring ensures reliable performance in high-voltage environments.
In wind turbine applications, 6314-M-J20AB-C4 Bearing handles both radial and axial loads while resisting electrical arcing. Its brass cage adds durability, making it suitable for long-term use in harsh conditions.
For industrial pumps, 6314-M-J20AB-C4 Bearing’s C4 clearance allows for thermal expansion, ensuring smooth operation. The high breakdown voltage makes it a safe choice for electrically demanding setups.
What Makes 6314-M-J20AB-C4 Bearing a Preferred Choice?
6314-M-J20AB-C4 Bearing stands out in conveyor systems due to its ability to withstand electrical currents. The 100 µm ceramic layer provides excellent insulation without compromising load capacity.
In railway applications, 6314-M-J20AB-C4 Bearing’s high dynamic load rating ensures reliability under constant vibration. Its damp electrical resistance of 10MΩ makes it ideal for humid environments.
For machine tools, 6314-M-J20AB-C4 Bearing’s reference speed of 8800 r/min supports high-speed operations. The compliance with ROHS and REACH standards adds to its environmental safety.
Built for Heavy-Duty Use: 6314-M-J20AB-C4 Bearing
6314-M-J20AB-C4 Bearing excels in steel mills, where its static load rating of 68.0 kN handles intense pressure. The ceramic coating prevents current leakage, protecting sensitive equipment.
In mining machinery, 6314-M-J20AB-C4 Bearing’s brass cage resists wear from abrasive particles. Its wide temperature range ensures performance in both hot and cold conditions.
For paper production lines, 6314-M-J20AB-C4 Bearing’s C4 clearance accommodates shaft misalignment. The 35 mm width provides stability in high-load scenarios.
Automotive vs Aerospace: Applications of 6314-M-J20AB-C4 Bearing
In automotive alternators, 6314-M-J20AB-C4 Bearing prevents electrical damage from stray currents. Its 70 mm bore fits standard shafts, simplifying installation.
For aerospace actuators, 6314-M-J20AB-C4 Bearing’s lightweight design (2.992 kg) reduces overall system weight. The high reference speed suits rapid movement requirements.
In hybrid vehicles, 6314-M-J20AB-C4 Bearing’s insulation properties protect against regenerative braking currents. The 150 mm outer diameter offers ample surface area for heat dissipation.
Perfect Fit for Automation: 6314-M-J20AB-C4 Bearing
6314-M-J20AB-C4 Bearing is ideal for robotic arms, where its electrical insulation prevents signal interference. The 104.0 kN dynamic load rating ensures longevity in repetitive motions.
In packaging machines, 6314-M-J20AB-C4 Bearing’s damp resistance (10MΩ) maintains performance despite humidity. Its brass cage reduces friction, enhancing energy efficiency.
For CNC equipment, 6314-M-J20AB-C4 Bearing’s C4 clearance minimises vibration during precision cuts. The ceramic coating adds an extra layer of protection against electrical faults.
