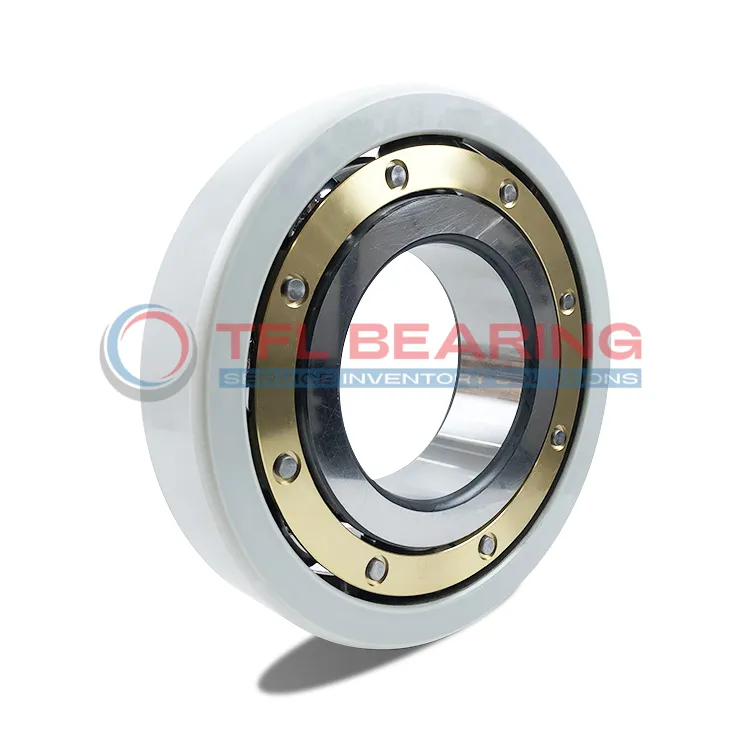

The FAG 6314-M-J20AA-C3 is a current-insulated bearing with a 70mm bore and 150mm outer diameter, featuring a ceramic-coated outer ring for electrical insulation. It handles dynamic loads up to 104 kN and spins smoothly at speeds up to 8800 RPM.
Its brass cage ensures durability, while the C3 radial clearance allows for thermal expansion in demanding conditions. The coating provides high electrical resistance, with breakdown voltage up to 3000V.
This bearing is ideal for electric motors or generators where current leakage must be prevented. Its compact 35mm width and 2.968kg weight make it easy to integrate into various setups.
Compliant with RoHS and REACH standards, it’s a reliable choice for industrial applications requiring both mechanical performance and electrical safety. The 200µm coating thickness ensures long-term insulation even in damp conditions.
"*" indicates required fields
How Is 6314-M-J20AA-C3 Bearing Engineered for Reliability?
6314-M-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent insulation against electrical currents.
Its brass cage ensures smooth operation and reduces friction, even at high speeds up to 8,800 r/min.
With a basic dynamic load rating of 104.0 kN, it handles heavy loads reliably.
The C3 radial internal clearance allows for thermal expansion, making it suitable for varied operating conditions.
What Makes 6314-M-J20AA-C3 Bearing Suitable for High-Temperature Applications?
6314-M-J20AA-C3 Bearing’s ceramic coating withstands high temperatures, maintaining performance in demanding environments.
The brass cage material enhances durability, ensuring long service life under heavy loads.
With a breakdown voltage of ≤3000 V, it prevents electrical damage in industrial applications.
Its electrical resistance remains stable, even in damp conditions, offering reliable insulation.
Designed for Durability: 6314-M-J20AA-C3 Bearing
6314-M-J20AA-C3 Bearing is built with a robust ceramic-coated outer ring, resisting wear and electrical currents.
The brass cage minimises friction, supporting smooth rotation at high speeds.
Its C3 clearance accommodates thermal expansion, ensuring consistent performance.
With a static load rating of 68.0 kN, it delivers reliable strength for industrial use.
Steel vs Ceramic Bearings: Strengths of 6314-M-J20AA-C3 Bearing
6314-M-J20AA-C3 Bearing combines ceramic coating with steel construction, offering superior electrical insulation.
The brass cage reduces noise and vibration, enhancing operational smoothness.
Its high dynamic load rating of 104.0 kN ensures durability in heavy-duty applications.
The coating provides consistent electrical resistance, even in challenging environments.
Industrial Uses of 6314-M-J20AA-C3 Bearing
6314-M-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent damage from stray currents. The ceramic coating on the outer ring ensures reliable performance in high-voltage environments.
Where Is 6314-M-J20AA-C3 Bearing Used?
You’ll often find 6314-M-J20AA-C3 Bearing in wind turbines and industrial drives, where electrical insulation is crucial. Its brass cage and C3 clearance make it suitable for applications with varying thermal expansion.
Built for Heavy-Duty Use: 6314-M-J20AA-C3 Bearing
6314-M-J20AA-C3 Bearing handles heavy loads in machinery like pumps and compressors, thanks to its robust design. The 200 µm ceramic coating provides long-lasting protection against electrical wear.
Automotive vs Aerospace: Applications of 6314-M-J20AA-C3 Bearing
In automotive systems, 6314-M-J20AA-C3 Bearing is used in hybrid vehicle motors, where insulation is key. For aerospace, it’s found in auxiliary power units, offering both durability and electrical safety.
Perfect Fit for Automation: 6314-M-J20AA-C3 Bearing
6314-M-J20AA-C3 Bearing works well in robotic arms and automated production lines, ensuring smooth operation. Its high dynamic load rating of 104 kN makes it dependable for continuous use.
