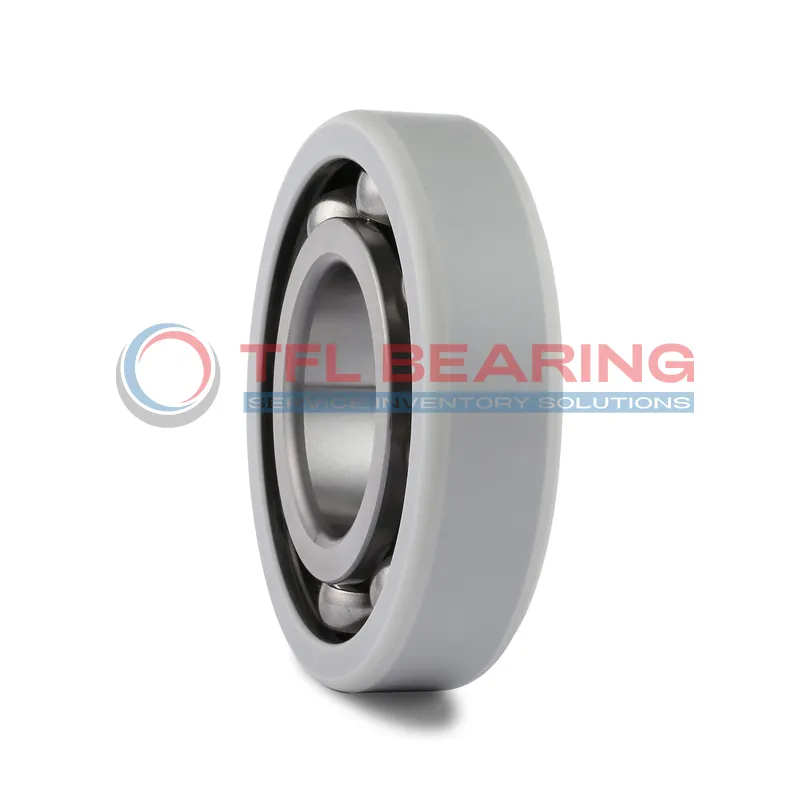

The FAG 6313-J20AA-C3 is a current-insulated bearing with dimensions of 65mm bore, 140mm outer diameter, and 33mm width. It features a ceramic coating on the outer ring to prevent electrical currents from damaging the bearing.
With a dynamic load rating of 97.5 kN and a static load rating of 60 kN, it handles heavy loads while spinning smoothly at speeds up to 7300 RPM. The C3 radial clearance allows for thermal expansion in demanding conditions.
The ceramic insulation provides high electrical resistance, with a breakdown voltage of up to 3000V, making it ideal for electric motors or generators. Its sheet metal cage ensures durability and consistent performance.
Weighing 2.14kg, this bearing is RoHS and REACH compliant, suitable for industrial applications where electrical insulation is crucial.
"*" indicates required fields
How Is 6313-J20AA-C3 Bearing Engineered for Reliability?
6313-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent insulation against electrical currents.
The coating offers a breakdown voltage of up to 3000 V, ensuring safe operation in electrically charged environments.
With a basic dynamic load rating of 97.5 kN, it handles heavy loads while maintaining performance.
The C3 radial internal clearance allows for thermal expansion, enhancing durability in varying conditions.
Its sheet metal cage ensures smooth operation at high speeds, up to 7300 r/min.
The 200 µm layer thickness and high electrical resistance make it reliable even in damp environments.
Designed for longevity, 6313-J20AA-C3 Bearing reduces maintenance needs and operational costs.
Its robust construction and insulation properties make it ideal for industrial applications.
Industrial Uses of 6313-J20AA-C3 Bearing
The 6313-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent damage from stray currents. Its ceramic coating ensures reliable performance in high-voltage environments.
In wind turbines, 6313-J20AA-C3 Bearing helps manage electrical currents that can cause premature wear. The C3 clearance allows for thermal expansion, making it suitable for variable load conditions.
For industrial pumps, 6313-J20AA-C3 Bearing’s sheet metal cage provides stability under heavy loads. Its high dynamic load rating ensures long service life even in demanding applications.
Automotive Applications of 6313-J20AA-C3 Bearing
In hybrid and electric vehicles, 6313-J20AA-C3 Bearing supports components like traction motors, where electrical insulation is critical. The 140 mm outer diameter fits standard motor housings perfectly.
The bearing’s 33 mm width makes it compact enough for tight spaces in automotive systems. Its high reference speed of 7300 r/min ensures smooth operation at various RPMs.
Medical Equipment and 6313-J20AA-C3 Bearing
For MRI machines, 6313-J20AA-C3 Bearing’s insulating properties prevent interference with sensitive imaging systems. The ceramic coating also resists corrosion in sterile environments.
Its 65 mm bore diameter is ideal for precision medical devices requiring consistent rotation. The bearing’s damp electrical resistance of 10MΩ ensures safety in humid conditions.
Automation Systems with 6313-J20AA-C3 Bearing
In robotic arms, 6313-J20AA-C3 Bearing handles both radial and axial loads with ease. The C3 clearance accommodates misalignment during high-speed movements.
The bearing’s 2.14 kg weight strikes a balance between durability and ease of integration. Its breakdown voltage of ≤3000 V makes it reliable for automated systems with electrical components.
Consumer Electronics Featuring 6313-J20AA-C3 Bearing
For high-performance fans, 6313-J20AA-C3 Bearing offers quiet operation and long life. The 200 µm layer thickness ensures consistent insulation over time.
Its 97.5 kN dynamic load rating makes it robust enough for heavy-duty home appliances. The ROHS compliance also meets environmental standards for consumer products.
