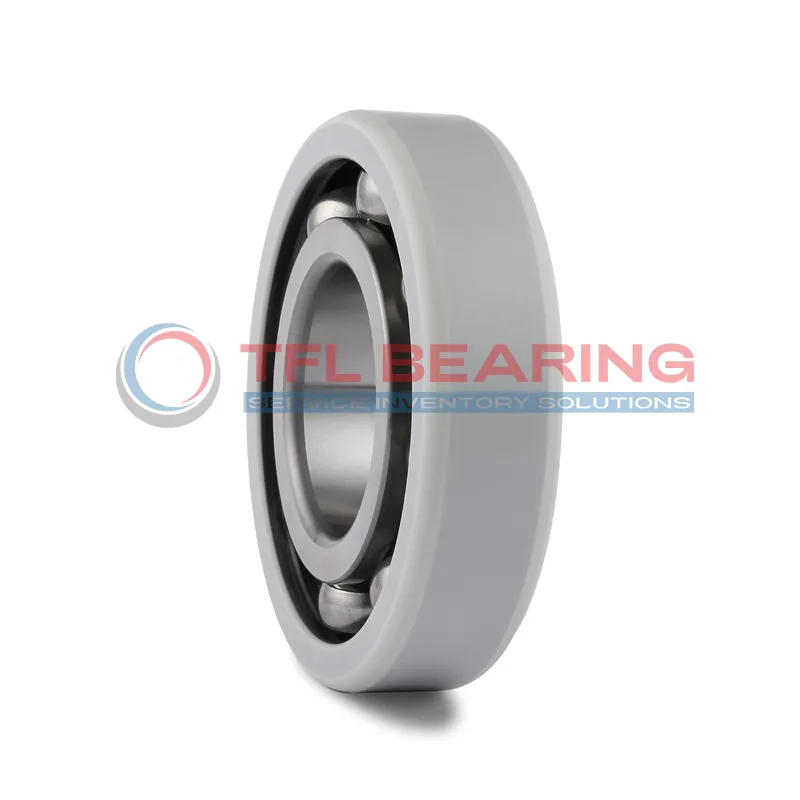

The FAG 6310-J20AA-C3 is a current-insulated bearing with a 50mm bore and 110mm outer diameter, designed to prevent electrical damage. Its outer ring features a ceramic coating, providing insulation up to 3000V.
With a dynamic load rating of 68kN and a static load rating of 38.5kN, it handles heavy loads while maintaining smooth operation. The bearing can reach speeds up to 9500 RPM, making it suitable for high-performance applications.
The sheet metal cage ensures durability, while the C3 radial clearance allows for thermal expansion. It weighs 1.09kg and complies with RoHS and REACH standards.
Ideal for electric motors or generators where electrical currents could cause damage, this bearing offers reliable protection and long service life. Its insulation remains effective even in damp conditions.
"*" indicates required fields
How Is 6310-J20AA-C3 Bearing Engineered for Reliability?
6310-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent insulation against electrical currents.
Its breakdown voltage of up to 3000 V ensures protection in high-voltage environments.
The sheet metal cage maintains ball alignment, enhancing durability and reducing friction.
With a dynamic load rating of 68.0 kN, it delivers reliable performance under heavy loads.
What Makes 6310-J20AA-C3 Bearing Suitable for High-Temperature Applications?
6310-J20AA-C3 Bearing’s ceramic coating withstands high temperatures, ensuring stable operation in demanding conditions.
The C3 radial internal clearance allows for thermal expansion, preventing premature wear.
Its reference speed of 9500 r/min ensures efficient performance in high-speed applications.
The bearing’s electrical resistance remains effective even in damp environments.
Built for Reliability: 6310-J20AA-C3 Bearing
6310-J20AA-C3 Bearing is designed with a robust sheet metal cage, ensuring long-term stability.
The ceramic-coated outer ring prevents electrical arcing, extending the bearing’s service life.
With a basic static load rating of 38.5 kN, it handles heavy loads with ease.

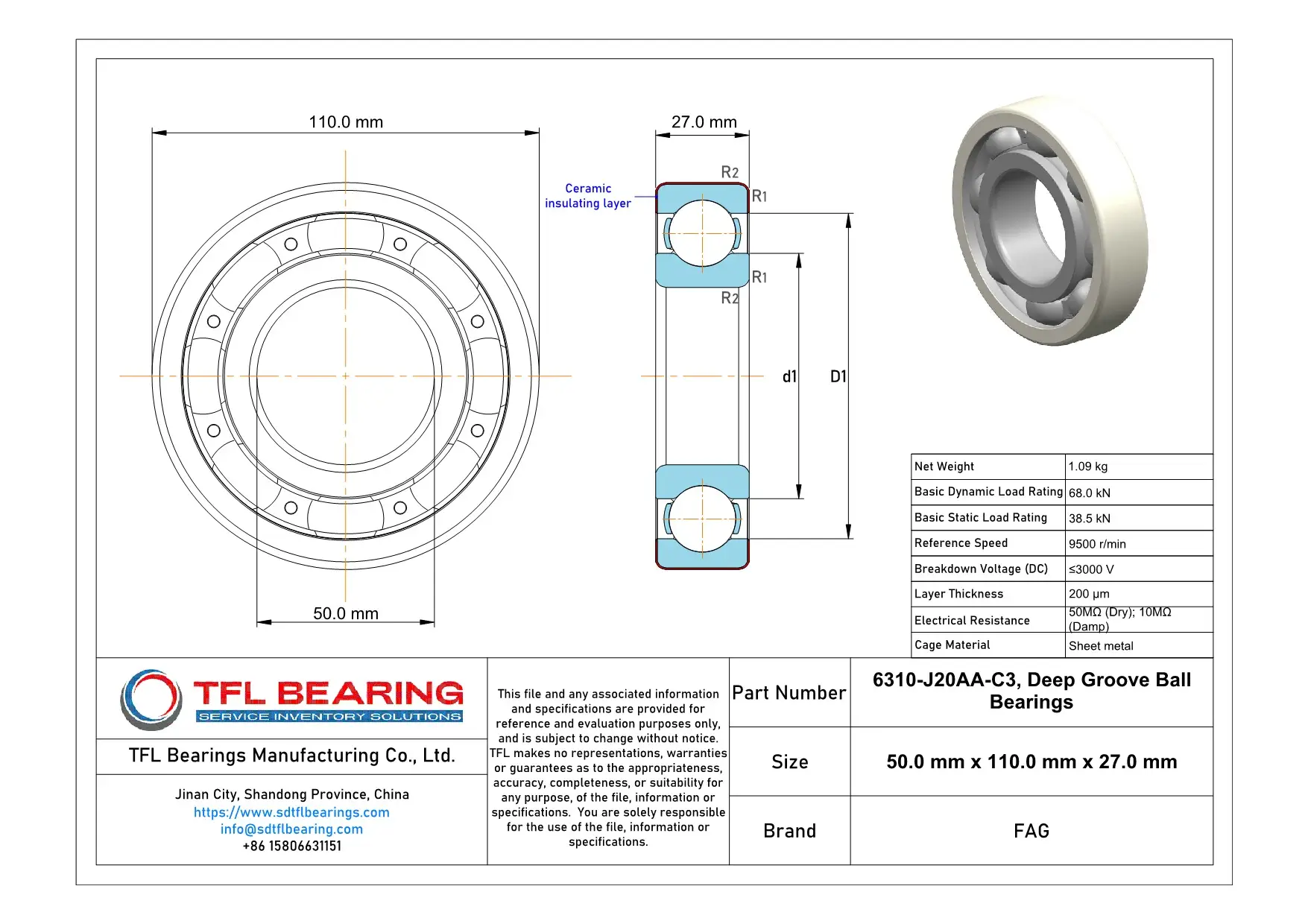

Its compact design (50.0 mm x 110.0 mm x 27.0 mm) fits seamlessly into various applications.
Steel vs Ceramic Bearings: Strengths of 6310-J20AA-C3 Bearing
6310-J20AA-C3 Bearing combines the strength of steel with the insulation properties of ceramic coating.
The outer ring’s 200 µm ceramic layer ensures reliable electrical isolation.
Its dynamic load capacity of 68.0 kN makes it suitable for heavy-duty machinery.
The bearing maintains high electrical resistance, even in challenging environments.
Industrial Uses of 6310-J20AA-C3 Bearing
The 6310-J20AA-C3 Bearing is commonly used in electric motors and generators, where its ceramic coating prevents electrical arcing. This makes it ideal for industries relying on high-voltage equipment.
In wind turbines, 6310-J20AA-C3 Bearing handles both radial and axial loads while resisting electrical damage. Its C3 clearance ensures reliable performance under varying thermal conditions.
For railway applications, 6310-J20AA-C3 Bearing’s insulation properties protect against stray currents. The sheet metal cage adds durability in high-vibration environments.
What Makes 6310-J20AA-C3 Bearing a Preferred Choice?
6310-J20AA-C3 Bearing is a go-to for conveyor systems in mining, where electrical insulation and heavy loads are key. Its 68 kN dynamic load rating ensures long service life.
In industrial pumps, 6310-J20AA-C3 Bearing’s damp resistance (10MΩ) maintains performance even in humid conditions. The 9500 r/min speed rating suits high-RPM applications.
Built for Heavy-Duty Use: 6310-J20AA-C3 Bearing
6310-J20AA-C3 Bearing excels in steel mills, where heat and electrical interference are common. The 200 µm coating thickness provides consistent insulation.
For food processing equipment, 6310-J20AA-C3 Bearing’s ROHS compliance ensures safety. Its 27 mm width fits compact designs without sacrificing load capacity.
Automotive vs Aerospace: Applications of 6310-J20AA-C3 Bearing
In hybrid vehicles, 6310-J20AA-C3 Bearing prevents current leakage in electric drivetrains. The 50 mm bore suits standard motor shafts.
For aircraft auxiliary systems, 6310-J20AA-C3 Bearing’s lightweight (1.09 kg) and high-speed capability are advantages. The C3 clearance accommodates thermal expansion at altitude.
