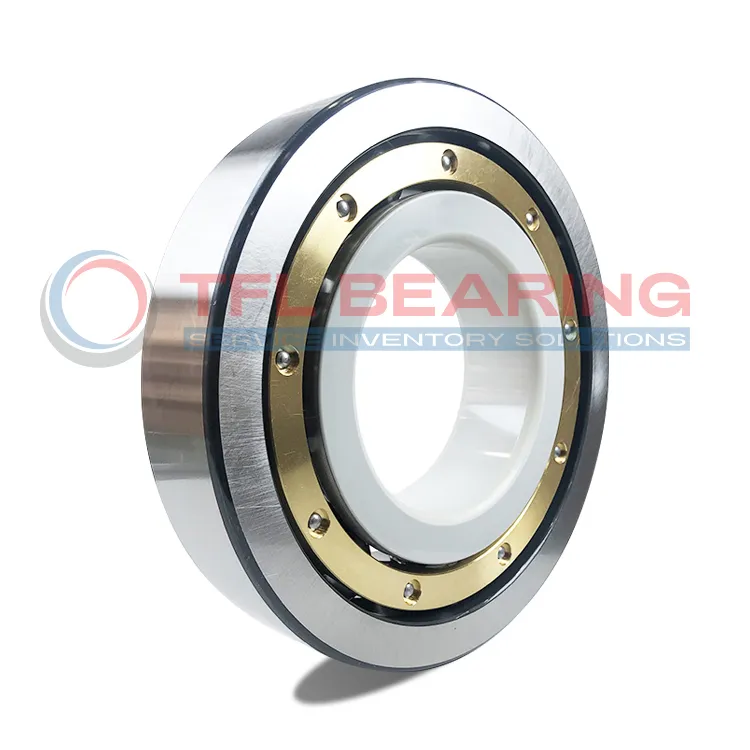

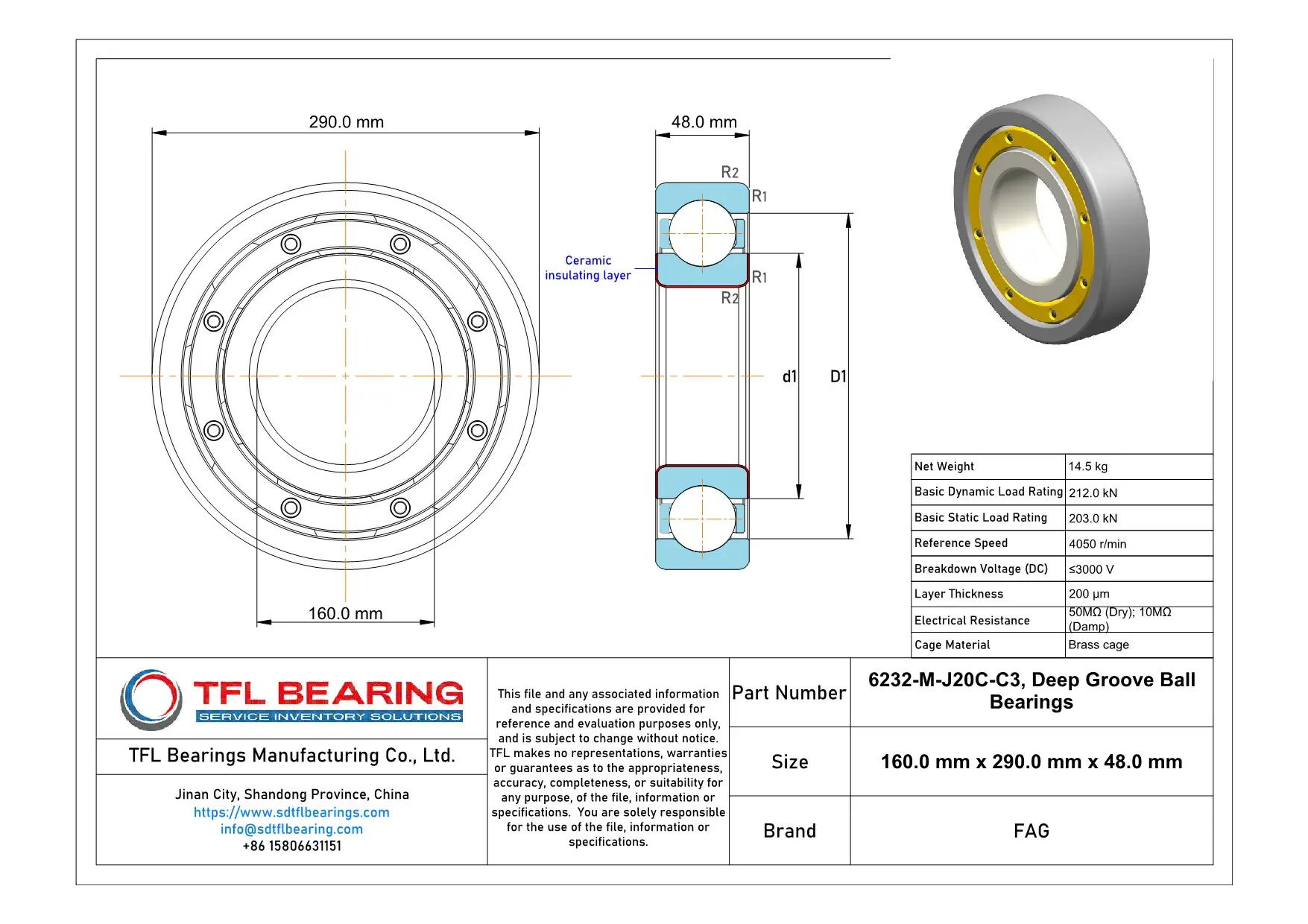

The FAG 6232-M-J20C-C3 is a current-insulated bearing with a 160mm bore and 290mm outer diameter, designed to prevent electrical damage. Its inner ring features a ceramic coating, providing insulation up to 3000V.
With a dynamic load rating of 212kN and a static load rating of 203kN, it handles heavy loads while maintaining smooth operation. The brass cage ensures durability, and the C3 clearance allows for thermal expansion.
The bearing is ideal for electric motors or generators where electrical currents could cause damage. It weighs 14.5kg and complies with RoHS and REACH standards for safe use.
Its insulating properties remain effective even in damp conditions, with an electrical resistance of 10MΩ. Suitable for high-speed applications up to 4050 r/min.
"*" indicates required fields
How Is 6232-M-J20C-C3 Bearing Engineered for Reliability?
6232-M-J20C-C3 Bearing features an inner ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, reducing the risk of damage in electrically active environments.
The brass cage ensures smooth operation and durability under high-speed conditions.
With a reference speed of 4050 r/min, it maintains performance in demanding applications.
6232-M-J20C-C3 Bearing’s C3 radial internal clearance allows for thermal expansion, enhancing longevity.
Its basic dynamic load rating of 212.0 kN ensures reliable handling of heavy loads.
The insulating coating offers high electrical resistance, even in damp conditions.
This makes 6232-M-J20C-C3 Bearing suitable for use in various industrial settings.
Industrial Uses of 6232-M-J20C-C3 Bearing
The 6232-M-J20C-C3 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent damage from stray currents. Its brass cage and ceramic coating ensure reliable performance in high-voltage environments.
What Makes 6232-M-J20C-C3 Bearing a Preferred Choice?
With a dynamic load rating of 212 kN, 6232-M-J20C-C3 Bearing handles heavy loads in industrial gearboxes and wind turbines. The C3 clearance allows for thermal expansion, making it suitable for variable-speed applications.
Perfect Fit for Automation: 6232-M-J20C-C3 Bearing
In robotic systems, 6232-M-J20C-C3 Bearing’s high reference speed of 4050 r/min supports precise, rapid movements. The ceramic-coated inner ring reduces electrical arcing, extending service life in automated production lines.
Medical vs Industrial: Where 6232-M-J20C-C3 Bearing Excels
While not typically used in medical devices, 6232-M-J20C-C3 Bearing shines in industrial settings like CNC machines. Its damp electrical resistance of 10MΩ ensures stability in humid or coolant-exposed environments.
How Does 6232-M-J20C-C3 Bearing Support High-Speed Operations?
The 6232-M-J20C-C3 Bearing’s balanced design minimises vibration at speeds up to 4050 r/min, ideal for spindle applications. Its 200µm ceramic layer provides consistent insulation even under rapid thermal changes.
