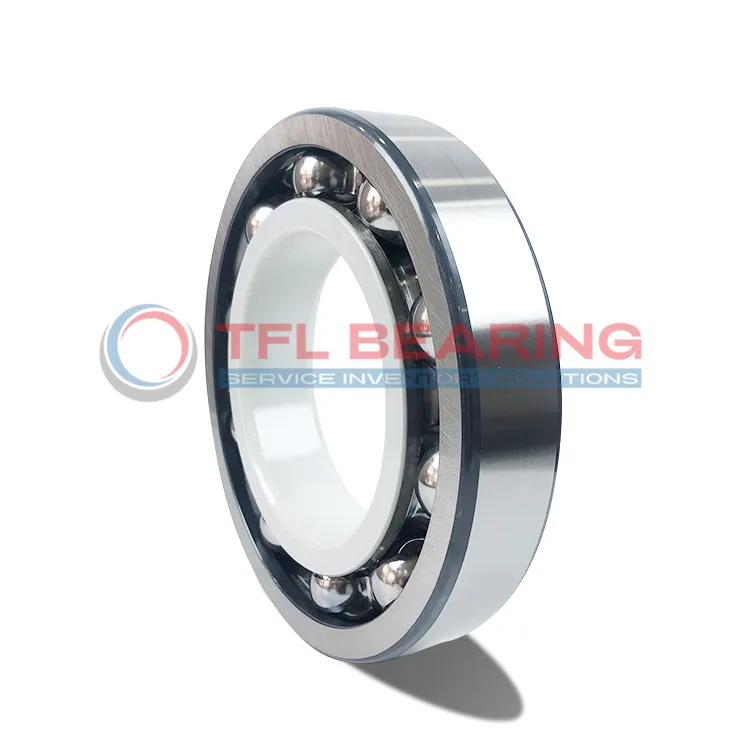

The FAG 6228-J20C-C3 is a current-insulated bearing with a 140mm bore and 250mm outer diameter, designed to prevent electrical damage. Its inner ring features a ceramic coating, providing insulation up to 3000V.
With a dynamic load rating of 188kN and a static load rating of 165kN, it handles heavy loads while maintaining smooth operation. The bearing can reach speeds up to 3600 RPM, making it suitable for high-performance applications.
The sheet metal cage ensures durability, while the C3 radial clearance allows for thermal expansion. It weighs 8kg and complies with RoHS and REACH standards for environmental safety.
Ideal for electric motors or generators, this bearing protects against current leakage in damp or dry conditions, with electrical resistance of 50MΩ when dry and 10MΩ when damp.
"*" indicates required fields
How Is 6228-J20C-C3 Bearing Engineered for Reliability?
6228-J20C-C3 Bearing features an inner ring ceramic coating, providing excellent electrical insulation with a breakdown voltage of up to 3000 V.
The sheet metal cage ensures smooth operation and maintains ball alignment under high speeds.
With a basic dynamic load rating of 188.0 kN, it handles heavy loads while maintaining performance.
Its C3 radial internal clearance allows for thermal expansion, making it suitable for various industrial applications.
Industrial Uses of 6228-J20C-C3 Bearing
The 6228-J20C-C3 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent damage from stray currents. Its ceramic-coated inner ring ensures reliable performance in high-voltage environments.
Where Is 6228-J20C-C3 Bearing Used?
You’ll often find the 6228-J20C-C3 Bearing in wind turbines and industrial pumps, where electrical insulation is crucial. The C3 clearance allows for better thermal expansion handling in demanding conditions.
Built for Heavy-Duty Use: 6228-J20C-C3 Bearing
This bearing excels in conveyor systems and heavy machinery, thanks to its robust dynamic load rating of 188 kN. The sheet metal cage provides durability while maintaining smooth operation.
Medical vs Industrial: Where 6228-J20C-C3 Bearing Excels
While not typical for medical devices, the 6228-J20C-C3 Bearing shines in industrial settings like CNC machines. Its high breakdown voltage makes it ideal for equipment prone to electrical interference.
Perfect Fit for Automation: 6228-J20C-C3 Bearing
In robotic arms and automated production lines, the 6228-J20C-C3 Bearing offers precise movement with minimal electrical risk. The damp resistance rating ensures performance even in humid environments.
