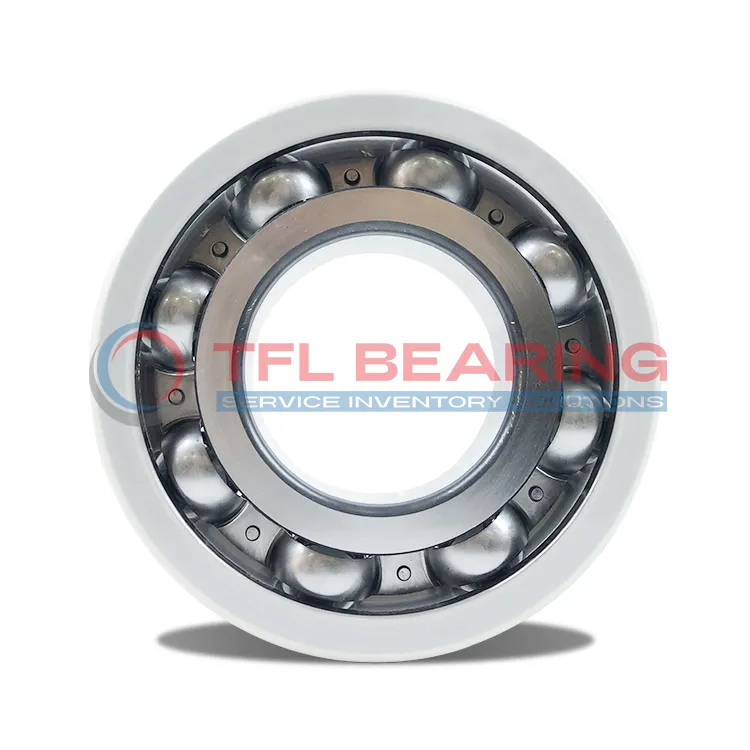

The FAG 6226-J20AA-C3 is a current-insulated bearing with a 130mm bore and 230mm outer diameter, designed to prevent electrical damage. Its outer ring features a ceramic coating, providing insulation up to 3000V.
This model handles dynamic loads up to 177kN and operates smoothly at speeds up to 3850 RPM. The C3 radial clearance ensures reliable performance under varying temperatures.
The sheet metal cage offers durability, while the coating maintains high electrical resistance (50MΩ dry, 10MΩ damp). It’s ideal for electric motors or generators where stray currents are a concern.
Weighing 5.963kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a safe choice for demanding environments.
"*" indicates required fields
How Is 6226-J20AA-C3 Bearing Engineered for Reliability?
6226-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, protecting the bearing from electrical damage.
With a basic dynamic load rating of 177.0 kN, it handles heavy loads efficiently.
The C3 radial internal clearance ensures smooth operation under various conditions.
The sheet metal cage maintains ball alignment, reducing wear and extending lifespan.
Its reference speed of 3850 r/min makes it suitable for high-speed applications.
6226-J20AA-C3 Bearing’s breakdown voltage of ≤3000 V ensures safety in electrical environments.
The coating maintains high resistance, even in damp conditions.
Industrial Uses of 6226-J20AA-C3 Bearing
The 6226-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent electrical damage. Its ceramic-coated outer ring ensures reliable performance in environments with stray currents.
In wind turbines, 6226-J20AA-C3 Bearing handles high dynamic loads while maintaining electrical insulation. The C3 clearance allows for thermal expansion, making it suitable for variable operating conditions.
For railway applications, 6226-J20AA-C3 Bearing’s robust design supports traction motors, where both mechanical and electrical reliability are essential. The sheet metal cage provides durability under continuous vibration.
Where Is 6226-J20AA-C3 Bearing Used?
You’ll often find 6226-J20AA-C3 Bearing in industrial pumps, where its insulation protects against electrolytic corrosion. The high breakdown voltage ensures safety in wet or humid conditions.
In conveyor systems, 6226-J20AA-C3 Bearing’s C3 clearance accommodates misalignment, reducing wear over time. Its dry electrical resistance of 50MΩ makes it ideal for static-prone environments.
Built for Heavy-Duty Use: 6226-J20AA-C3 Bearing
The 6226-J20AA-C3 Bearing excels in steel mills, where its insulation withstands high temperatures and electrical interference. The 177 kN dynamic load rating ensures long service life.
For mining equipment, 6226-J20AA-C3 Bearing’s damp resistance of 10MΩ prevents failures in harsh, moisture-rich conditions. Its 230 mm outer diameter provides stability under heavy loads.
Automotive vs Aerospace: Applications of 6226-J20AA-C3 Bearing
In electric vehicles, 6226-J20AA-C3 Bearing supports traction motors, combining insulation with high-speed capability. The 3850 r/min reference speed meets demanding automotive standards.
For aerospace ground equipment, 6226-J20AA-C3 Bearing’s lightweight design (5.963 kg) reduces energy consumption. The ceramic coating ensures reliability in electrically sensitive applications.
