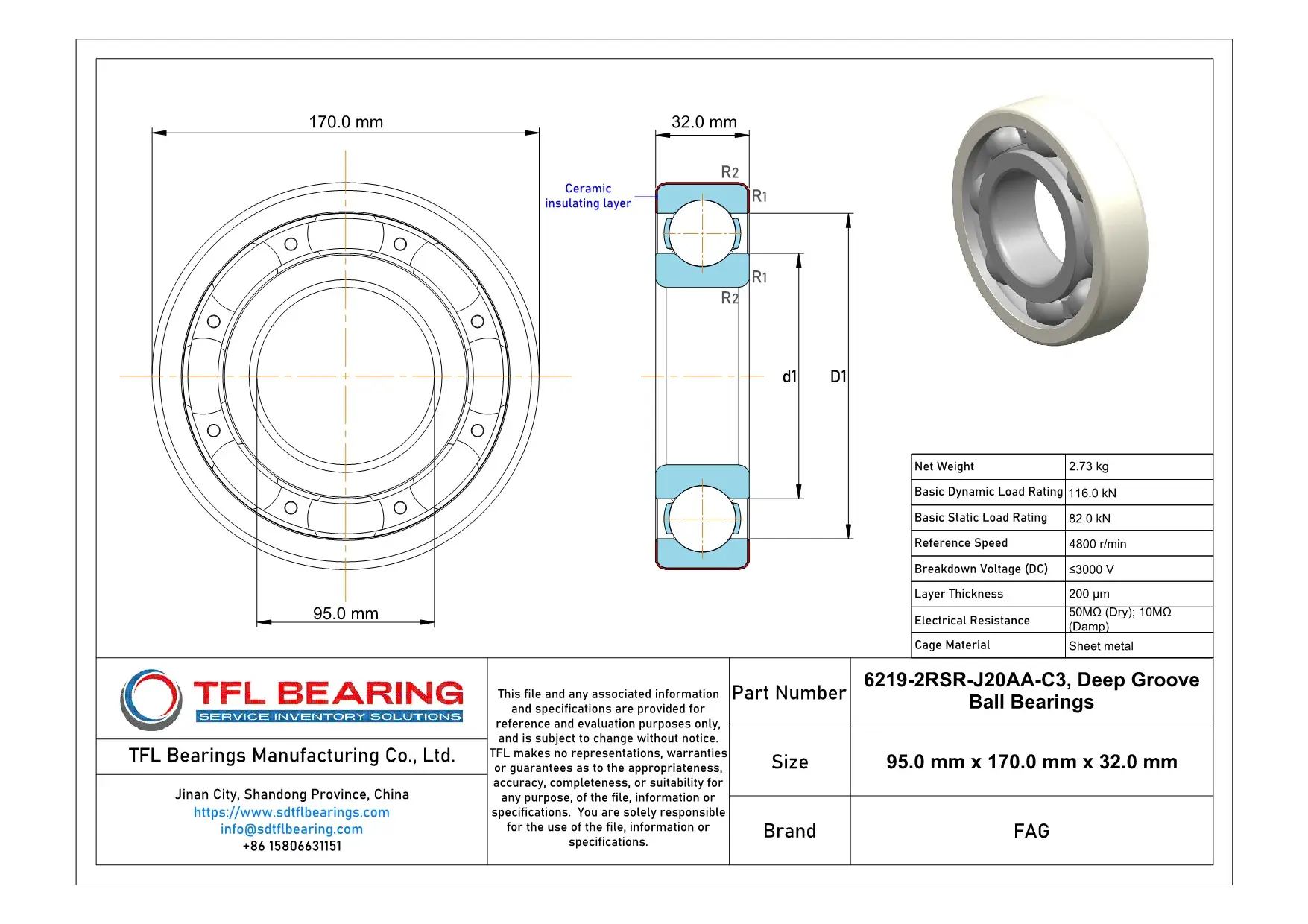

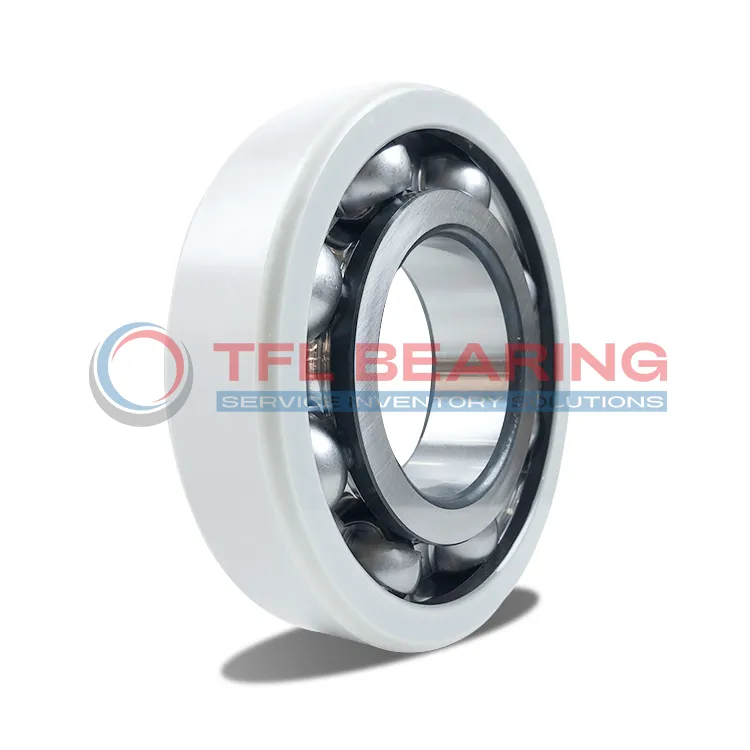

The FAG 6219-2RSR-J20AA-C3 is a current-insulated bearing with a 95mm bore and 170mm outer diameter, featuring a ceramic-coated outer ring. It handles dynamic loads up to 116kN and spins smoothly at speeds up to 4800 RPM.
Its insulating coating prevents electrical damage, with a breakdown voltage of up to 3000V, making it ideal for electric motors. The sheet metal cage ensures durability and reliable performance.
With a C3 radial clearance, it accommodates thermal expansion in demanding conditions. Compliant with RoHS and REACH standards, it’s a safe choice for industrial applications.
Perfect for use in environments with electrical currents, such as wind turbines or railway systems, where insulation is crucial. Weighing 2.73kg, it’s robust yet manageable for its size.
"*" indicates required fields
Performance Features of 6219-2RSR-J20AA-C3 Bearing
6219-2RSR-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent electrical insulation.
This design prevents current passage, reducing the risk of damage in electric motor applications.
The bearing’s basic dynamic load rating of 116.0 kN ensures reliable performance under heavy loads.
With a reference speed of 4800 r/min, it maintains efficiency in high-speed operations.
6219-2RSR-J20AA-C3 Bearing’s C3 radial internal clearance allows for thermal expansion in various conditions.
Its sheet metal cage keeps the balls aligned, ensuring smooth rotation and reduced wear.
The insulating coating offers a breakdown voltage of ≤3000 V, suitable for demanding electrical environments.
This makes 6219-2RSR-J20AA-C3 Bearing a practical choice for industrial applications.
Industrial Uses of 6219-2RSR-J20AA-C3 Bearing
6219-2RSR-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents damage from stray currents. The ceramic outer ring coating ensures reliable performance in high-voltage environments.
In wind turbine applications, 6219-2RSR-J20AA-C3 Bearing handles both radial and axial loads while resisting electrical erosion. Its C3 clearance allows for thermal expansion during continuous operation.
For industrial pumps, 6219-2RSR-J20AA-C3 Bearing’s sheet metal cage provides stability under varying loads. The 2RSR seals also protect against contaminants in harsh operating conditions.
What Makes 6219-2RSR-J20AA-C3 Bearing a Preferred Choice?
6219-2RSR-J20AA-C3 Bearing is ideal for conveyor systems in mining, where its insulating properties prevent electrical arcing. The 170mm outer diameter offers a sturdy fit for heavy-duty frames.
In railway applications, 6219-2RSR-J20AA-C3 Bearing supports traction motors with its 116kN dynamic load capacity. The damp electrical resistance of 10MΩ ensures consistent performance in humid conditions.
Built for Heavy-Duty Use: 6219-2RSR-J20AA-C3 Bearing
6219-2RSR-J20AA-C3 Bearing works well in steel mill equipment, where high temperatures and electrical currents are common. The 200µm coating thickness provides durable insulation.
For food processing machinery, 6219-2RSR-J20AA-C3 Bearing’s sealed design keeps out moisture and debris. Its 4800 r/min reference speed suits high-speed mixing applications.
Medical vs Industrial: Where 6219-2RSR-J20AA-C3 Bearing Excels
6219-2RSR-J20AA-C3 Bearing is suitable for MRI machines, where electrical insulation is critical. The 32mm width allows for compact designs in medical imaging equipment.
In industrial robotics, 6219-2RSR-J20AA-C3 Bearing offers precise movement with minimal electrical interference. The chrome steel construction ensures long service life in automated systems.
