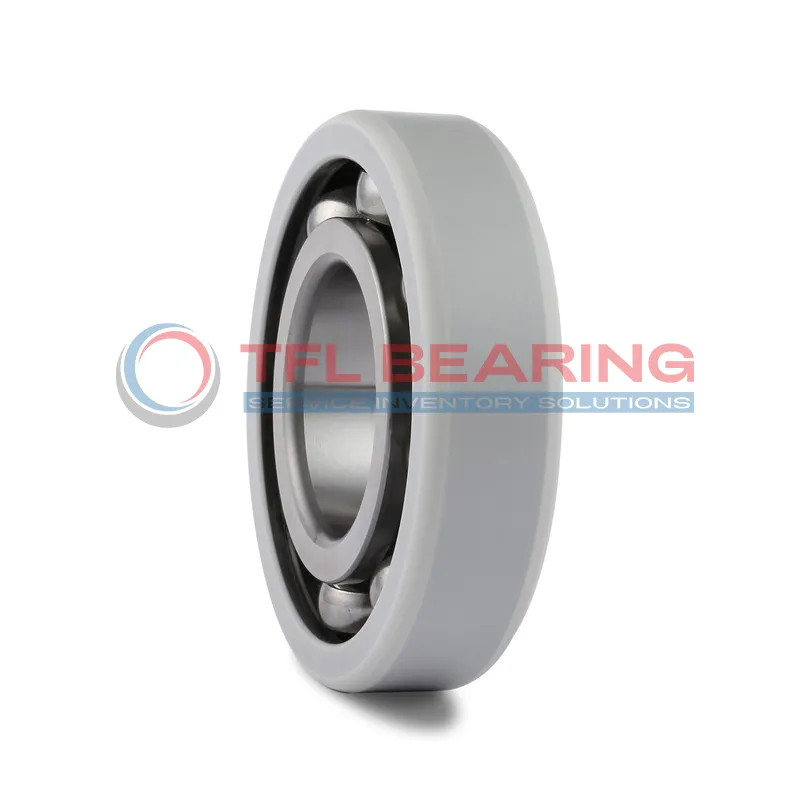

The FAG 6213-J20AB-C3 is a current-insulated bearing with a 65mm bore and 120mm outer diameter, designed to prevent electrical damage. Its outer ring features a ceramic coating, providing insulation up to 500V.
This bearing handles dynamic loads up to 63kN and spins smoothly at speeds up to 8600 RPM. The sheet metal cage ensures durability, while the C3 radial clearance allows for thermal expansion.
The ceramic coating offers high electrical resistance, even in damp conditions (10MΩ). It’s ideal for electric motors or generators where stray currents are a concern.
Weighing just 0.979kg, it’s a lightweight yet robust solution. Compliant with RoHS and REACH standards for safe and reliable use.
"*" indicates required fields
How Is 6213-J20AB-C3 Bearing Engineered for Reliability?
6213-J20AB-C3 Bearing features an outer ring ceramic coating, providing excellent insulation against electrical currents.
The coating ensures a breakdown voltage of up to 500V, making it suitable for applications with electrical interference.
With a basic dynamic load rating of 63.0 kN, 6213-J20AB-C3 Bearing handles heavy loads reliably.
Its sheet metal cage maintains ball alignment, enhancing durability and reducing wear.
6213-J20AB-C3 Bearing operates smoothly at speeds up to 8,600 r/min, balancing performance and efficiency.
The C3 radial internal clearance allows for thermal expansion, ensuring consistent operation in varying conditions.
Industrial Uses of 6213-J20AB-C3 Bearing
The 6213-J20AB-C3 Bearing is commonly used in electric motors and generators, where its current-insulating coating prevents electrical damage. Its ceramic outer ring coating ensures reliable performance in high-voltage environments.
Where Is 6213-J20AB-C3 Bearing Used?
You’ll often find 6213-J20AB-C3 Bearing in wind turbines, where it handles both mechanical loads and electrical insulation. The C3 clearance allows for thermal expansion in demanding conditions.
Built for Heavy-Duty Use: 6213-J20AB-C3 Bearing
This bearing excels in industrial gearboxes, thanks to its robust design and high dynamic load rating. The sheet metal cage provides durability under continuous operation.
Automotive vs Aerospace: Applications of 6213-J20AB-C3 Bearing
In automotive applications, 6213-J20AB-C3 Bearing is used in hybrid vehicle motors for its insulation properties. For aerospace, it’s chosen for auxiliary power units where reliability is key.
Key Fields for 6213-J20AB-C3 Bearing
The 6213-J20AB-C3 Bearing is ideal for medical imaging equipment, where electrical insulation prevents interference. Its high reference speed ensures smooth operation in precision devices.
