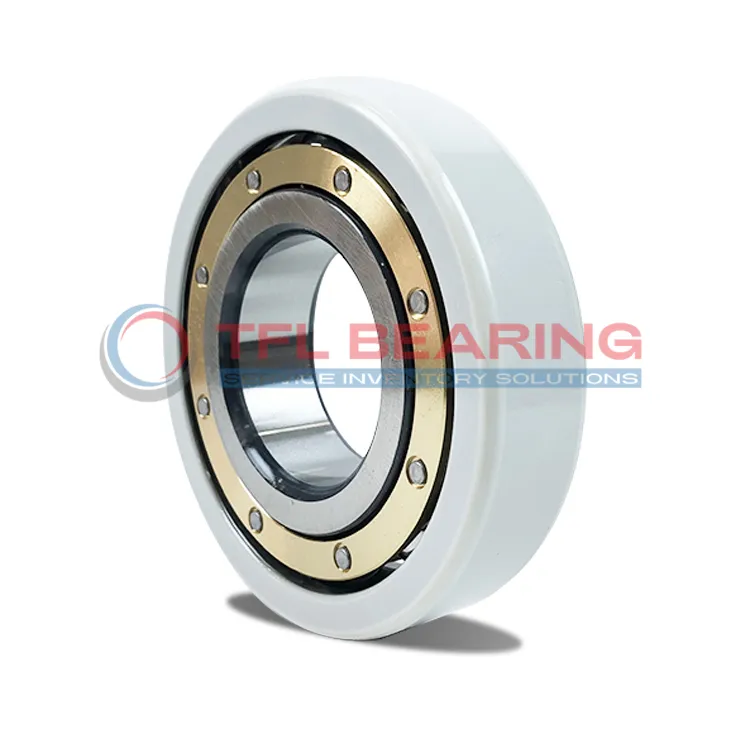

The FAG 6044-M-J20AA-C3 is a current-insulated bearing with a 220mm bore and 340mm outer diameter, designed to handle electrical currents. Its outer ring features a ceramic coating, providing insulation up to 3000V.
With a dynamic load rating of 247kN and a static load rating of 290kN, it handles heavy loads efficiently. The brass cage ensures smooth operation at speeds up to 3300 RPM.
The C3 radial clearance offers flexibility in high-temperature or high-speed applications. Its 200µm coating provides reliable electrical resistance, even in damp conditions.
Ideal for electric motors or generators, this bearing prevents current damage. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use. Weighing 18.7kg, it’s robust yet manageable for its size.
"*" indicates required fields
How Is 6044-M-J20AA-C3 Bearing Engineered for Reliability?
6044-M-J20AA-C3 Bearing features an outer ring ceramic coating, providing excellent electrical insulation with a breakdown voltage of up to 3000 V.
The brass cage ensures smooth operation and reduces friction, even at high speeds of 3300 r/min.
With a basic dynamic load rating of 247 kN, it handles heavy loads reliably in demanding industrial applications.
Its C3 radial internal clearance allows for thermal expansion, ensuring consistent performance.
Industrial Uses of 6044-M-J20AA-C3 Bearing
6044-M-J20AA-C3 Bearing is commonly used in electric motors and generators, where its current-insulating properties prevent damage from stray currents. The ceramic coating on the outer ring ensures reliable performance in high-voltage environments.
In wind turbine applications, 6044-M-J20AA-C3 Bearing handles heavy loads while maintaining electrical insulation. Its brass cage provides durability, making it suitable for long-term use in renewable energy systems.
For railway traction motors, 6044-M-J20AA-C3 Bearing offers stability under dynamic loads and electrical resistance. The C3 radial clearance allows for thermal expansion, ensuring smooth operation in varying temperatures.
Where Is 6044-M-J20AA-C3 Bearing Used?
You’ll find 6044-M-J20AA-C3 Bearing in industrial pumps, where its insulating coating protects against electrical erosion. The high dynamic load rating makes it ideal for continuous operation in demanding conditions.
In mining equipment, 6044-M-J20AA-C3 Bearing withstands harsh environments while preventing electrical damage. Its robust design ensures minimal maintenance, even under heavy loads and vibrations.
Built for Heavy-Duty Use: 6044-M-J20AA-C3 Bearing
6044-M-J20AA-C3 Bearing excels in steel mill machinery, where both mechanical and electrical stresses are high. The ceramic coating provides an extra layer of protection against electrical arcing.
For paper manufacturing equipment, 6044-M-J20AA-C3 Bearing’s insulation properties prevent downtime caused by electrical currents. Its brass cage ensures smooth rotation, even in humid conditions.
Automotive vs Aerospace: Applications of 6044-M-J20AA-C3 Bearing
In automotive testing rigs, 6044-M-J20AA-C3 Bearing handles high speeds and electrical loads without faltering. Its precise dimensions ensure compatibility with various testing equipment.
For aerospace ground support systems, 6044-M-J20AA-C3 Bearing’s insulation properties are crucial for safety. The high breakdown voltage makes it reliable in critical applications.
