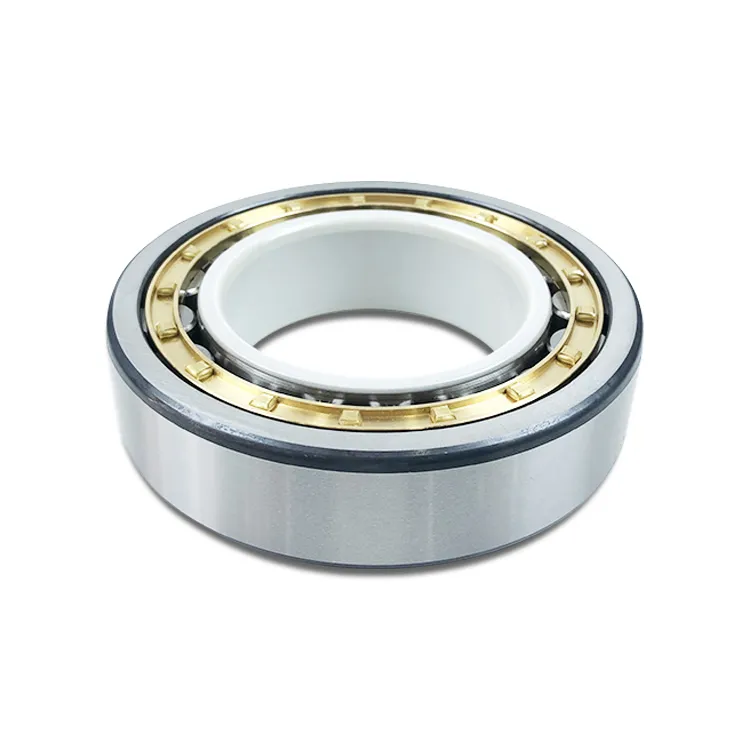

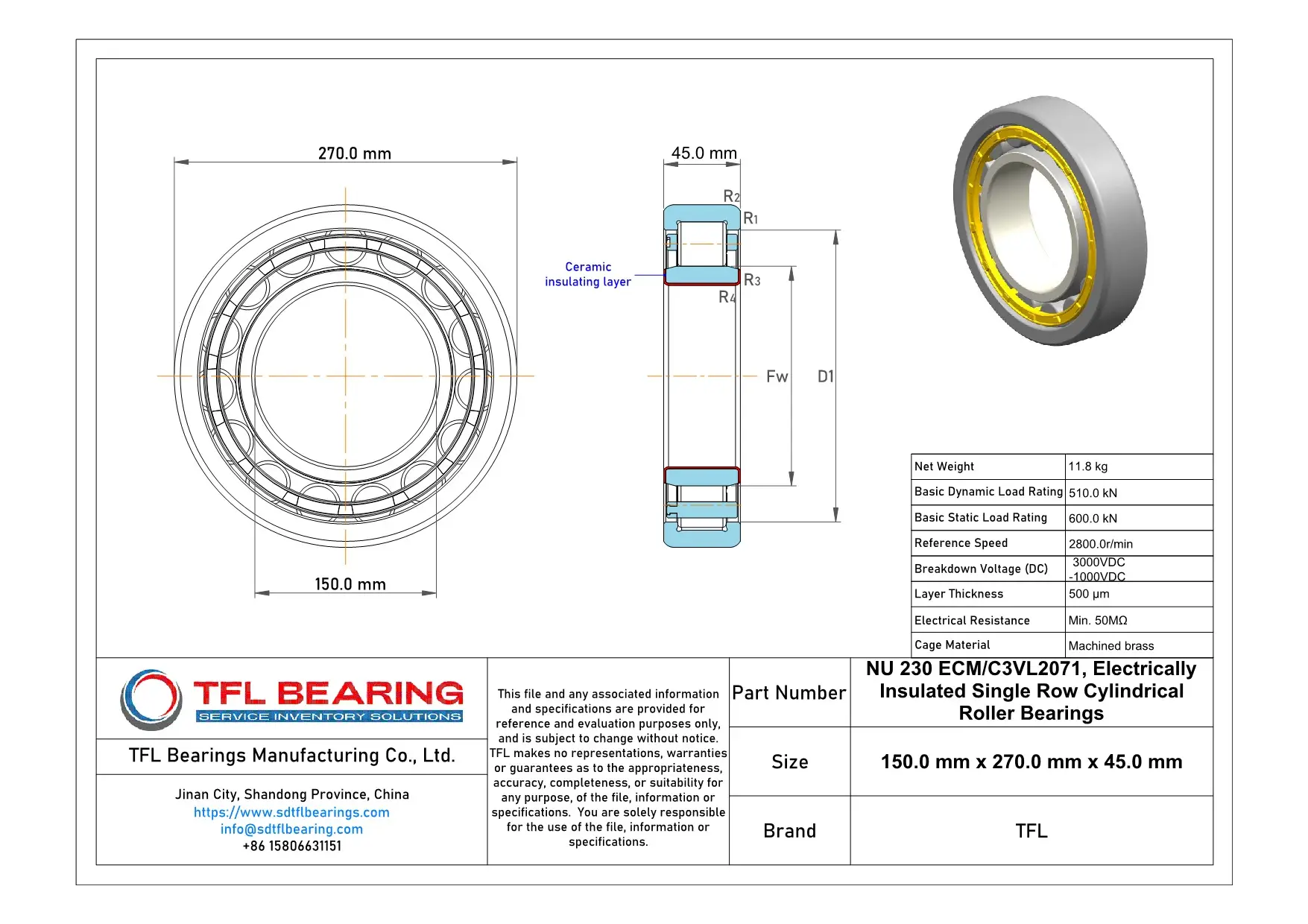

The NU 230 ECM/C3VL2071 is an electrically insulated cylindrical roller bearing with a 150mm bore and 270mm outer diameter, designed to handle heavy loads. It features a robust insulation coating on the inner ring, preventing electrical currents from damaging the bearing.
With a dynamic load rating of 510 kN and a static load rating of 600 kN, it performs reliably under high stress. The machined brass cage ensures smooth operation at speeds up to 2800 RPM.
The insulation coating offers a breakdown voltage of 1000-3000 VDC and a minimum electrical resistance of 50MΩ, making it ideal for electric motors or generators. Its C3 radial clearance allows for thermal expansion in demanding conditions.
Weighing 11.8 kg, this bearing is both durable and compliant with RoHS and REACH standards. Suitable for industrial applications where electrical insulation is crucial.
"*" indicates required fields
How Is NU 230 ECM/C3VL2071 Bearing Engineered for Reliability?
NU 230 ECM/C3VL2071 Bearing features an insulation coating on the inner ring, preventing electrical damage and ensuring smooth operation.
The machined brass cage enhances durability and maintains precise roller alignment under heavy loads.
With a basic dynamic load rating of 510 kN, it handles high-stress applications efficiently.
Its breakdown voltage of up to 3000 VDC makes it suitable for electrically demanding environments.
Industrial Uses of NU 230 ECM/C3VL2071 Bearing
NU 230 ECM/C3VL2071 Bearing is commonly used in electric motors and generators, where its electrically insulated coating prevents current passage and reduces damage from stray currents. The brass cage ensures smooth operation even under high loads.
Where Is NU 230 ECM/C3VL2071 Bearing Used?
In wind turbines, NU 230 ECM/C3VL2071 Bearing handles radial loads efficiently while its insulation protects against electrical erosion. The C3 clearance allows for thermal expansion in demanding environments.
Built for Heavy-Duty Use: NU 230 ECM/C3VL2071 Bearing
NU 230 ECM/C3VL2071 Bearing is ideal for industrial gearboxes, offering reliable performance with its high dynamic load rating. The machined brass cage adds durability in high-speed applications.
Automotive vs Aerospace: Applications of NU 230 ECM/C3VL2071 Bearing
In automotive drivetrains, NU 230 ECM/C3VL2071 Bearing supports shafts with precision, while in aerospace, its insulation properties safeguard sensitive components from electrical interference.
Perfect Fit for Automation: NU 230 ECM/C3VL2071 Bearing
NU 230 ECM/C3VL2071 Bearing works well in robotic arms, where its low friction and electrical insulation enhance performance. The consistent breakdown voltage ensures safety in automated systems.
