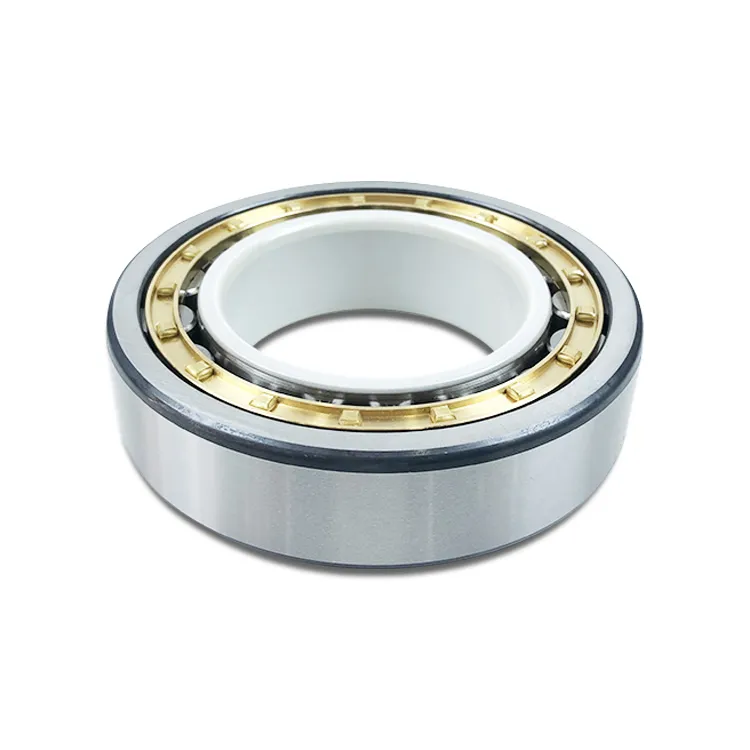

This electrically insulated cylindrical roller bearing measures 150mm by 225mm by 35mm, featuring a special coating on its inner ring. It handles dynamic loads up to 194 kN and operates smoothly at speeds reaching 3200 revolutions per minute.
The insulation coating provides protection against electrical currents, with a breakdown voltage between 1000 and 3000 VDC. Its machined brass cage offers reliable performance, while the C3 radial clearance accommodates thermal expansion during operation.
Weighing 4.9kg, this robust bearing suits various industrial applications where electrical insulation is necessary. It works well in electric motors or generators where stray currents might cause damage.
Compliant with RoHS and REACH standards, it ensures safe usage across different environments. The bearing’s design makes it suitable for maintenance and replacement in existing systems.
"*" indicates required fields
How Does NU 1030 M/C3VL2071 Bearing Prevent Electrical Damage?
NU 1030 M/C3VL2071 Bearing features an insulating coating on its inner ring, providing protection against electrical currents.
This coating offers breakdown voltage protection from 1000 to 3000 VDC, making it suitable for electric motor applications.
The machined brass cage maintains proper roller alignment, ensuring smooth operation under heavy radial loads.
With a basic dynamic load rating of 194 kN, NU 1030 M/C3VL2071 Bearing delivers reliable performance in demanding industrial environments.
How Does NU 1030 M/C3VL2071 Bearing Improve Performance?
NU 1030 M/C3VL2071 Bearing works well in industrial equipment like large motors and pumps where electrical currents could damage standard bearings. Its special insulation coating prevents electrical arcing, extending service life significantly.
In automotive electric drives, NU 1030 M/C3VL2071 Bearing handles both radial loads and electrical insulation needs within motor systems. The brass cage maintains stability during high-speed operation common in modern vehicle applications.
For medical imaging devices, NU 1030 M/C3VL2071 Bearing’s electrical insulation protects sensitive components from stray currents. The C3 clearance accommodates thermal expansion during prolonged operation cycles.
Where Is NU 1030 M/C3VL2071 Bearing Used?
NU 1030 M/C3VL2071 Bearing finds application in automation equipment where electrical insulation is necessary for reliable performance. The cylindrical roller design supports substantial radial loads in robotic positioning systems.
Within consumer appliances, NU 1030 M/C3VL2071 Bearing serves in larger motorized units like industrial washing machines. Its insulation properties prevent damage from variable frequency drives commonly used in modern appliances.
The bearing’s construction makes it suitable for wind turbine generators where electrical currents pose a risk. The 1000-3000 VDC breakdown voltage range covers most common electrical interference scenarios.
Industrial Uses of NU 1030 M/C3VL2071 Bearing
NU 1030 M/C3VL2071 Bearing operates effectively in conveyor systems found in manufacturing plants. The electrical insulation protects against damage from motor-driven roller systems and variable speed controls.
For printing machinery, NU 1030 M/C3VL2071 Bearing maintains precision while insulating against electrical currents from drive motors. The machined brass cage provides reliable performance at the 3200 rpm reference speed.
In food processing equipment, NU 1030 M/C3VL2071 Bearing’s insulation coating resists moisture and chemical exposure during cleaning cycles. The C3 clearance helps accommodate thermal changes in heated processing areas.
