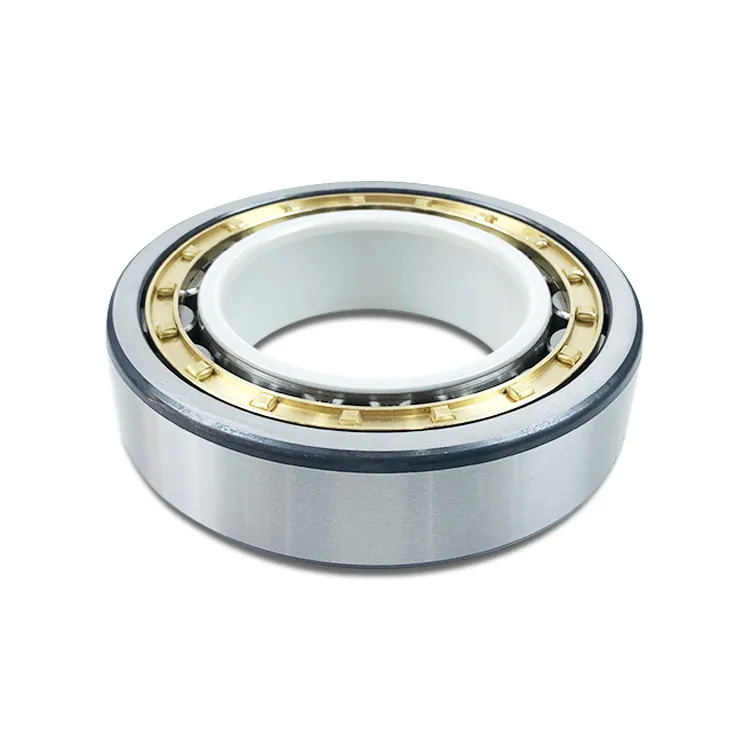

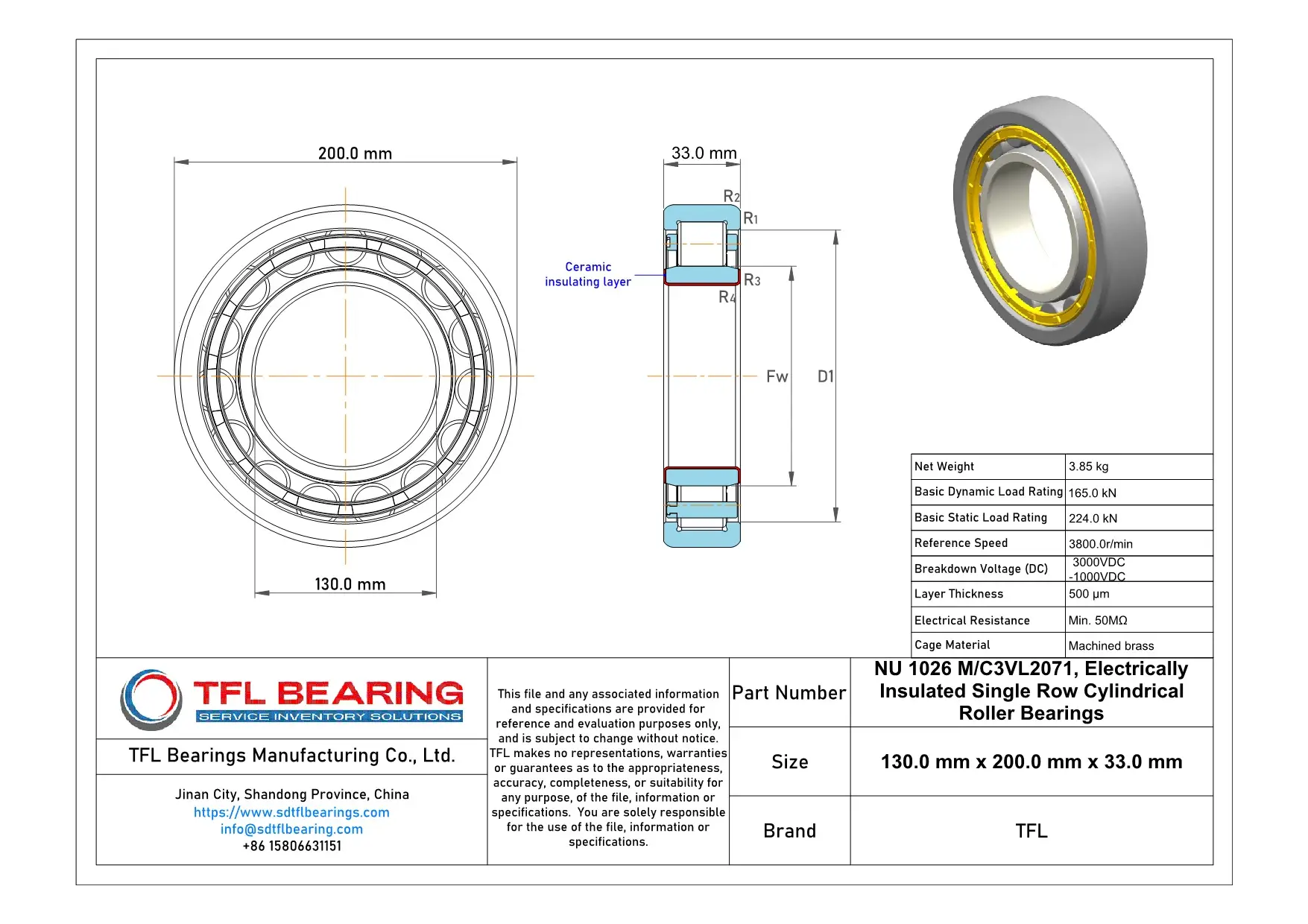

The NU 1026 M/C3VL2071 is an electrically insulated cylindrical roller bearing with a 130mm bore and 200mm outer diameter, designed to handle high loads. Its insulation coating on the inner ring prevents electrical currents from damaging the bearing.
With a dynamic load rating of 165kN and a static load rating of 224kN, it’s built for demanding applications. The machined brass cage ensures smooth operation at speeds up to 3800 RPM.
The insulation offers a breakdown voltage of 1000-3000 VDC and a minimum resistance of 50MΩ, making it ideal for electric motors or generators. Its C3 radial clearance allows for thermal expansion in high-temperature environments.
Weighing 3.85kg, this RoHS and REACH-compliant bearing is a reliable choice for industrial machinery where electrical insulation is crucial. The robust design ensures long service life even under tough conditions.
"*" indicates required fields
How Is NU 1026 M/C3VL2071 Bearing Engineered for Reliability?
NU 1026 M/C3VL2071 Bearing features an insulation coating on the inner ring, preventing electrical current damage.
Its breakdown voltage ranges from 1000 to 3000 VDC, ensuring safe operation in electrically charged environments.
The machined brass cage enhances durability and maintains proper roller alignment.
With a basic dynamic load rating of 165 kN, it handles heavy radial loads efficiently.
What Makes NU 1026 M/C3VL2071 Bearing Suitable for High-Temperature Applications?
NU 1026 M/C3VL2071 Bearing’s insulation coating withstands high temperatures, maintaining performance in demanding conditions.
The C3 radial internal clearance allows for thermal expansion, reducing stress during operation.
Its machined brass cage resists heat, ensuring long-term reliability.
With a reference speed of 3800 r/min, it balances speed and durability.
Designed for Durability: NU 1026 M/C3VL2071 Bearing
NU 1026 M/C3VL2071 Bearing’s robust construction includes a machined brass cage for enhanced strength.
The insulation coating provides a minimum electrical resistance of 50MΩ, protecting against current damage.
Its basic static load rating of 224 kN ensures stability under heavy loads.
The 500 µm layer thickness offers consistent insulation performance.
Steel vs Ceramic Bearings: Strengths of NU 1026 M/C3VL2071 Bearing
NU 1026 M/C3VL2071 Bearing combines steel’s durability with an insulating coating for electrical protection.
The machined brass cage reduces friction, extending the bearing’s service life.
Its C3 clearance accommodates thermal expansion, preventing premature wear.
With a net weight of 3.85 kg, it balances strength and ease of handling.
Industrial Uses of NU 1026 M/C3VL2071 Bearing
NU 1026 M/C3VL2071 Bearing is commonly used in electric motors and generators, where its electrically insulated design prevents current leakage and reduces bearing damage. The brass cage ensures smooth operation even under high-speed conditions.
In wind turbines, NU 1026 M/C3VL2071 Bearing handles radial loads efficiently, while its insulation coating protects against stray currents. The C3 clearance allows for thermal expansion in demanding environments.
For railway applications, NU 1026 M/C3VL2071 Bearing’s robust construction makes it suitable for traction motors, where reliability is key. The high breakdown voltage ensures safety in electrified rail systems.
What Makes NU 1026 M/C3VL2071 Bearing a Preferred Choice?
NU 1026 M/C3VL2071 Bearing stands out in industrial pumps due to its ability to withstand both electrical and mechanical stresses. The machined brass cage adds durability in wet or corrosive conditions.
In CNC machinery, NU 1026 M/C3VL2071 Bearing’s precision and insulation properties help maintain accuracy by preventing electrical arcing. Its high dynamic load rating ensures long service life even in continuous operation.
Built for Heavy-Duty Use: NU 1026 M/C3VL2071 Bearing
NU 1026 M/C3VL2071 Bearing excels in steel mill equipment, where its insulation coating resists damage from induced currents. The C3 radial clearance accommodates thermal expansion in high-temperature settings.
For mining machinery, NU 1026 M/C3VL2071 Bearing’s sturdy design handles heavy radial loads while its electrical insulation prevents premature failure. The brass cage further enhances performance in dusty environments.
Automotive vs Aerospace: Applications of NU 1026 M/C3VL2071 Bearing
In automotive alternators, NU 1026 M/C3VL2071 Bearing’s insulation properties protect against electrical damage, ensuring reliable performance. Its compact design fits well in space-constrained engine compartments.
For aerospace ground support equipment, NU 1026 M/C3VL2071 Bearing’s high-speed capability and electrical resistance make it ideal for power units. The coating’s durability withstands frequent start-stop cycles.
