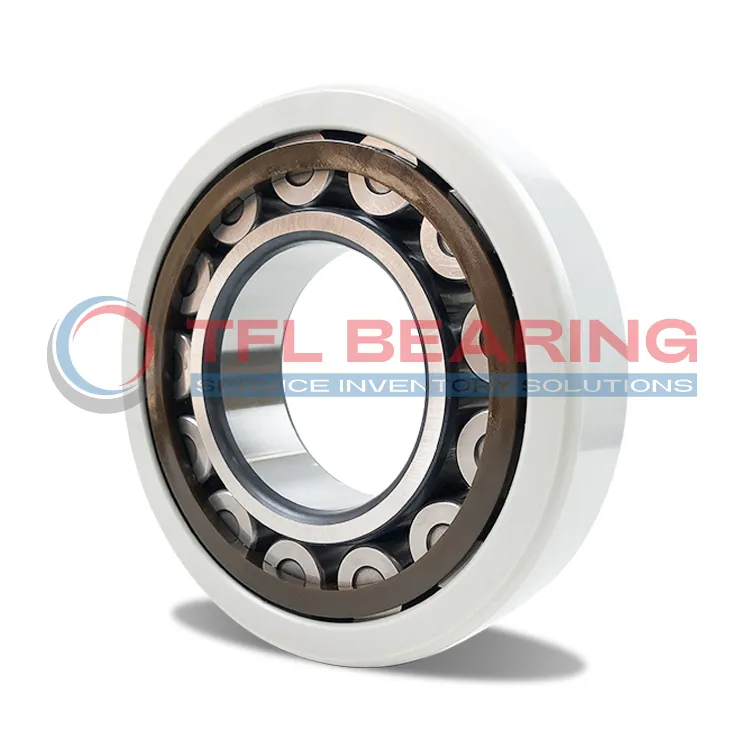

This electrically insulated cylindrical roller bearing measures 50mm by 80mm by 16mm, with a coating on its outer ring for protection. It handles dynamic loads up to 280 kN and static loads up to 265 kN, spinning smoothly at speeds around 5300 RPM.
The insulation coating prevents electrical damage, rated for 1000 to 3000 VDC, with a resistance of at least 50 MΩ. Its nylon cage and C3 clearance help it run quietly and accommodate temperature changes.
Weighing just 0.27 kg, it’s lightweight yet robust for demanding settings. Ideal for electric motors or generators where electrical currents are present, it meets RoHS and REACH standards for safe use.
"*" indicates required fields
How Is NU 1010 ECP/C3VL0241 Bearing Engineered for Reliability?
NU 1010 ECP/C3VL0241 Bearing features an insulating coating on its outer ring, protecting against electrical damage.
This coating provides a breakdown voltage from 1000 to 3000 VDC, ensuring safe operation in electrically active environments.
The nylon cage maintains roller alignment, reducing friction and wear during high-speed rotation.
With a basic dynamic load rating of 280.0 kN, NU 1010 ECP/C3VL0241 Bearing handles heavy radial loads reliably.
How Does NU 1010 ECP/C3VL0241 Bearing Improve Performance?
NU 1010 ECP/C3VL0241 Bearing works well in industrial machinery like conveyor systems and electric motors, where its electrical insulation prevents current damage. The C3 clearance helps it handle temperature changes smoothly in these applications.
In automotive electric drives, NU 1010 ECP/C3VL0241 Bearing supports components like alternators with reliable insulation up to 3000 VDC. Its nylon cage reduces weight while maintaining strength for vehicle efficiency.
For medical imaging devices, NU 1010 ECP/C3VL0241 Bearing ensures stable operation in sensitive equipment by blocking electrical currents. The coating’s high resistance minimizes interference in diagnostic tools.
In automation robotics, NU 1010 ECP/C3VL0241 Bearing fits into robotic arms where insulation protects against motor-induced currents. Its cylindrical roller design offers precise movement for repetitive tasks.
Where Is NU 1010 ECP/C3VL0241 Bearing Used?
NU 1010 ECP/C3VL0241 Bearing suits industrial fans and pumps, as the insulation coating stops electrical erosion from variable drives. This extends service life in harsh plant conditions.
Automotive hybrid systems use NU 1010 ECP/C3VL0241 Bearing in electric motor shafts to manage high voltages safely. The 50 mm bore size integrates easily with standard automotive components.
Medical lab equipment benefits from NU 1010 ECP/C3VL0241 Bearing’s low electrical conductivity in centrifuges and analyzers. Its static load rating handles consistent use without degradation.
In consumer appliances like washing machines, NU 1010 ECP/C3VL0241 Bearing prevents electrical arcing in motor assemblies. The nylon cage operates quietly for home environments.
Ideal for Precision: NU 1010 ECP/C3VL0241 Bearing
NU 1010 ECP/C3VL0241 Bearing assists in machine tool spindles where electrical insulation avoids damage from stray currents. The 5300 r/min speed rating supports high-speed operations reliably.
For automotive transmission systems, NU 1010 ECP/C3VL0241 Bearing handles radial loads in electrified components without current leakage. Its metric dimensions align with global manufacturing standards.
In medical surgical robots, NU 1010 ECP/C3VL0241 Bearing provides insulated rotation in joint mechanisms. The chrome steel material ensures hygiene and corrosion resistance.
Automation conveyors utilize NU 1010 ECP/C3VL0241 Bearing for its ability to isolate electrical faults in control systems. The C3 clearance accommodates thermal expansion in continuous runs.
