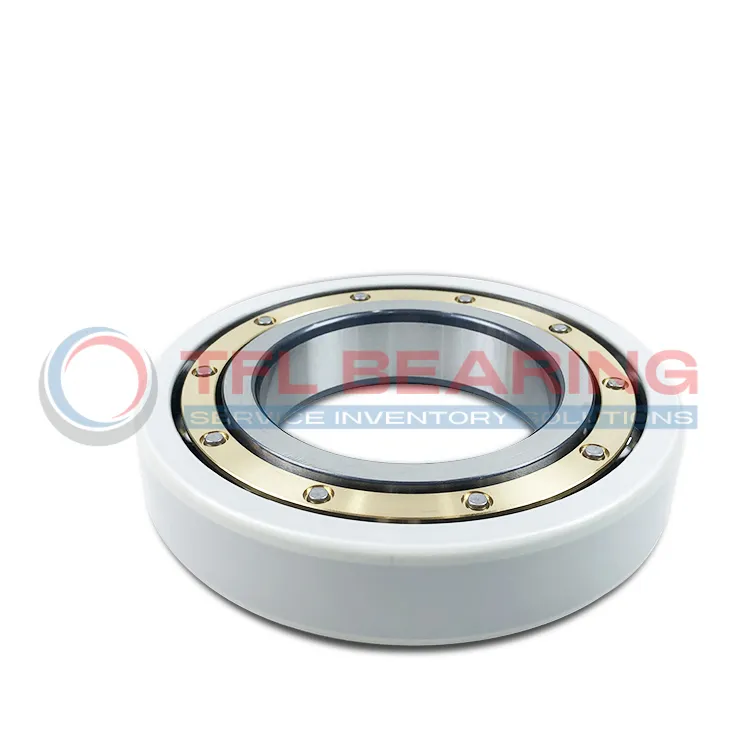

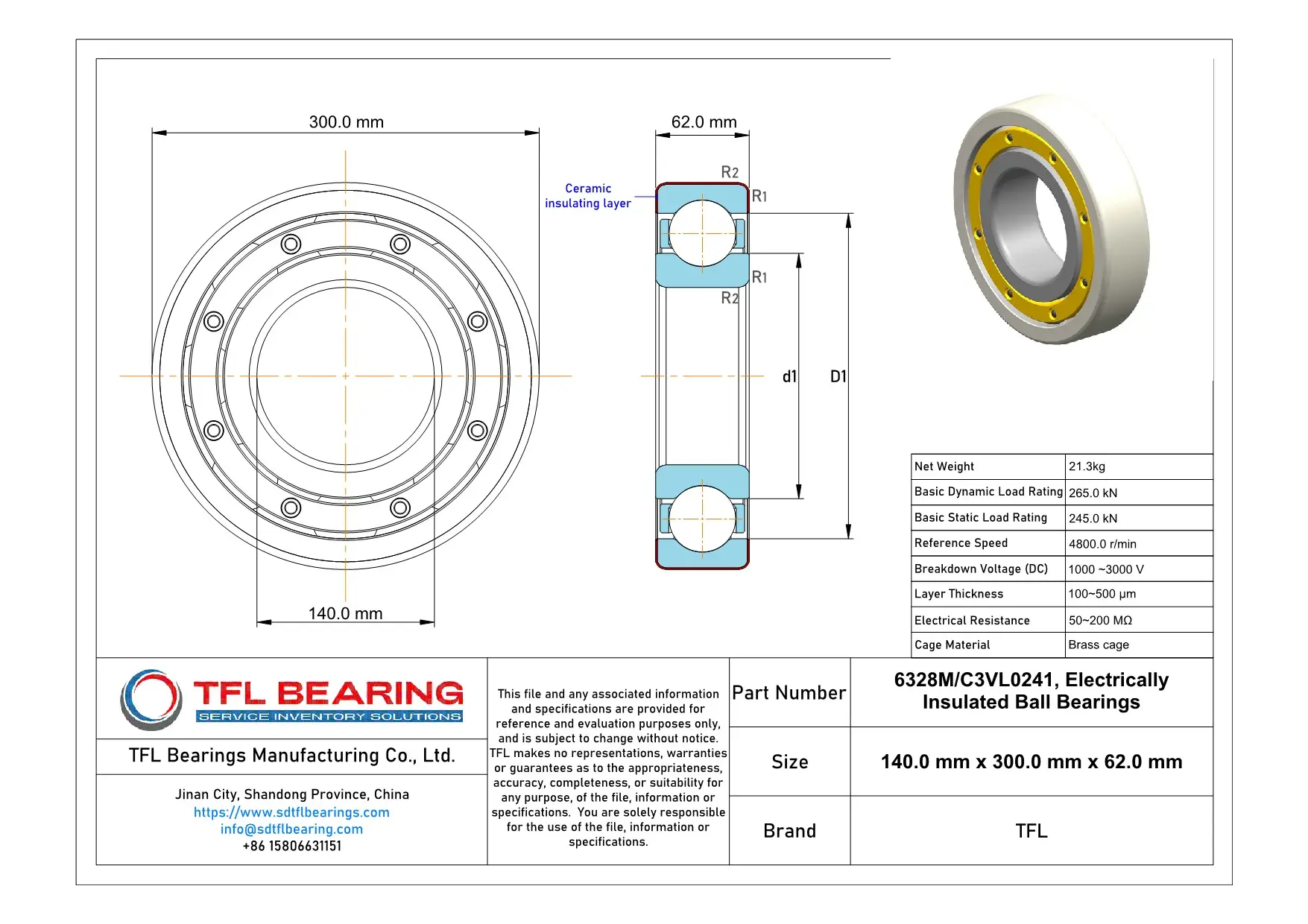

The 6328M/C3VL0241 is an electrically insulated ball bearing with a 140mm bore and 300mm outer diameter, designed to handle heavy loads. It features a brass cage and insulation coating on the outer ring, providing reliable performance in electrical environments.
With a dynamic load rating of 265kN and a static load rating of 245kN, it can withstand significant forces while maintaining smooth operation. Its reference speed of 4800 r/min ensures efficient performance in high-speed applications.
The insulation coating offers a breakdown voltage of 1000-3000V and electrical resistance of 50-200 MΩ, making it ideal for use in electric motors or generators. The C3 radial internal clearance allows for thermal expansion under heavy loads.
Weighing 21.3kg, this robust bearing is compliant with RoHS and REACH standards. Suitable for industrial machinery where electrical insulation is crucial, it ensures both durability and safety.
"*" indicates required fields
How Is 6328M/C3VL0241 Bearing Engineered for Reliability?
6328M/C3VL0241 Bearing features an insulation coating on the outer ring, preventing electrical currents from damaging the bearing.
Its brass cage ensures smooth operation and reduces friction, even at high speeds up to 4,800 r/min.
With a basic dynamic load rating of 265.0 kN, 6328M/C3VL0241 Bearing handles heavy loads reliably.
The C3 radial internal clearance allows for thermal expansion, making it suitable for varying operating conditions.
6328M/C3VL0241 Bearing’s breakdown voltage ranges from 1,000 to 3,000 V, ensuring safety in electrically charged environments.
The insulation layer thickness of 100~500 µm provides consistent protection against electrical damage.
Industrial Uses of 6328M/C3VL0241 Bearing
6328M/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical arcing and extends component life. The brass cage adds durability, making it suitable for high-speed industrial applications.
Where Is 6328M/C3VL0241 Bearing Used?
In wind turbines, 6328M/C3VL0241 Bearing handles high dynamic loads while its insulation protects against stray currents. The C3 radial clearance ensures reliable performance even under thermal expansion.
Built for Heavy-Duty Use: 6328M/C3VL0241 Bearing
This bearing excels in railway traction systems, where its high breakdown voltage resists electrical damage. The robust design also copes well with vibrations and variable loads.
Automotive vs Aerospace: Applications of 6328M/C3VL0241 Bearing
In hybrid vehicles, 6328M/C3VL0241 Bearing isolates sensitive electronics from motor currents. For aircraft systems, its lightweight construction and insulation meet strict safety requirements.
Perfect Fit for Automation: 6328M/C3VL0241 Bearing
Robotic arms benefit from 6328M/C3VL0241 Bearing’s precision and electrical insulation during repetitive movements. The coating also reduces maintenance needs in dusty factory environments.
