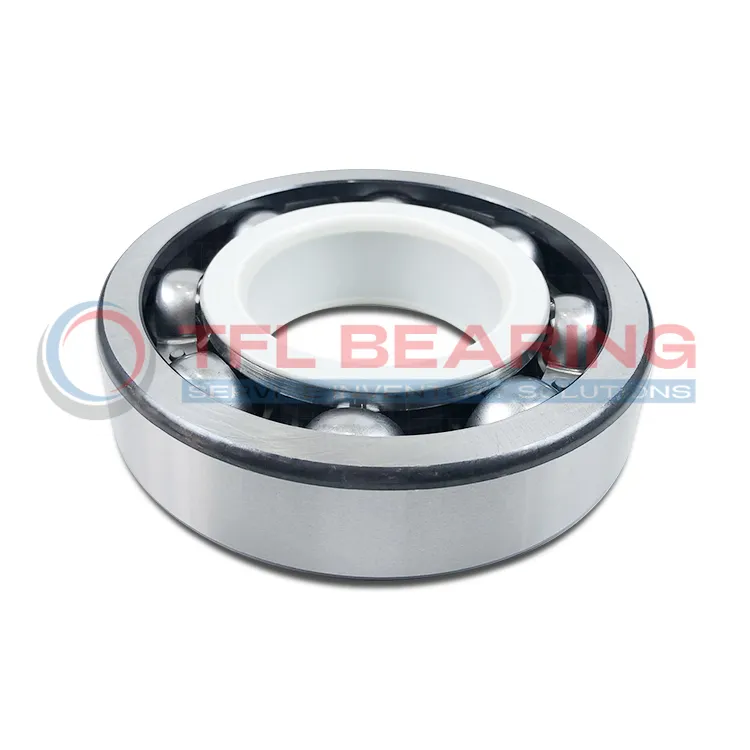

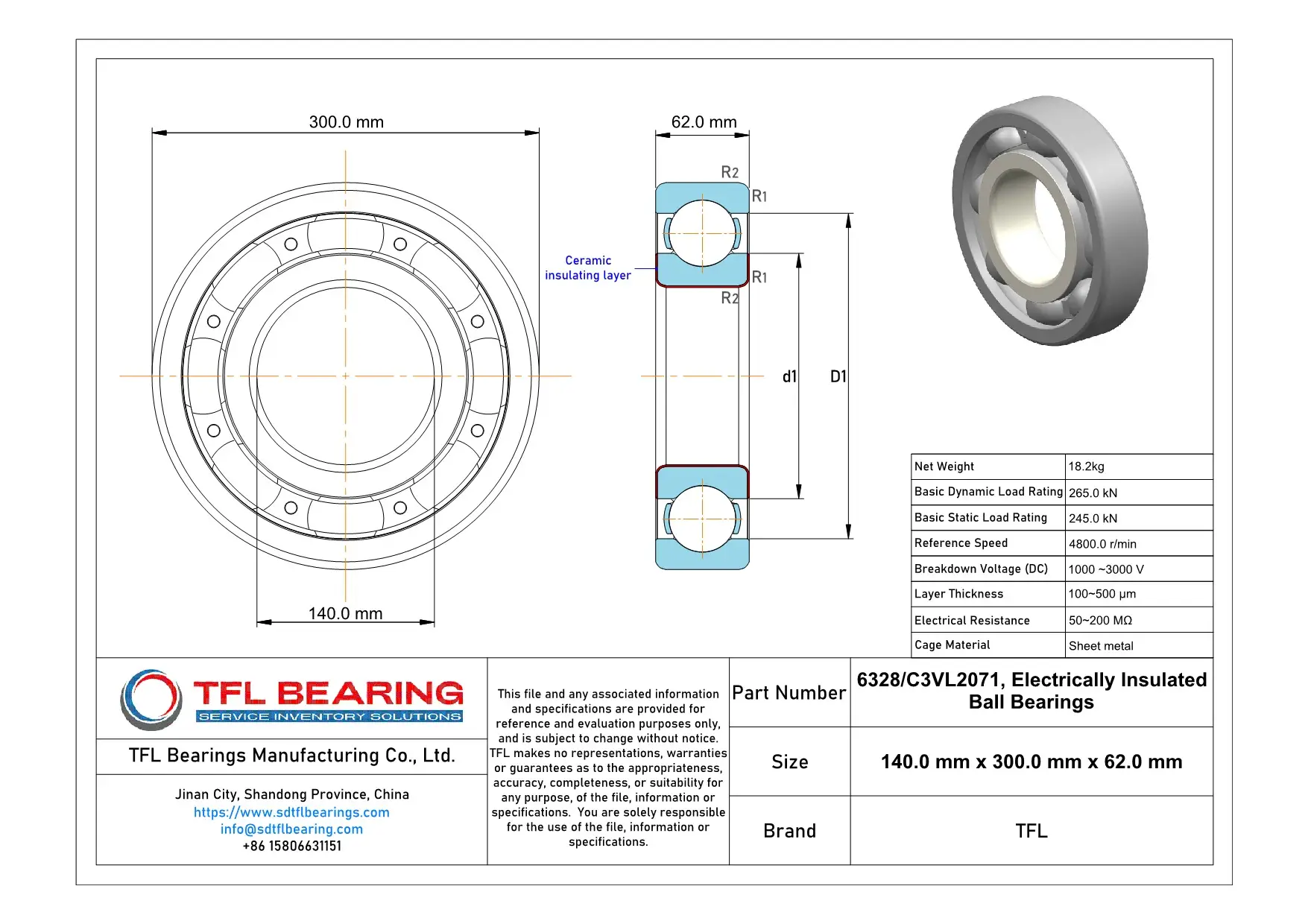

The 6328/C3VL2071 is an electrically insulated ball bearing with a 140mm bore and 300mm outer diameter, designed to handle high loads and speeds. It features an inner ring insulation coating to prevent electrical currents from damaging the bearing.
With a dynamic load rating of 265kN and a static load rating of 245kN, it’s built for demanding applications. The bearing can reach speeds up to 4800 RPM, making it suitable for fast-moving machinery.
The insulating coating offers a breakdown voltage of 1000-3000V and electrical resistance of 50-200 MΩ, protecting against electrical arcing. Its C3 radial clearance ensures smooth operation under varying temperatures.
Ideal for electric motors, generators, or wind turbines where electrical insulation is crucial. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial use. Weighing 18.2kg, it balances durability with practical handling.
"*" indicates required fields
How Does 6328/C3VL2071 Bearing Prevent Electrical Current Damage?
6328/C3VL2071 Bearing features an inner ring insulation coating, protecting against electrical current damage.
The coating provides a breakdown voltage of 1000~3000 V, ensuring safe operation in electrically charged environments.
With an electrical resistance of 50~200 MΩ, it effectively blocks harmful currents.
This design extends the bearing’s lifespan and reduces maintenance needs.
What Makes 6328/C3VL2071 Bearing Suitable for High-Speed Applications?
6328/C3VL2071 Bearing is designed for high-speed operations, with a reference speed of 4800 r/min.
Its sheet metal cage ensures stable performance, even at elevated speeds.
The C3 radial internal clearance allows for thermal expansion during high-speed use.
This combination of features ensures reliable and efficient performance.
Built for Reliability: 6328/C3VL2071 Bearing
6328/C3VL2071 Bearing offers a basic dynamic load rating of 265.0 kN, handling heavy loads with ease.
The chrome steel construction provides durability and resistance to wear.
Its insulation coating adds an extra layer of protection in demanding environments.
This makes it a dependable choice for various industrial applications.
Industrial Uses of 6328/C3VL2071 Bearing
The 6328/C3VL2071 Bearing is commonly used in electric motors and generators, where its inner ring insulation coating prevents electrical currents from causing damage. This makes it a reliable choice for industries dealing with high-voltage equipment.
In wind turbines, 6328/C3VL2071 Bearing helps manage electrical insulation while handling significant radial loads. Its C3 radial clearance ensures smooth operation even under varying thermal conditions.
For railway applications, 6328/C3VL2071 Bearing’s robust design and electrical insulation properties make it suitable for traction motors. The sheet metal cage adds durability, ensuring long service life in demanding environments.
What Makes 6328/C3VL2071 Bearing a Preferred Choice?
6328/C3VL2071 Bearing is ideal for industrial pumps, where its insulation properties protect against stray currents. The high breakdown voltage range ensures safety in electrically noisy environments.
In manufacturing equipment, 6328/C3VL2071 Bearing’s ability to handle dynamic loads while maintaining electrical insulation is a key advantage. Its compliance with ROHS and REACH standards also makes it environmentally friendly.
Built for Heavy-Duty Use: 6328/C3VL2071 Bearing
6328/C3VL2071 Bearing excels in mining machinery, where its electrical insulation and high load capacity are critical. The 300 mm outer diameter provides ample support for heavy rotating parts.
For HVAC systems, 6328/C3VL2071 Bearing’s insulation coating reduces the risk of electrical corrosion. Its wide temperature range ensures reliable performance in both heating and cooling applications.
