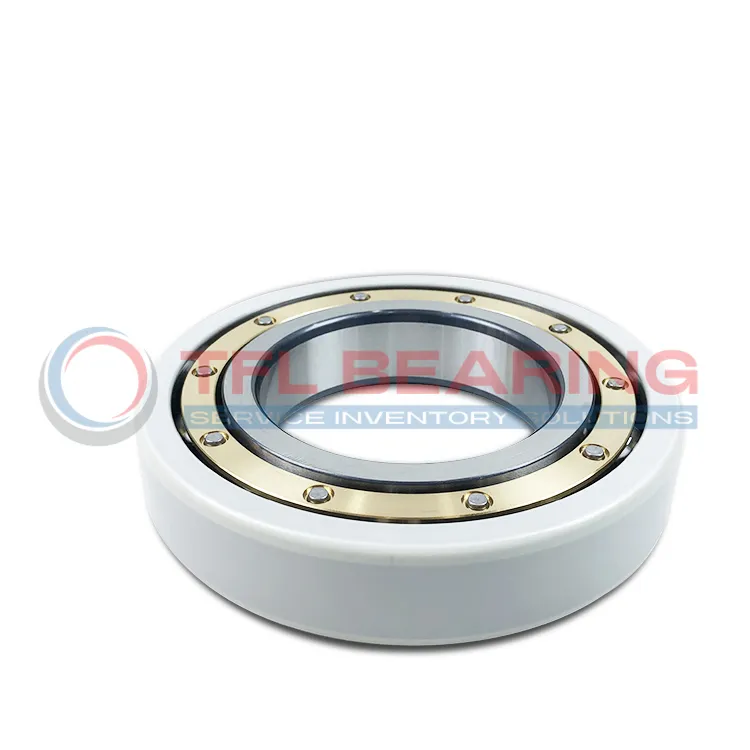

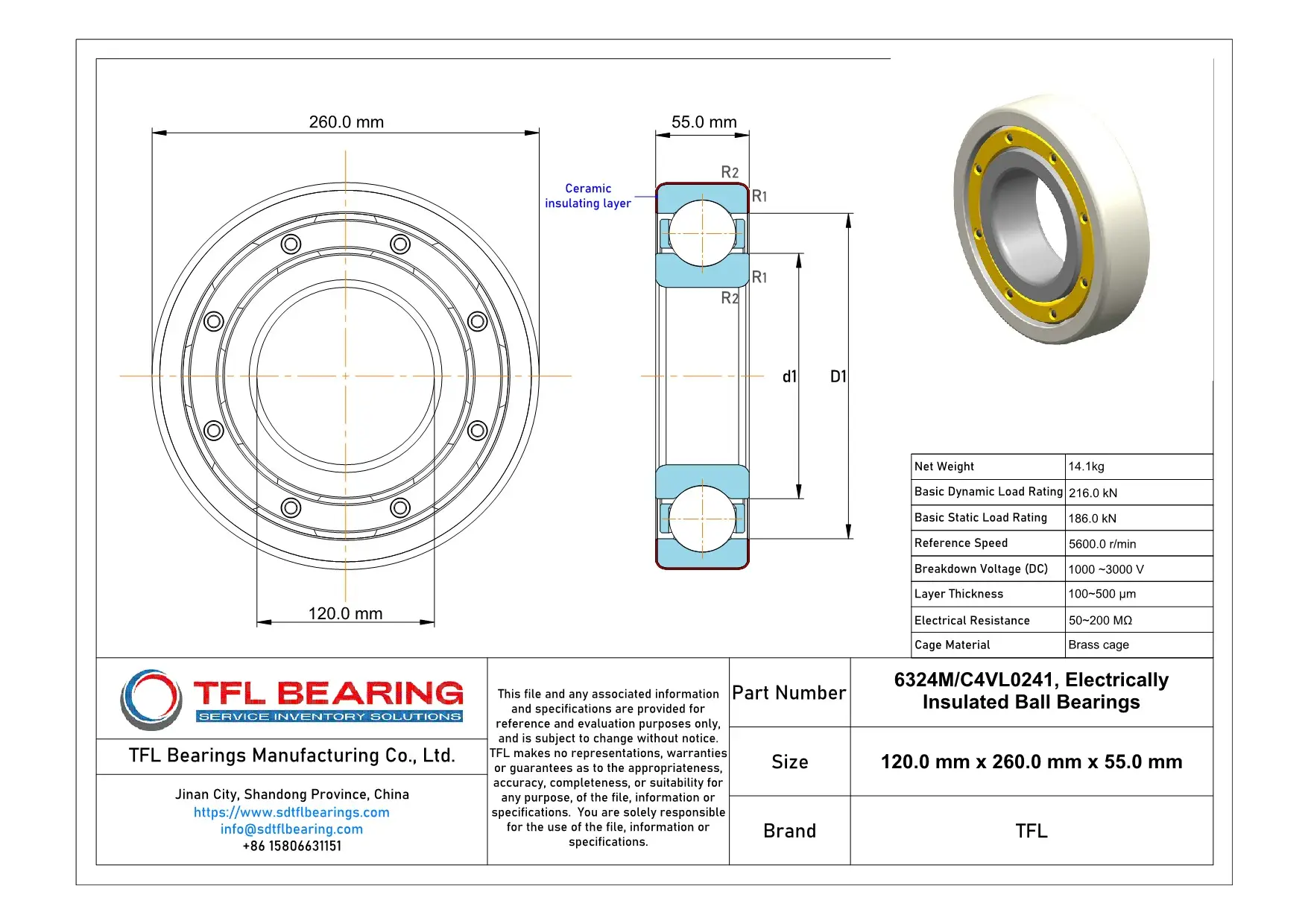

The 6324M/C4VL0241 is an electrically insulated ball bearing with a 120mm bore and 260mm outer diameter, designed to prevent electrical currents from passing through. Its robust construction includes a brass cage and insulation coating on the outer ring.
With a dynamic load rating of 216 kN and a static load rating of 186 kN, it handles heavy loads efficiently. It can reach speeds up to 5600 RPM, making it suitable for high-performance applications.
The insulation coating provides a breakdown voltage of 1000-3000 V and electrical resistance of 50-200 MΩ, protecting against electrical damage. Its C4 radial internal clearance ensures smooth operation under varying conditions.
Ideal for use in electric motors and generators, this bearing is RoHS and REACH compliant. Weighing 14.1kg, it offers durability and reliability in demanding environments.
"*" indicates required fields
How Is 6324M/C4VL0241 Bearing Engineered for Reliability?
6324M/C4VL0241 Bearing features an insulating coating on the outer ring, preventing electrical current damage.
Its brass cage ensures smooth operation and reduces friction, even at high speeds up to 5,600 r/min.
With a basic dynamic load rating of 216 kN, it handles heavy loads reliably.
The C4 radial internal clearance allows for thermal expansion, maintaining performance in varying conditions.
What Makes 6324M/C4VL0241 Bearing Suitable for High-Temperature Applications?
6324M/C4VL0241 Bearing’s insulation coating withstands high voltages, ranging from 1,000 to 3,000 V.
The brass cage material ensures durability and reduces wear under thermal stress.
Its electrical resistance of 50-200 MΩ prevents current leakage, enhancing safety.
With a wide operating temperature range, it remains reliable in demanding environments.
Built for Reliability: 6324M/C4VL0241 Bearing
6324M/C4VL0241 Bearing is designed with a robust brass cage, ensuring long-lasting performance.
Its insulation coating protects against electrical damage, extending service life.
The bearing’s high dynamic load rating of 216 kN makes it suitable for heavy-duty applications.
With a reference speed of 5,600 r/min, it delivers efficient and smooth operation.
Steel vs Ceramic Bearings: Strengths of 6324M/C4VL0241 Bearing
6324M/C4VL0241 Bearing combines the strength of steel with the insulation benefits of ceramic-like coatings.
Its outer ring coating provides electrical resistance, preventing damage from stray currents.
The brass cage enhances durability, making it ideal for high-speed applications.
With a static load rating of 186 kN, it ensures stability under heavy loads.
Industrial Uses of 6324M/C4VL0241 Bearing
6324M/C4VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical arcing and extends component life. The brass cage adds stability, making it suitable for high-speed industrial applications.
What Makes 6324M/C4VL0241 Bearing a Preferred Choice?
With a breakdown voltage of up to 3000V, 6324M/C4VL0241 Bearing is ideal for wind turbines and railway systems, where electrical insulation is critical. Its C4 clearance ensures smooth operation even under varying thermal conditions.
Built for Heavy-Duty Use: 6324M/C4VL0241 Bearing
In conveyor systems and large pumps, 6324M/C4VL0241 Bearing handles heavy loads reliably thanks to its 216kN dynamic load rating. The coating also resists wear in dusty or humid environments.
Automotive vs Aerospace: Applications of 6324M/C4VL0241 Bearing
While 6324M/C4VL0241 Bearing supports hybrid vehicle drivetrains, its aerospace uses include auxiliary power units where electrical safety matters. The 5600r/min speed rating suits both precision fields.
Perfect Fit for Automation: 6324M/C4VL0241 Bearing
Robotic arms benefit from 6324M/C4VL0241 Bearing’s consistent performance and insulation against stray currents. The 55mm width provides ample stability for repetitive movements.
