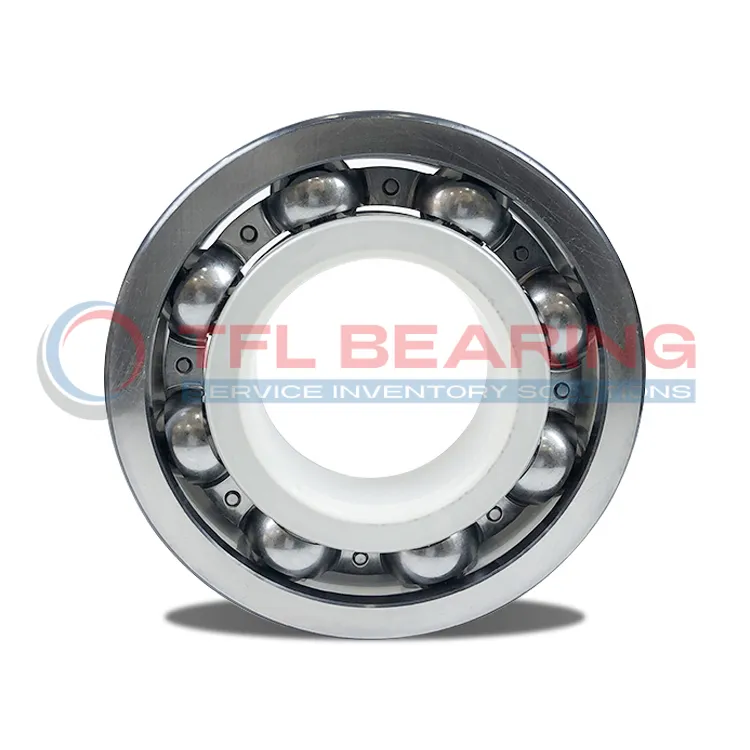

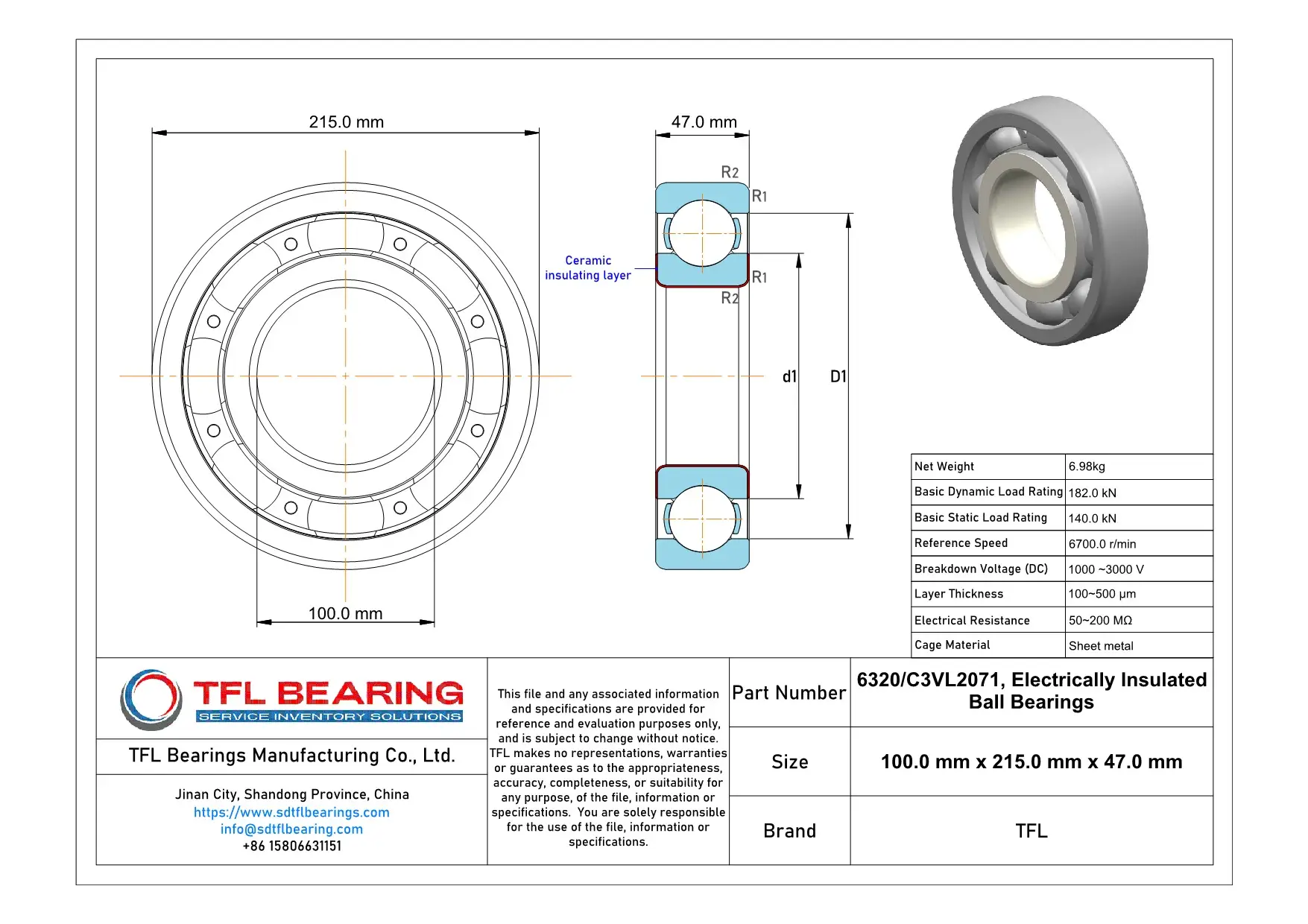

The 6320/C3VL2071 is an electrically insulated ball bearing with a 100mm bore and 215mm outer diameter, designed to prevent electrical currents from passing through. It handles dynamic loads up to 182kN and spins smoothly at speeds up to 6700 RPM.
Its inner ring insulation coating provides a breakdown voltage of 1000-3000V, making it ideal for electric motors or generators. The sheet metal cage ensures durability and consistent performance.
With a radial internal clearance of C3, it accommodates thermal expansion in high-speed applications. The bearing is compliant with RoHS and REACH standards, ensuring safe use in various industries.
Weighing 6.98kg, it’s a robust choice for heavy-duty equipment where electrical insulation is crucial. Suitable for wind turbines or industrial machinery exposed to stray currents.
"*" indicates required fields
Why Choose 6320/C3VL2071 Bearing for Precision Tasks?
6320/C3VL2071 Bearing features an inner ring insulation coating, preventing electrical current damage in sensitive applications.
With a breakdown voltage of 1000-3000 V, it ensures reliable operation in electrically charged environments.
The C3 radial internal clearance allows for thermal expansion, maintaining performance under varying conditions.
Its dynamic load rating of 182 kN makes it suitable for high-demand industrial use.
Industrial Uses of 6320/C3VL2071 Bearing
The 6320/C3VL2071 Bearing is commonly used in electric motors and generators, where its inner ring insulation coating prevents electrical arcing. This makes it a reliable choice for industries dealing with high-voltage equipment.
In wind turbines, 6320/C3VL2071 Bearing handles both radial and axial loads while maintaining electrical insulation. Its C3 radial clearance ensures smooth operation even under varying thermal conditions.
For railway applications, 6320/C3VL2071 Bearing supports traction motors, where its high breakdown voltage and electrical resistance are essential. The sheet metal cage adds durability in these demanding environments.
What Makes 6320/C3VL2071 Bearing a Preferred Choice?
In industrial automation, 6320/C3VL2071 Bearing is often found in robotic arms and CNC machines. Its insulation properties reduce downtime caused by electrical damage.
The bearing’s high dynamic load rating makes it suitable for heavy machinery like compressors and pumps. Its consistent performance under stress ensures long service life.
Built for Heavy-Duty Use: 6320/C3VL2071 Bearing
In mining equipment, 6320/C3VL2071 Bearing withstands harsh conditions while maintaining electrical insulation. The robust design handles both shock loads and contamination.
For marine applications, 6320/C3VL2071 Bearing resists corrosion and electrical damage in ship propulsion systems. Its wide temperature range ensures reliability in varying climates.
