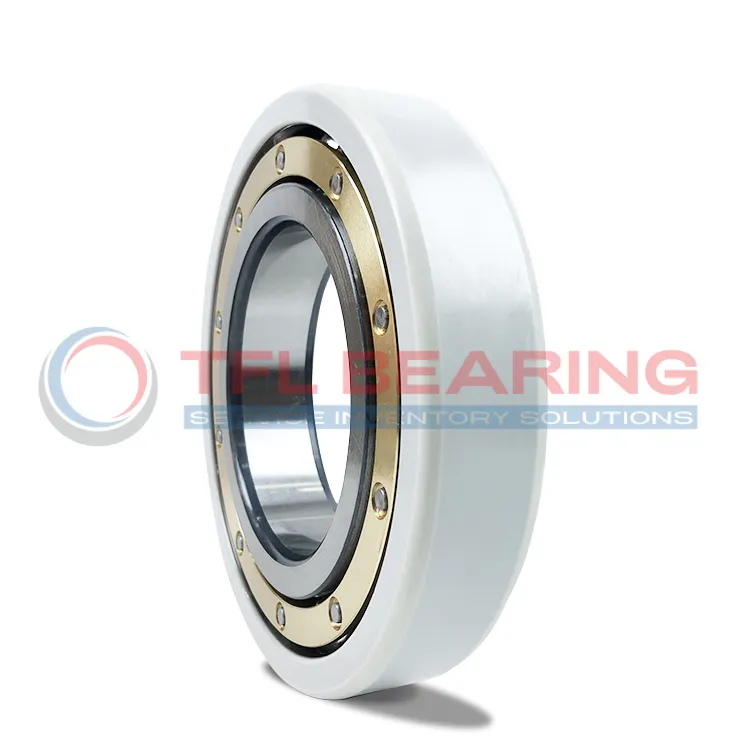

The 6319M/C4VL0241 is an electrically insulated ball bearing with a 95mm bore and 200mm outer diameter, designed to handle both radial and axial loads. It features a durable brass cage and can withstand speeds up to 7000 RPM.
Its outer ring has a special insulation coating, preventing electrical currents from damaging the bearing. This makes it ideal for use in electric motors or generators where electrical arcing is a concern.
With a dynamic load rating of 159 kN, it offers reliable performance in demanding applications. The coating provides a breakdown voltage of 1000-3000V and electrical resistance of 50-200 MΩ.
Weighing 6.52kg, it’s a sturdy choice for industrial machinery. Compliant with RoHS and REACH standards, it’s both safe and environmentally friendly. Perfect for applications requiring electrical insulation and high load capacity.
"*" indicates required fields
How Is 6319M/C4VL0241 Bearing Engineered for Reliability?
6319M/C4VL0241 Bearing features an insulating coating on the outer ring, preventing electrical damage in high-voltage environments.
Its brass cage ensures smooth operation, while the C4 radial clearance accommodates thermal expansion.
With a breakdown voltage of 1000-3000 V, it reliably protects against electrical currents.
The bearing’s dynamic load rating of 159 kN makes it suitable for demanding industrial applications.
What Makes 6319M/C4VL0241 Bearing Suitable for High-Temperature Applications?
6319M/C4VL0241 Bearing’s C4 radial clearance allows for thermal expansion, maintaining performance under heat.
The brass cage resists high temperatures, ensuring stability even at speeds up to 7000 r/min.
Its insulation coating remains effective, with a layer thickness of 100-500 µm.
This design ensures reliable operation in electrically charged and high-temperature environments.
Built for Reliability: 6319M/C4VL0241 Bearing
6319M/C4VL0241 Bearing combines a brass cage and insulating coating for durability in harsh conditions.
Its high dynamic load rating of 159 kN supports heavy industrial use without compromising performance.
The bearing’s electrical resistance of 50-200 MΩ prevents current-related wear.
With a reference speed of 7000 r/min, it balances speed and longevity.
Steel vs Ceramic Bearings: Strengths of 6319M/C4VL0241 Bearing
6319M/C4VL0241 Bearing’s steel construction offers robust load capacity, handling up to 159 kN dynamically.
The insulating coating provides an edge over standard bearings in electrical applications.
Its brass cage enhances durability, outperforming ceramic options in high-speed scenarios.
With a breakdown voltage of 1000-3000 V, it ensures safety in electrically active environments.
Industrial Uses of 6319M/C4VL0241 Bearing
6319M/C4VL0241 Bearing is commonly used in industrial motors and generators, where electrical insulation is essential to prevent current leakage. Its brass cage and C4 clearance ensure smooth operation even under heavy loads.
What Makes 6319M/C4VL0241 Bearing a Preferred Choice?
In wind turbines, 6319M/C4VL0241 Bearing’s high breakdown voltage and insulation coating protect against electrical arcing. The robust design also handles the dynamic loads typical in renewable energy applications.
Perfect Fit for Automation: 6319M/C4VL0241 Bearing
For automated production lines, 6319M/C4VL0241 Bearing offers reliable performance with minimal maintenance. Its electrical resistance properties make it ideal for use in servo motors and robotic arms.
Medical vs Industrial: Where 6319M/C4VL0241 Bearing Excels
While 6319M/C4VL0241 Bearing is versatile, it shines in industrial settings like CNC machines due to its high-speed capabilities. The insulation coating also makes it suitable for medical imaging devices where electrical interference must be avoided.
Essential Roles of 6319M/C4VL0241 Bearing
In electric vehicles, 6319M/C4VL0241 Bearing supports components like traction motors, ensuring efficient power transmission. The coating’s durability and resistance to wear make it a long-lasting solution for demanding applications.
