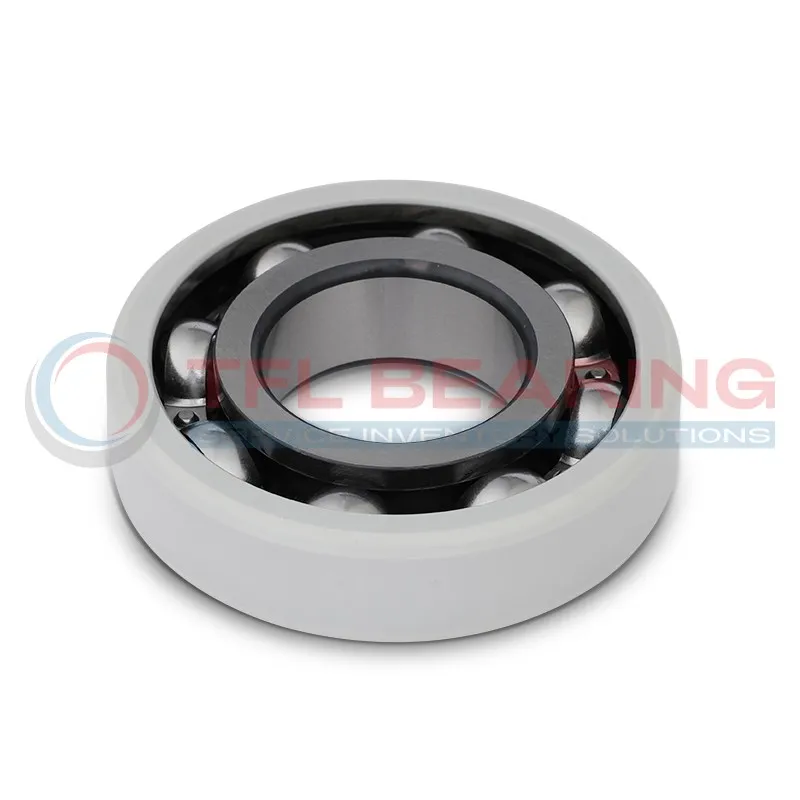

The 6314/C3VL0241 is an electrically insulated ball bearing with a 70mm bore and 150mm outer diameter, designed to prevent electrical currents from passing through. Its outer ring features a special coating that provides insulation, with a breakdown voltage of 1000-3000V.
This bearing handles dynamic loads up to 111kN and spins smoothly at speeds up to 9500 RPM. The C3 radial clearance allows for thermal expansion, making it suitable for high-speed applications.
The sheet metal cage ensures durability, while the insulation layer (100-500µm thick) offers reliable electrical resistance of 50-200 MΩ. It’s compliant with RoHS and REACH standards for safe use.
Ideal for electric motors or generators where electrical insulation is crucial. Weighing 2.5kg, it’s a robust choice for industrial machinery.
"*" indicates required fields
How Is 6314/C3VL0241 Bearing Engineered for Reliability?
6314/C3VL0241 Bearing features an insulating coating on the outer ring, preventing electrical current damage.
Its breakdown voltage ranges from 1000 to 3000 V, making it suitable for high-voltage applications.
The sheet metal cage ensures stability, while the C3 radial clearance accommodates thermal expansion.
With a dynamic load rating of 111 kN, it delivers consistent performance under heavy loads.
What Makes 6314/C3VL0241 Bearing Suitable for High-Temperature Applications?
6314/C3VL0241 Bearing’s insulation coating withstands high temperatures, maintaining electrical resistance.
The C3 radial clearance allows for thermal expansion, ensuring smooth operation in varying conditions.
Its reference speed of 9500 r/min ensures efficiency without compromising durability.
The bearing’s robust design and material composition enhance its longevity in demanding environments.
Built for Reliability: 6314/C3VL0241 Bearing
6314/C3VL0241 Bearing is designed with a durable sheet metal cage, reducing wear and tear.
Its electrical resistance of 50-200 MΩ prevents current leakage, protecting machinery.
The insulation coating thickness of 100-500 µm ensures consistent performance under electrical stress.
With a static load rating of 68 kN, it offers reliable support in stationary applications.
Steel vs Ceramic Bearings: Strengths of 6314/C3VL0241 Bearing
6314/C3VL0241 Bearing’s chrome steel construction provides excellent strength and durability.
The insulating coating offers added protection compared to standard steel bearings in electrical applications.
Its dynamic load capacity of 111 kN ensures reliable performance under heavy loads.
The bearing’s design balances electrical insulation with mechanical robustness for versatile use.
Industrial Uses of 6314/C3VL0241 Bearing
6314/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulation coating prevents electrical arcing and extends component life. The C3 clearance ensures smooth operation even under thermal expansion.
Where Is 6314/C3VL0241 Bearing Used?
You’ll often find 6314/C3VL0241 Bearing in wind turbines, where its high dynamic load rating handles variable forces effectively. The sheet metal cage adds durability in these demanding environments.
Perfect Fit for Automation: 6314/C3VL0241 Bearing
In robotic arms, 6314/C3VL0241 Bearing’s insulation properties protect sensitive electronics from stray currents. Its 35mm width provides a compact solution without sacrificing performance.
Medical vs Industrial: Where 6314/C3VL0241 Bearing Excels
While suitable for industrial pumps, 6314/C3VL0241 Bearing also meets medical imaging equipment needs with its precise rotation and electrical safety features. The breakdown voltage range accommodates various power requirements.
How Does 6314/C3VL0241 Bearing Support High-Speed Operations?
With a reference speed of 9500 r/min, 6314/C3VL0241 Bearing works well in spindle applications like CNC machines. The insulation coating remains effective even at these rapid rotations.
