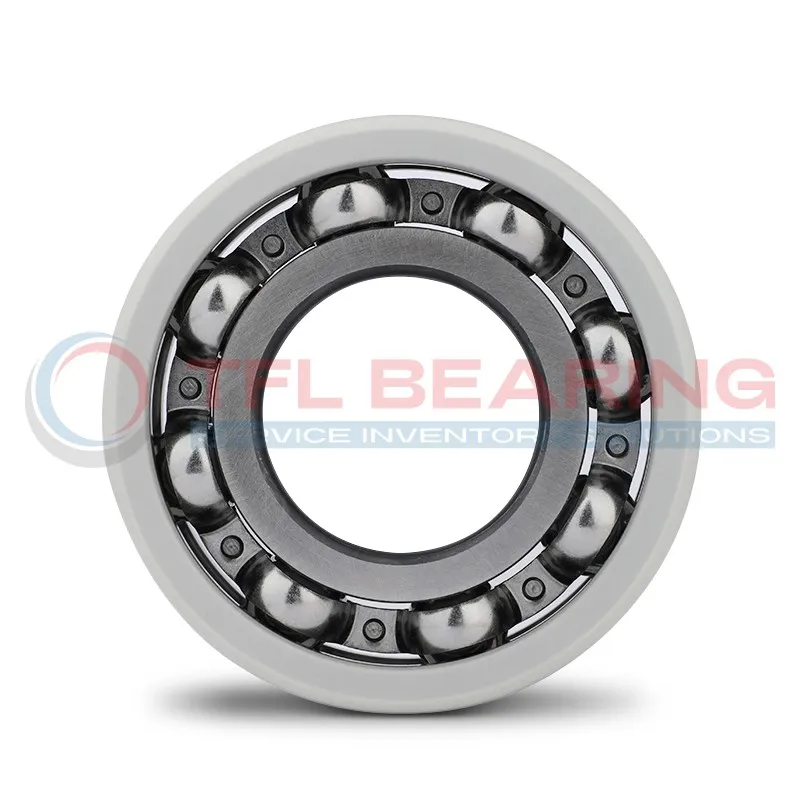

The 6313/C3VL0241 is an electrically insulated ball bearing with a 65mm bore and 140mm outer diameter, designed to prevent electrical currents from passing through. Its outer ring features a special coating that resists voltages up to 3000V, making it safe for use in electric motors.
With a dynamic load rating of 97.5kN and a reference speed of 10000 RPM, it handles heavy loads while spinning smoothly. The C3 radial clearance allows for slight thermal expansion, ideal for high-speed applications.
The sheet metal cage ensures durability, and the insulation layer (100-500µm thick) provides reliable electrical resistance (50-200 MΩ). It’s compliant with RoHS and REACH standards for environmental safety.
Perfect for industrial machinery or wind turbines where electrical insulation is crucial. Weighing 2.05kg, it’s robust yet manageable for its size.
"*" indicates required fields
How Is 6313/C3VL0241 Bearing Engineered for Reliability?
6313/C3VL0241 Bearing features an insulation coating on the outer ring, preventing electrical current damage.
With a breakdown voltage of 1000-3000 V, it ensures safe operation in electrically charged environments.
The sheet metal cage maintains ball alignment, enhancing durability and performance.
Its C3 radial internal clearance allows for thermal expansion, making it suitable for high-speed applications.
Why Choose 6313/C3VL0241 Bearing for Precision Tasks?
6313/C3VL0241 Bearing offers a basic dynamic load rating of 97.5 kN, handling heavy loads with ease.
The insulation coating provides electrical resistance of 50-200 MΩ, reducing the risk of electrical arcing.
Its reference speed of 10,000 r/min ensures efficient performance in demanding conditions.
The precise dimensions (65.0 mm x 140.0 mm x 33.0 mm) make it ideal for compact, high-precision applications.
Built for Reliability: 6313/C3VL0241 Bearing
6313/C3VL0241 Bearing’s insulation coating protects against electrical currents, extending its service life.
The C3 radial clearance accommodates thermal expansion, ensuring stable operation at high speeds.
With a static load rating of 60.0 kN, it provides reliable support in heavy-duty applications.
Its sheet metal cage design reduces friction, promoting smooth and quiet operation.
Steel vs Ceramic Bearings: Strengths of 6313/C3VL0241 Bearing
6313/C3VL0241 Bearing uses chrome steel for durability, combined with an insulating coating for electrical safety.
The insulation layer thickness of 100-500 µm ensures effective protection against electrical damage.
Its high dynamic load rating (97.5 kN) makes it a robust choice for industrial applications.
The bearing’s design balances electrical insulation with mechanical performance, offering versatility.
Industrial Uses of 6313/C3VL0241 Bearing
6313/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulation coating prevents electrical arcing and extends component life. The C3 clearance ensures smooth operation even under thermal expansion.
What Makes 6313/C3VL0241 Bearing a Preferred Choice?
In wind turbines, 6313/C3VL0241 Bearing handles high dynamic loads while its insulation protects against stray currents. The sheet metal cage offers durability in variable weather conditions.
Built for Heavy-Duty Use: 6313/C3VL0241 Bearing
For industrial pumps, 6313/C3VL0241 Bearing’s high breakdown voltage makes it ideal for environments with electrical interference. Its robust design maintains performance under continuous operation.
Medical vs Industrial: Where 6313/C3VL0241 Bearing Excels
While 6313/C3VL0241 Bearing is suited for MRI machines due to its non-conductive properties, it also shines in factory automation. The consistent electrical resistance ensures reliability in both settings.
Perfect Fit for Automation: 6313/C3VL0241 Bearing
In robotic arms, 6313/C3VL0241 Bearing’s insulation coating reduces downtime caused by electrical damage. The high reference speed supports precise, repetitive movements.
