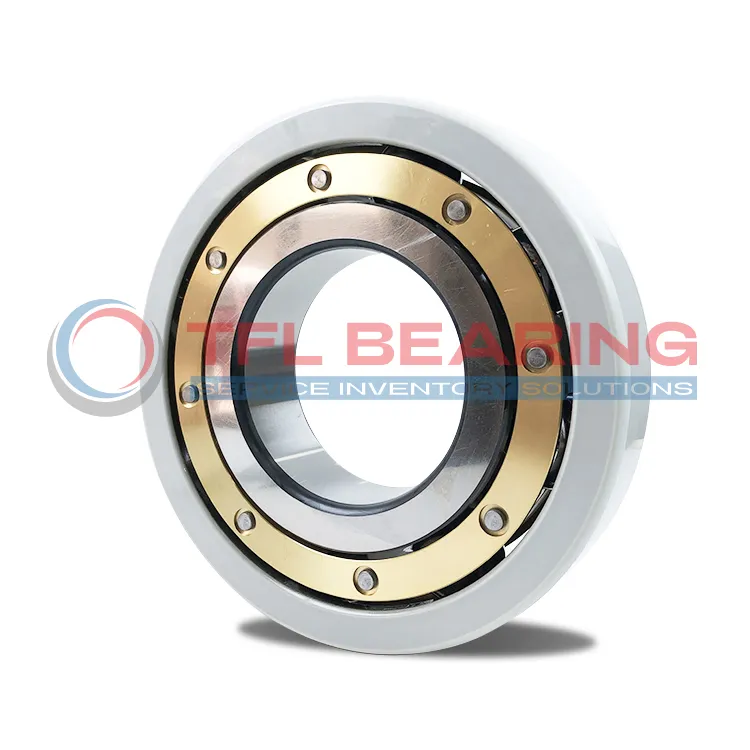

The 6312M/C4VL0241 is an electrically insulated ball bearing with a 60mm bore and 130mm outer diameter, designed to prevent electrical currents from passing through. It features a durable brass cage and can handle dynamic loads up to 85.2 kN.
Its outer ring is coated with an insulating layer, offering a breakdown voltage of 1000-3000V and electrical resistance of 50-200 MΩ. This makes it ideal for use in electric motors or generators where electrical insulation is crucial.
The bearing operates smoothly at speeds up to 11000 RPM and works well in various industrial settings. With a C4 radial internal clearance, it provides reliable performance under different load conditions.
Weighing 1.9kg, it’s a robust choice for applications requiring both mechanical strength and electrical insulation. Compliant with RoHS and REACH standards, it’s safe for widespread use.
"*" indicates required fields
How Is 6312M/C4VL0241 Bearing Engineered for Reliability?
6312M/C4VL0241 Bearing features an insulating coating on the outer ring, preventing electrical currents from damaging the bearing.
The brass cage ensures smooth operation and reduces friction, even at high speeds up to 11,000 r/min.
With a breakdown voltage of 1000-3000 V, it is ideal for applications where electrical insulation is crucial.
Its C4 radial internal clearance allows for thermal expansion, maintaining performance under varying conditions.
What Makes 6312M/C4VL0241 Bearing Suitable for High-Temperature Applications?
6312M/C4VL0241 Bearing’s insulating coating withstands high temperatures, ensuring reliable performance in demanding environments.
The brass cage provides stability and reduces wear, even under heavy loads up to 85.2 kN.
Its electrical resistance of 50-200 MΩ prevents current passage, protecting machinery from damage.
The C4 clearance accommodates thermal expansion, making it suitable for variable operating conditions.
Designed for Durability: 6312M/C4VL0241 Bearing
6312M/C4VL0241 Bearing is built with a robust brass cage, enhancing its longevity and reducing maintenance needs.
The insulating coating on the outer ring offers protection against electrical currents, extending service life.
With a static load rating of 52.0 kN, it handles heavy loads reliably.
Its wide operating temperature range and high-speed capability make it versatile for various applications.
Steel vs Ceramic Bearings: Strengths of 6312M/C4VL0241 Bearing
6312M/C4VL0241 Bearing combines the durability of steel with the electrical insulation benefits of a specialised coating.
The brass cage ensures smooth operation, while the C4 clearance accommodates thermal changes.
Its high dynamic load rating of 85.2 kN makes it suitable for heavy-duty applications.
The insulating layer provides reliable protection against electrical currents, ensuring long-term performance.
Industrial Uses of 6312M/C4VL0241 Bearing
This bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical currents from causing damage. The brass cage ensures smooth operation even at high speeds.
Where Is 6312M/C4VL0241 Bearing Used?
You’ll often find it in wind turbines and industrial pumps, where its high dynamic load rating handles heavy-duty conditions. The C4 clearance allows for thermal expansion in demanding environments.
Perfect Fit for Automation: 6312M/C4VL0241 Bearing
In robotic systems, 6312M/C4VL0241 Bearing’s insulation protects sensitive electronics from stray currents. Its breakdown voltage range makes it reliable for precision applications.
Medical vs Industrial: Where 6312M/C4VL0241 Bearing Excels
While it’s not typically used in medical devices, 6312M/C4VL0241 Bearing shines in industrial settings like conveyor systems. The coating’s thickness ensures long-term insulation performance.
Essential Roles of 6312M/C4VL0241 Bearing
For HVAC systems, this bearing’s resistance to electrical currents makes it a safe choice for variable-speed fans. The reference speed of 11000 r/min suits high-performance needs.
