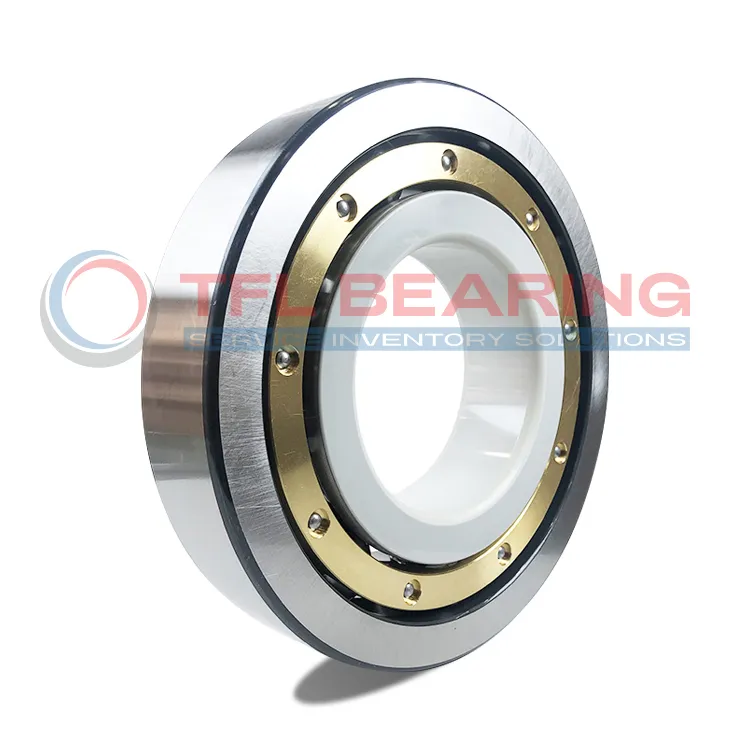

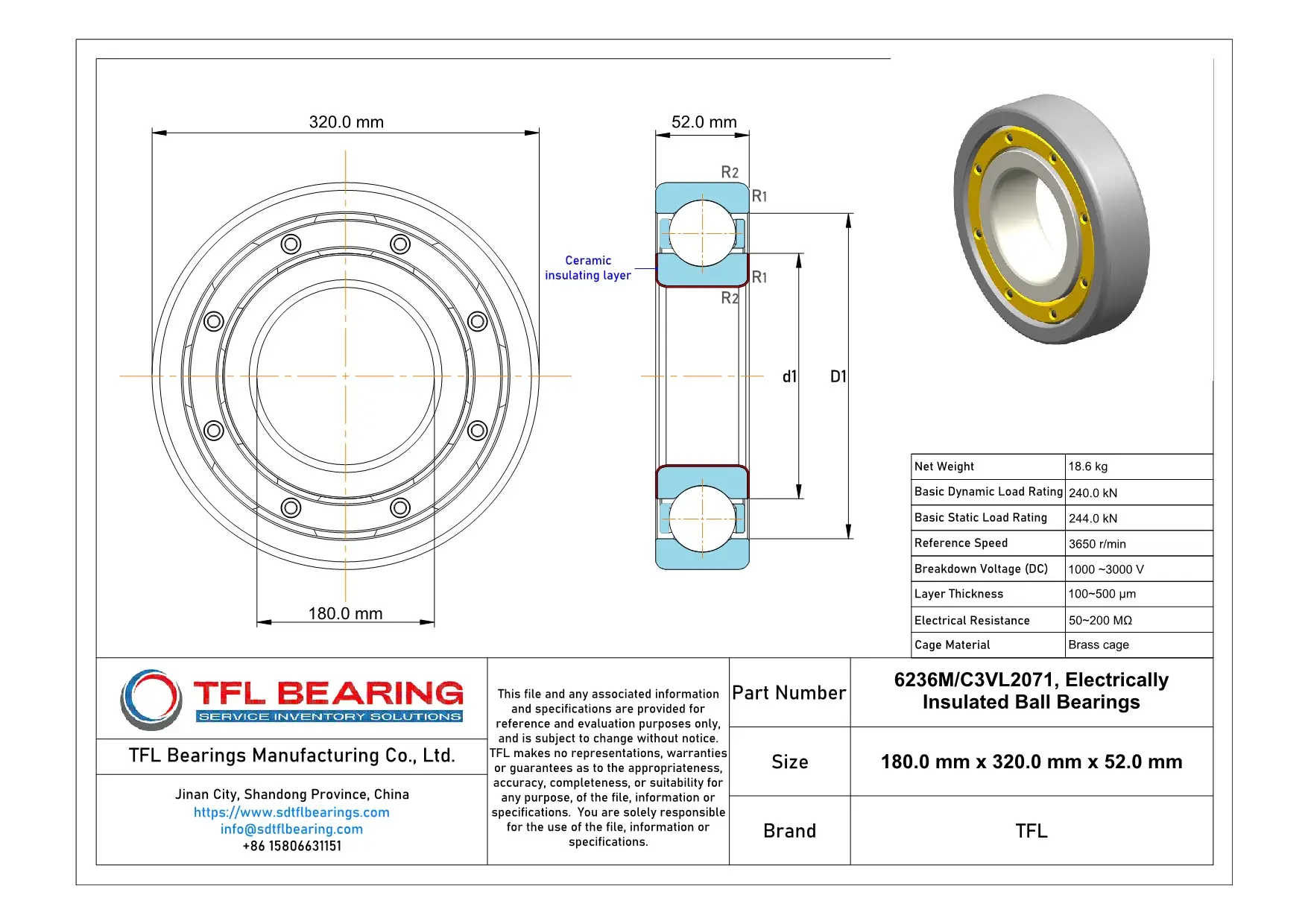

The 6236M/C3VL2071 is an electrically insulated ball bearing with a 180mm bore and 320mm outer diameter, designed to handle both dynamic and static loads up to 240kN and 244kN respectively. Its inner ring features a special insulation coating to prevent electrical currents from damaging the bearing.
With a reference speed of 3650 r/min, it operates smoothly in high-speed applications. The brass cage ensures durability, while the C3 radial clearance allows for thermal expansion in demanding conditions.
The insulating coating provides a breakdown voltage of 1000-3000V and electrical resistance of 50-200 MΩ, making it ideal for electric motors or generators. It weighs 18.6kg and complies with RoHS and REACH standards for safe use.
This bearing is well-suited for industrial machinery where electrical insulation is crucial, offering reliable performance in challenging environments. Its robust design and insulation properties make it a practical choice for various applications.
"*" indicates required fields
How Is 6236M/C3VL2071 Bearing Engineered for Reliability?
6236M/C3VL2071 Bearing features an inner ring insulation coating, providing excellent electrical resistance of 50~200 MΩ.
This design prevents electrical arcing, making it ideal for applications with stray currents.
The brass cage ensures smooth operation, while the C3 radial clearance accommodates thermal expansion.
With a breakdown voltage of 1000~3000 V, it offers reliable performance in electrically demanding environments.
6236M/C3VL2071 Bearing’s dynamic load rating of 240.0 kN ensures durability under heavy loads.
Its reference speed of 3650 r/min balances efficiency and longevity.
Industrial Uses of 6236M/C3VL2071 Bearing
6236M/C3VL2071 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical arcing and extends component life. The brass cage adds durability, making it suitable for high-speed industrial applications.
Where Is 6236M/C3VL2071 Bearing Used?
In wind turbines, 6236M/C3VL2071 Bearing handles high dynamic loads while its insulation protects against stray currents. The C3 clearance ensures reliable performance even under thermal expansion.
Built for Heavy-Duty Use: 6236M/C3VL2071 Bearing
This bearing excels in railway traction systems, where its high breakdown voltage safeguards against electrical damage. The robust design copes well with vibrations and variable loads.
Medical vs Industrial: Where 6236M/C3VL2071 Bearing Excels
While not typically used in medical devices, 6236M/C3VL2071 Bearing shines in industrial MRI equipment power systems. Its insulation properties prevent interference with sensitive diagnostics.
Automotive vs Aerospace: Applications of 6236M/C3VL2071 Bearing
In hybrid vehicle drivetrains, 6236M/C3VL2071 Bearing manages electrical isolation needs effectively. For aerospace ground equipment, it provides reliable insulation in high-voltage test systems.
