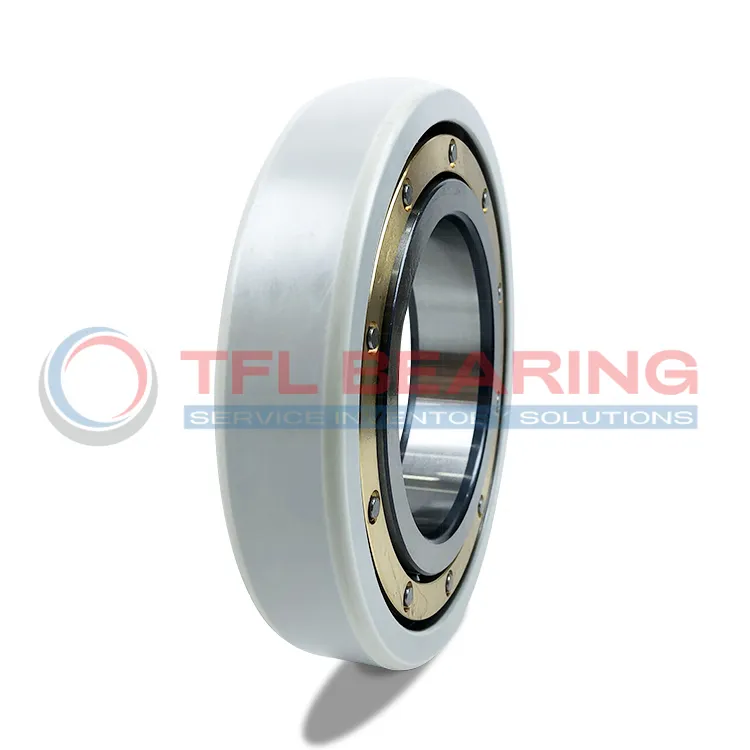

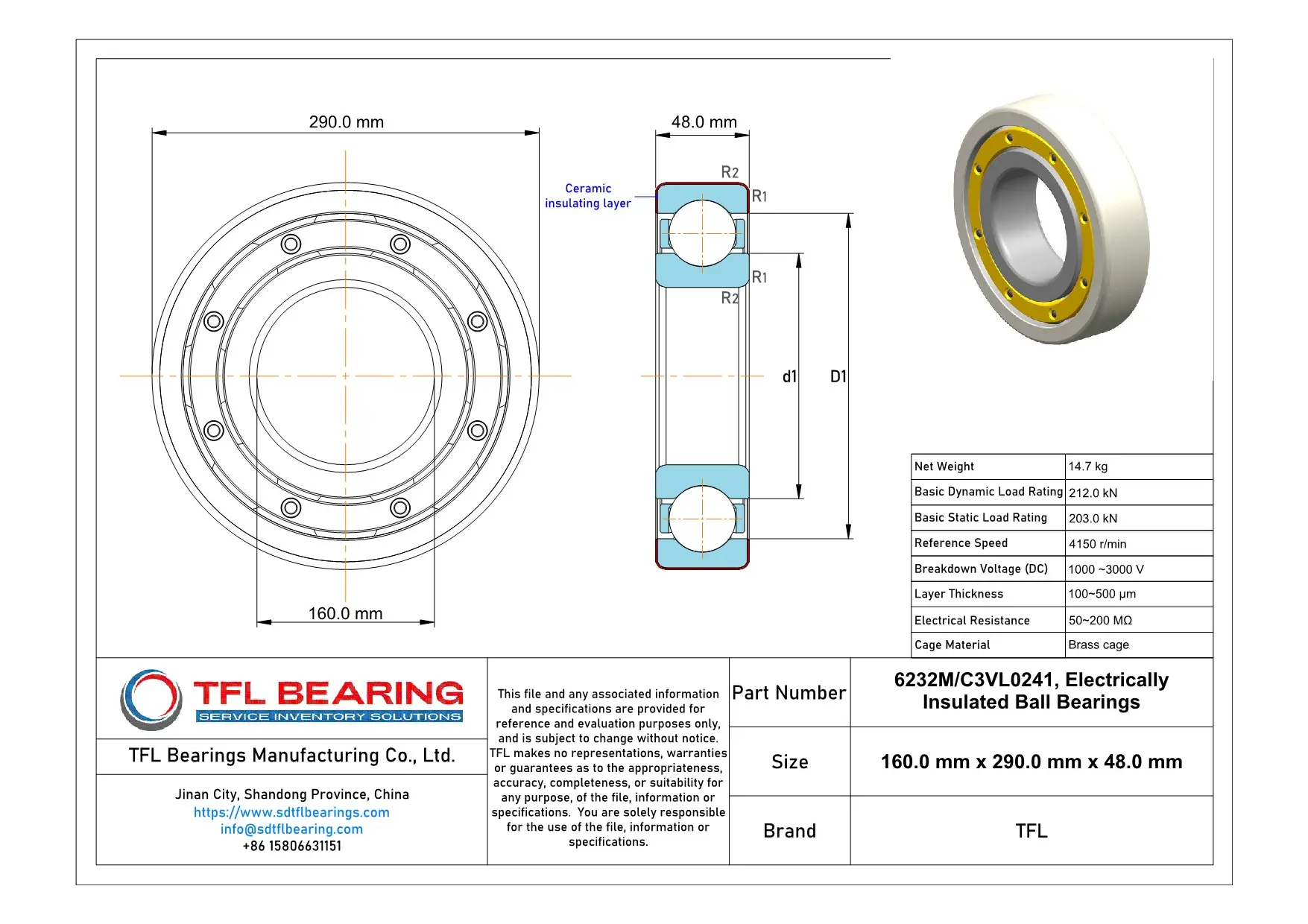

The 6232M/C3VL0241 is an electrically insulated ball bearing with a 160mm bore and 290mm outer diameter, designed to prevent electrical currents from passing through. Its robust construction handles dynamic loads up to 212 kN and static loads up to 203 kN.
The outer ring features a special insulation coating, providing a breakdown voltage of 1000-3000V and electrical resistance of 50-200 MΩ. The brass cage ensures smooth operation at speeds up to 4150 RPM, even with C3 radial clearance for flexibility in fitting.
This bearing is ideal for electric motors or generators where electrical insulation is crucial. Its durable design and compliance with RoHS and REACH standards make it a reliable choice for industrial applications. Weighing 14.7kg, it balances strength and practicality.
"*" indicates required fields
How Is 6232M/C3VL0241 Bearing Engineered for Reliability?
6232M/C3VL0241 Bearing features an insulating coating on the outer ring, preventing electrical current damage.
The brass cage ensures smooth operation and reduces friction, enhancing durability.
With a basic dynamic load rating of 212.0 kN, it handles heavy loads efficiently.
Its reference speed of 4150 r/min makes it suitable for high-speed applications.
The breakdown voltage of 1000-3000 V ensures protection in electrically charged environments.
6232M/C3VL0241 Bearing’s C3 radial internal clearance allows for thermal expansion under load.
Industrial Uses of 6232M/C3VL0241 Bearing
This bearing is commonly used in electric motors and generators, where its insulation coating prevents electrical currents from damaging the machinery. The brass cage adds durability, making it suitable for high-speed operations.
Where Is 6232M/C3VL0241 Bearing Used?
You’ll find it in wind turbines and industrial pumps, where its ability to handle dynamic loads and resist electrical arcing is invaluable. The C3 clearance ensures smooth performance even under varying temperatures.
Built for Heavy-Duty Use: 6232M/C3VL0241 Bearing
In conveyor systems and heavy machinery, this bearing’s robust design and high load capacity keep operations running smoothly. The insulation coating also extends its lifespan in electrically noisy environments.
Automotive vs Aerospace: Applications of 6232M/C3VL0241 Bearing
While it’s not typically used in aerospace, 6232M/C3VL0241 Bearing excels in automotive applications like hybrid vehicle motors. Its insulation properties protect against stray currents, ensuring reliable performance.
Key Fields for 6232M/C3VL0241 Bearing
Medical imaging devices benefit from this bearing’s precision and electrical insulation, which prevent interference with sensitive equipment. The high breakdown voltage makes it a safe choice for critical applications.
