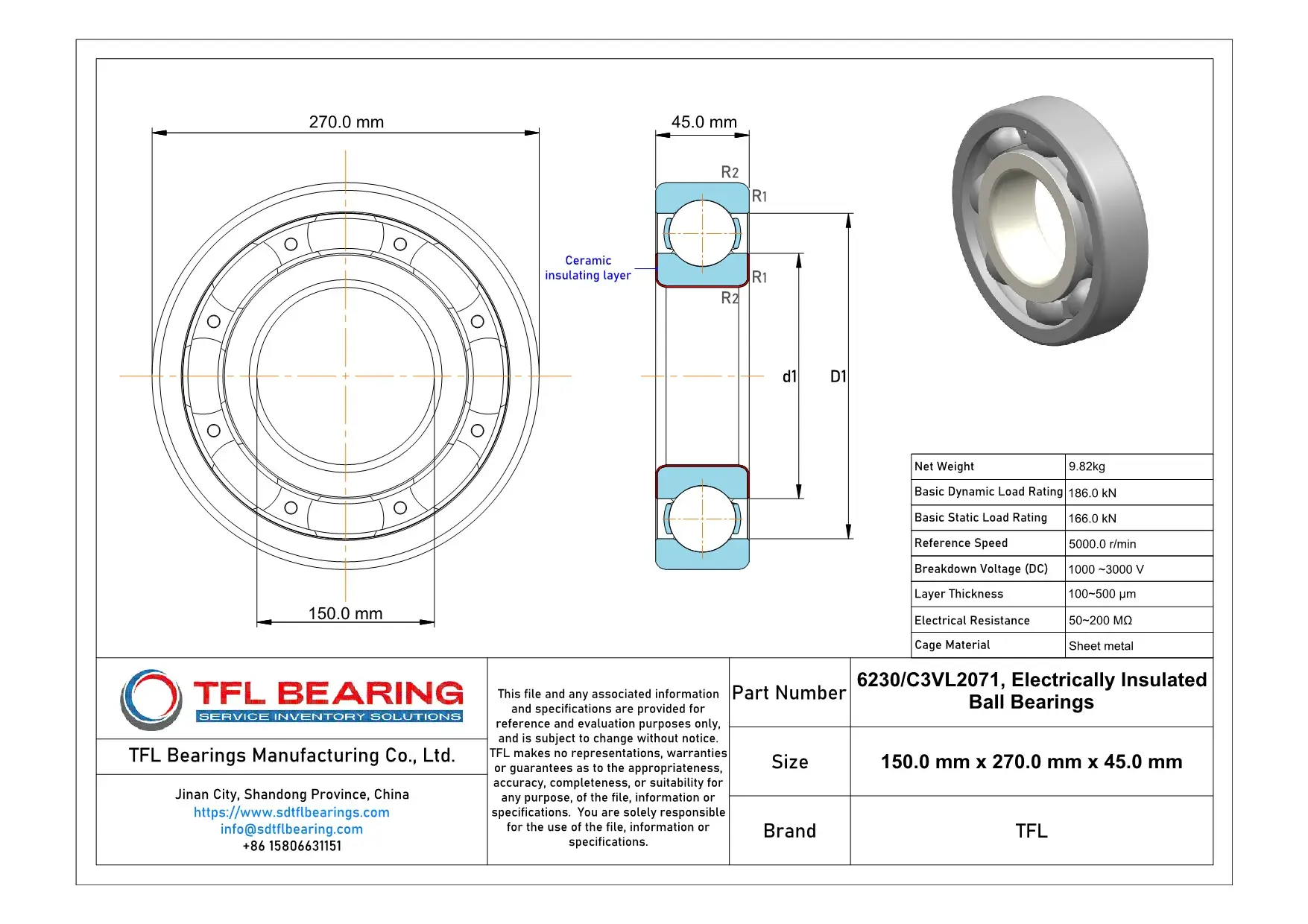

The 6230/C3VL2071 is an electrically insulated ball bearing with a 150mm bore and 270mm outer diameter, designed to handle both dynamic and static loads efficiently. Its inner ring features a special insulation coating to prevent electrical currents from passing through.
With a basic dynamic load rating of 186kN, it can handle heavy-duty applications while maintaining smooth operation at speeds up to 5000 RPM. The C3 radial internal clearance ensures reliable performance under varying temperatures.
The insulation coating provides a breakdown voltage of 1000-3000V and electrical resistance of 50-200 MΩ, making it ideal for electric motors or generators. The sheet metal cage adds durability without compromising performance.
Weighing 9.82kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a safe choice for environments where electrical insulation is crucial.
"*" indicates required fields
How Is 6230/C3VL2071 Bearing Engineered for Reliability?
6230/C3VL2071 Bearing features an inner ring insulation coating, preventing electrical currents from damaging the bearing.
This design ensures smooth operation in electrically charged environments, enhancing its reliability.
With a basic dynamic load rating of 186.0 kN, 6230/C3VL2071 Bearing handles heavy loads efficiently.
The C3 radial internal clearance allows for thermal expansion, making it suitable for high-speed applications.
6230/C3VL2071 Bearing’s breakdown voltage ranges from 1000 to 3000 V, offering protection against electrical arcing.
Its sheet metal cage maintains ball alignment, reducing friction and wear.
The bearing’s electrical resistance of 50~200 MΩ ensures consistent performance in demanding conditions.
Its reference speed of 5000.0 r/min makes it ideal for high-speed machinery.
Industrial Uses of 6230/C3VL2071 Bearing
6230/C3VL2071 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical currents from damaging the bearing. This makes it a reliable choice for industries dealing with high-voltage equipment.
In wind turbines, 6230/C3VL2071 Bearing helps manage both mechanical loads and electrical insulation needs. Its robust design ensures long-term performance even in harsh environmental conditions.
For railway applications, 6230/C3VL2071 Bearing provides essential insulation in traction motors, reducing the risk of electrical arcing. The C3 radial clearance also accommodates thermal expansion during operation.
What Makes 6230/C3VL2071 Bearing a Preferred Choice?
6230/C3VL2071 Bearing is ideal for industrial pumps, where its insulation properties protect against stray currents. The sheet metal cage adds durability, making it suitable for continuous operation.
In conveyor systems, 6230/C3VL2071 Bearing handles heavy loads while maintaining electrical safety. Its high dynamic load rating ensures reliable performance in demanding settings.
For manufacturing equipment, 6230/C3VL2071 Bearing offers a balance of mechanical strength and electrical insulation. The breakdown voltage range makes it versatile for various power applications.
Built for Heavy-Duty Use: 6230/C3VL2071 Bearing
6230/C3VL2071 Bearing is well-suited for mining machinery, where electrical insulation and load capacity are critical. The C3 clearance allows for smoother operation under heavy loads.
In steel production, 6230/C3VL2071 Bearing withstands high temperatures and electrical interference. Its chrome steel construction ensures durability in extreme industrial environments.
For marine applications, 6230/C3VL2071 Bearing resists corrosion while providing electrical insulation. The wide temperature range makes it adaptable to varying operational conditions.
Automotive vs Aerospace: Applications of 6230/C3VL2071 Bearing
In electric vehicles, 6230/C3VL2071 Bearing prevents electrical damage in motor systems. Its high-speed capability ensures efficient performance in modern automotive designs.
For aerospace equipment, 6230/C3VL2071 Bearing offers reliable insulation in avionics and auxiliary systems. The lightweight design helps maintain fuel efficiency without compromising safety.
In hybrid vehicles, 6230/C3VL2071 Bearing supports both mechanical and electrical requirements. The insulation coating ensures longevity in high-voltage environments.
