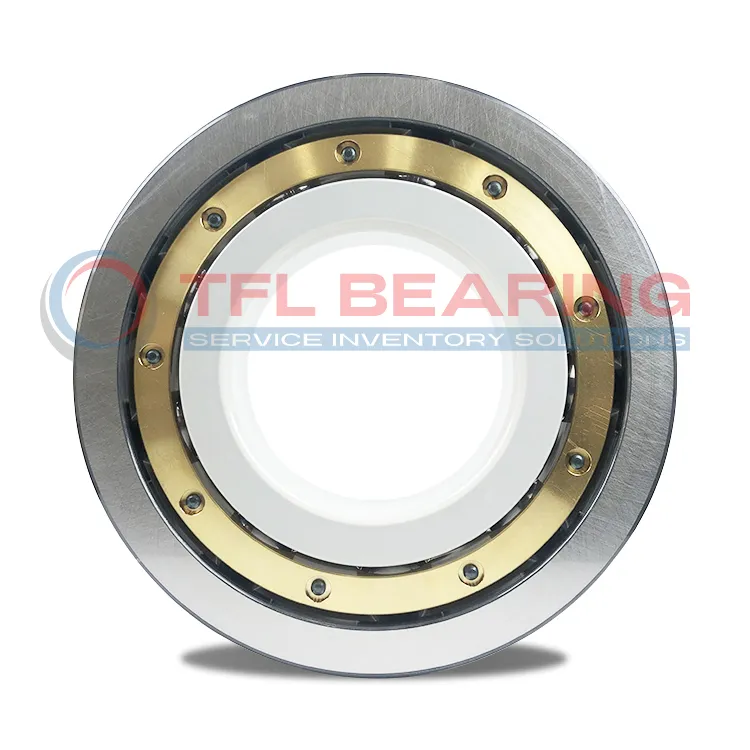

The 6224M/C4VL2071 is an electrically insulated ball bearing with a 120mm bore and 215mm outer diameter, designed to handle both dynamic and static loads efficiently. Its inner ring features a special coating to prevent electrical currents from damaging the bearing.
With a basic dynamic load rating of 146kN and a reference speed of 6300 RPM, it performs reliably in high-speed applications. The brass cage ensures smooth operation and durability under heavy loads.
The insulating coating offers a breakdown voltage of 1000-3000V and electrical resistance of 50-200 MΩ, making it ideal for electric motors or generators. Its C4 radial clearance allows for thermal expansion in demanding conditions.
Weighing 6.4kg, this RoHS and REACH compliant bearing is a robust choice for industrial machinery where electrical insulation is crucial. The 100-500µm coating thickness provides long-term protection against electrical damage.
"*" indicates required fields
How Does 6224M/C4VL2071 Bearing Resist Electrical Current?
6224M/C4VL2071 Bearing features an inner ring insulation coating, preventing electrical current from passing through.
The coating has a breakdown voltage of 1000-3000 V, making it suitable for high-voltage environments.
Its electrical resistance ranges from 50-200 MΩ, ensuring reliable insulation performance.
The brass cage further enhances durability and reduces wear in demanding applications.
Performance Features of 6224M/C4VL2071 Bearing
6224M/C4VL2071 Bearing offers a basic dynamic load rating of 146.0 kN, handling heavy loads with ease.
Its reference speed of 6300 r/min ensures smooth operation in high-speed applications.
The C4 radial internal clearance provides optimal performance under varying thermal conditions.
With a net weight of 6.4kg, it balances strength and practicality.
Engineered for Precision: 6224M/C4VL2071 Bearing

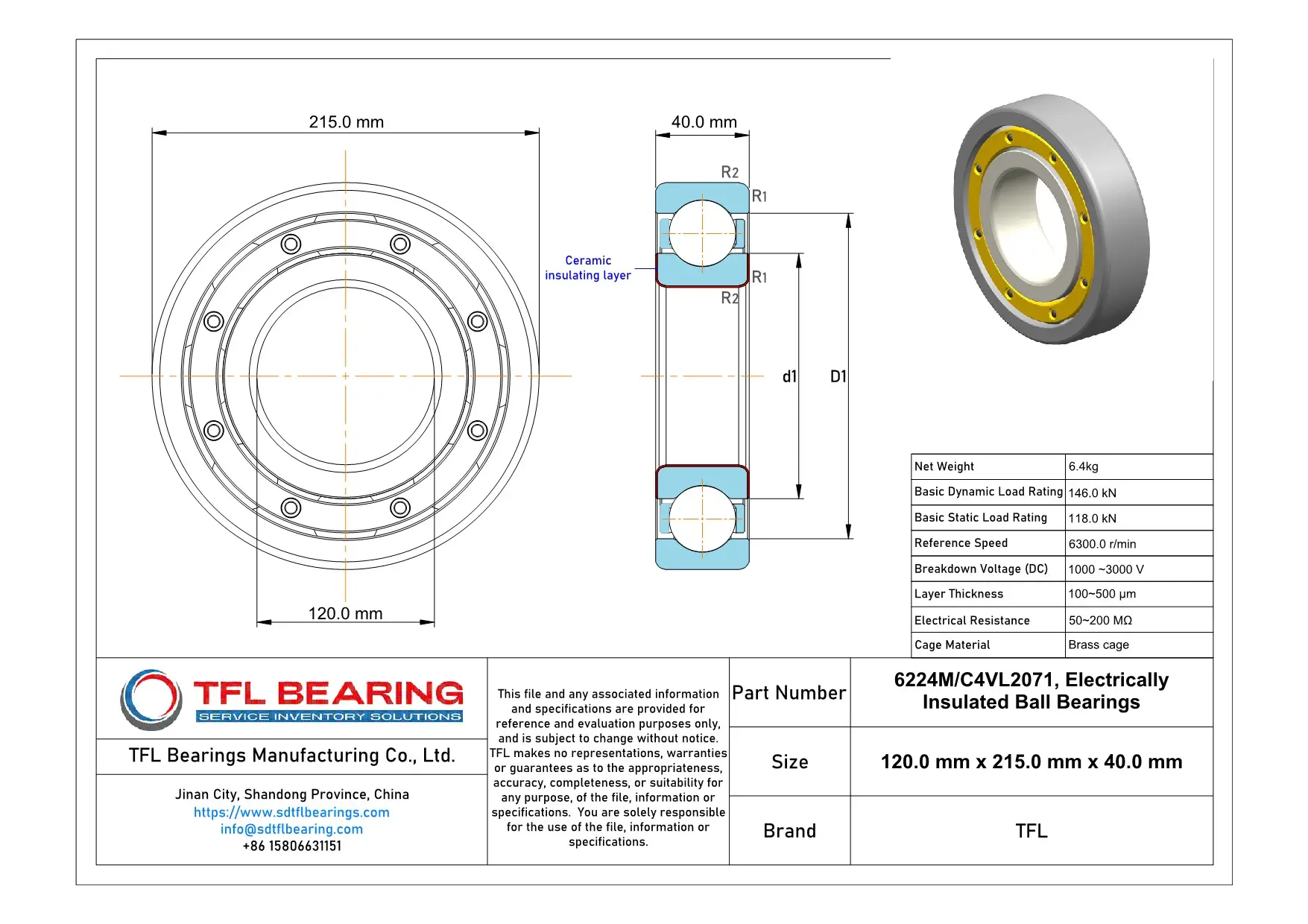

6224M/C4VL2071 Bearing is designed with precise dimensions of 120.0 mm x 215.0 mm x 40.0 mm for accurate fitting.
The brass cage maintains ball alignment, reducing friction and noise during operation.
Its basic static load rating of 118.0 kN ensures stability under heavy loads.
The bearing complies with ROHS and REACH standards, meeting environmental regulations.
Industrial Uses of 6224M/C4VL2071 Bearing
The 6224M/C4VL2071 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical arcing.
Its brass cage and C4 clearance make it suitable for high-speed applications, ensuring reliable performance in demanding environments.
Where Is 6224M/C4VL2071 Bearing Used?
You’ll often find 6224M/C4VL2071 Bearing in wind turbines, where its insulation properties protect against stray currents.
The high dynamic load rating also makes it a solid choice for industrial gearboxes handling heavy loads.
Built for Heavy-Duty Use: 6224M/C4VL2071 Bearing
In conveyor systems, 6224M/C4VL2071 Bearing handles both radial and axial loads with ease.
The breakdown voltage range ensures safety in electrically noisy environments, like welding equipment.
Automotive vs Aerospace: Applications of 6224M/C4VL2071 Bearing
In automotive alternators, 6224M/C4VL2071 Bearing’s insulation prevents damage from electrical currents.
For aerospace applications, its lightweight design and high-speed capability are ideal for auxiliary power units.
Perfect Fit for Automation: 6224M/C4VL2071 Bearing
Robotic arms benefit from 6224M/C4VL2071 Bearing’s precise movement and electrical insulation.
The consistent performance makes it a reliable choice for automated assembly lines.
