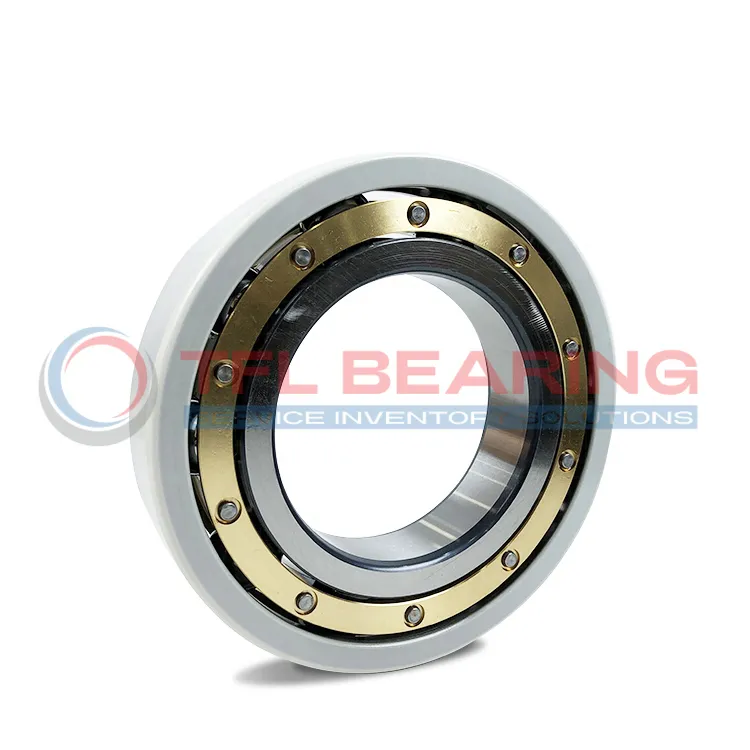

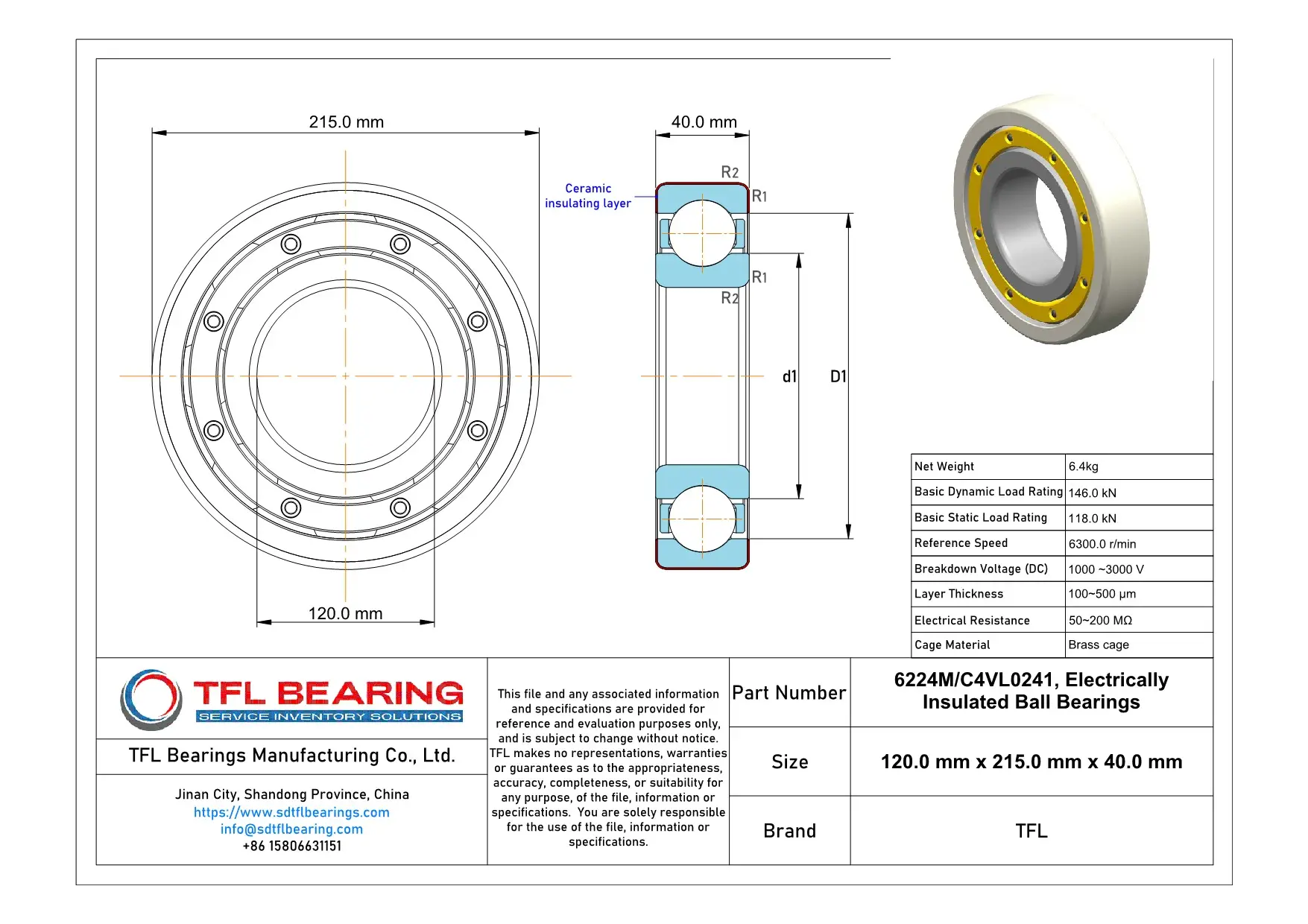

The 6224M/C4VL0241 is an electrically insulated ball bearing with a 120mm bore and 215mm outer diameter, designed to prevent electrical currents from passing through. Its outer ring features a special coating with a breakdown voltage of 1000-3000V, making it safe for high-voltage environments.
With a dynamic load rating of 146kN and a reference speed of 6300 RPM, it handles heavy loads while maintaining smooth rotation. The brass cage adds durability and reduces friction for long-lasting performance.
The insulation layer is 100-500µm thick, providing reliable electrical resistance of 50-200 MΩ. This makes it ideal for electric motors, generators, or wind turbines where electrical insulation is crucial.
Weighing 6.4kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a dependable choice for modern applications.
"*" indicates required fields
How Is 6224M/C4VL0241 Bearing Engineered for Reliability?
6224M/C4VL0241 Bearing features an insulation coating on the outer ring, preventing electrical current damage.
This design ensures reliable operation in electrically charged environments, extending its service life.
The brass cage maintains ball alignment, reducing friction and wear during high-speed rotations.
With a reference speed of 6,300 r/min, it delivers consistent performance under demanding conditions.
Its basic dynamic load rating of 146 kN allows it to handle heavy loads with ease.
The C4 radial internal clearance ensures smooth operation even with thermal expansion.
The insulation layer provides a breakdown voltage of 1,000 to 3,000 V, safeguarding against electrical failures.
This makes 6224M/C4VL0241 Bearing ideal for applications where electrical insulation is crucial.
Common Applications of 6224M/C4VL0241 Bearing
6224M/C4VL0241 Bearing is widely used in electric motors and generators, where its insulating coating prevents electrical arcing and extends component life. The brass cage ensures smooth rotation even at high speeds.
In wind turbine systems, 6224M/C4VL0241 Bearing handles variable loads while maintaining electrical isolation. Its C4 clearance accommodates thermal expansion in demanding environments.
For industrial automation, 6224M/C4VL0241 Bearing supports robotic arms and conveyor drives, where electrical insulation reduces downtime. The high dynamic load rating makes it suitable for continuous operation.
In railway applications, 6224M/C4VL0241 Bearing provides reliable performance in traction motors, resisting electrical currents. The breakdown voltage range ensures safety in high-voltage conditions.
Where Is 6224M/C4VL0241 Bearing Used?
You’ll often find 6224M/C4VL0241 Bearing in medical imaging equipment, where electrical insulation prevents interference with sensitive electronics. The precise dimensions ensure quiet operation.
The bearing also works well in elevator systems, handling vertical loads while preventing stray currents. Its 6300 r/min rating supports smooth vertical movement.
Built for Heavy-Duty Use: 6224M/C4VL0241 Bearing
In steel production machinery, 6224M/C4VL0241 Bearing withstands high temperatures and electrical fields. The coating thickness can be adjusted for specific voltage requirements.
For printing presses, this bearing reduces electrical damage to rollers while maintaining print quality. The 40mm width provides stability during high-speed operation.
Automotive vs Aerospace: Applications of 6224M/C4VL0241 Bearing
In electric vehicles, 6224M/C4VL0241 Bearing prevents current leakage in drive motors. The 120mm bore fits standard EV motor shafts perfectly.
For aircraft systems, the bearing’s lightweight design (6.4kg) helps reduce fuel consumption while providing electrical safety. The ROHS compliance meets aviation environmental standards.
