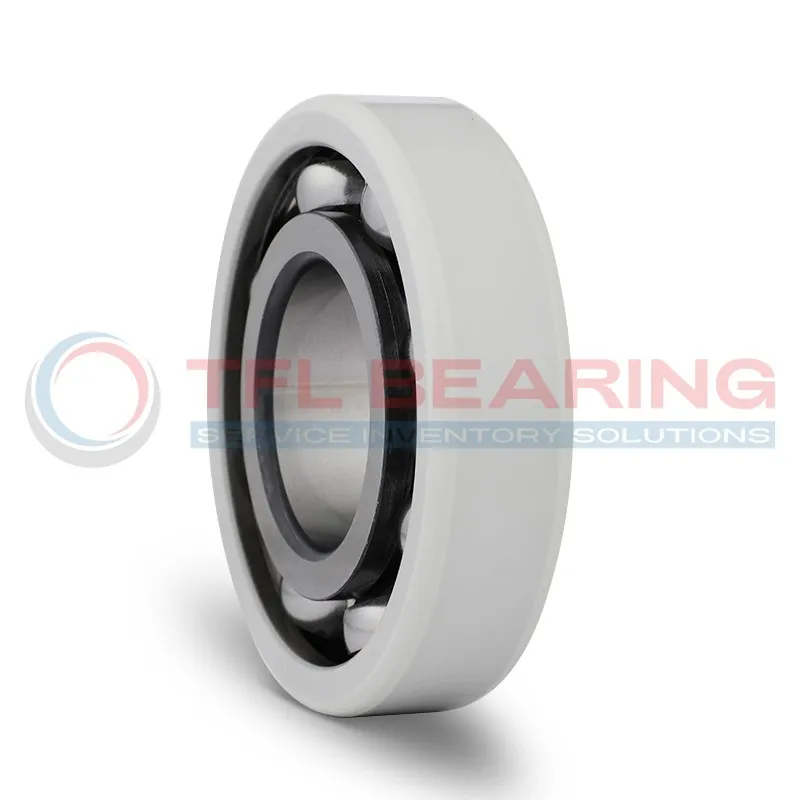

The 6222/C3VL0241 is an electrically insulated ball bearing with a 110mm bore and 200mm outer diameter, designed to prevent electrical currents from passing through. Its outer ring features a special coating that provides insulation, with a breakdown voltage of up to 3000V.
This bearing handles dynamic loads up to 151kN and spins smoothly at speeds up to 6700 RPM. The sheet metal cage ensures durability, while the C3 radial clearance allows for thermal expansion in demanding conditions.
Ideal for electric motors or generators, it prevents damage from stray currents. The coating thickness ranges from 100 to 500µm, offering reliable insulation with resistance of 50-200 MΩ.
Weighing 4.25kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a safe choice for sensitive electrical applications.
"*" indicates required fields
How Is 6222/C3VL0241 Bearing Engineered for Reliability?
6222/C3VL0241 Bearing features an insulating coating on the outer ring, preventing electrical currents from damaging the bearing.
This design ensures reliable operation in electrically charged environments, reducing downtime.
The basic dynamic load rating of 151.0 kN allows 6222/C3VL0241 Bearing to handle heavy loads with ease.
Its C3 radial internal clearance provides optimal performance under varying thermal conditions.
With a breakdown voltage of 1000~3000 V, 6222/C3VL0241 Bearing offers excellent electrical insulation.
The sheet metal cage maintains ball alignment, ensuring smooth rotation even at high speeds.
6222/C3VL0241 Bearing’s reference speed of 6700 r/min makes it suitable for high-speed applications.
Its compliant ROHS and REACH status ensures it meets environmental and safety standards.
Industrial Uses of 6222/C3VL0241 Bearing
6222/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulation coating prevents electrical arcing and extends component life. The C3 radial clearance ensures smooth operation even under thermal expansion.
Where Is 6222/C3VL0241 Bearing Used?
You’ll often find 6222/C3VL0241 Bearing in wind turbines, where its high dynamic load rating handles variable forces. The breakdown voltage range makes it reliable in high-voltage environments.
Built for Heavy-Duty Use: 6222/C3VL0241 Bearing
In industrial pumps, 6222/C3VL0241 Bearing’s sheet metal cage provides stability under continuous operation. Its electrical resistance properties also reduce downtime in harsh conditions.
Automotive vs Aerospace: Applications of 6222/C3VL0241 Bearing
While 6222/C3VL0241 Bearing suits hybrid vehicle drivetrains, its lightweight design also fits aerospace actuators. The insulation coating works well in both high-vibration and high-altitude scenarios.
Perfect Fit for Automation: 6222/C3VL0241 Bearing
6222/C3VL0241 Bearing excels in robotic arms, where precision and electrical safety are key. The reference speed of 6700 r/min ensures quick, reliable movements in automated systems.
