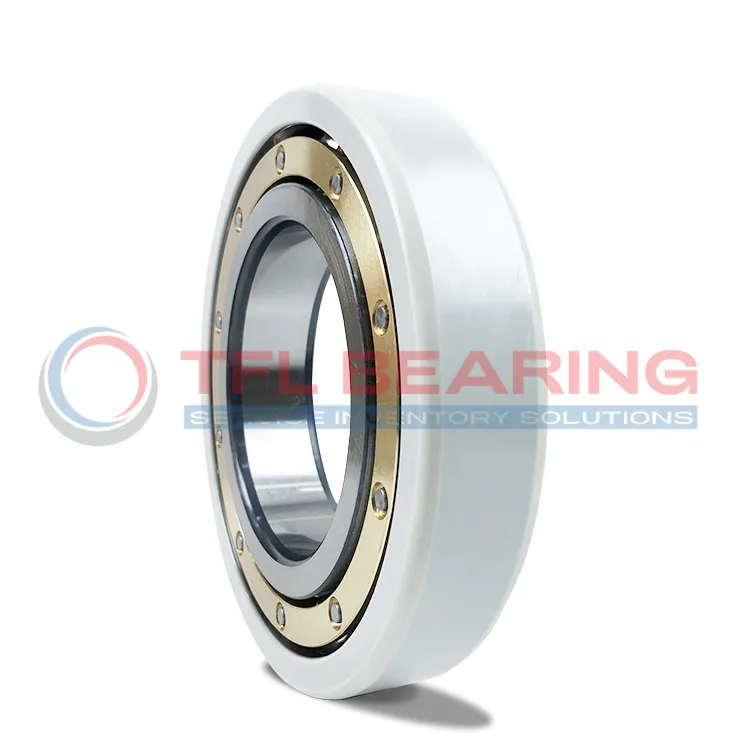

The 6219M/C3VL0241 is an electrically insulated ball bearing with a 95mm bore and 170mm outer diameter, designed to prevent electrical currents from passing through. Its outer ring features a special coating that provides insulation, making it ideal for electric motors or generators.
With a dynamic load rating of 114kN and a static load rating of 81.5kN, it handles heavy loads while maintaining smooth operation. The brass cage ensures durability, and it can reach speeds up to 8000 RPM.
The insulation coating offers a breakdown voltage of 1000-3000V and electrical resistance of 50-200 MΩ, protecting against electrical damage. Its C3 radial clearance allows for thermal expansion in high-speed applications.
Weighing 2.92kg, this bearing is robust yet manageable for installation. Compliant with RoHS and REACH standards, it’s a reliable choice for industries where electrical insulation is crucial.
"*" indicates required fields
Why Choose 6219M/C3VL0241 Bearing for Precision Tasks?
6219M/C3VL0241 Bearing features an insulating coating on the outer ring, preventing electrical current passage.
This design ensures reliable performance in electrically sensitive environments.
With a breakdown voltage of 1000-3000V, 6219M/C3VL0241 Bearing offers excellent electrical insulation.
Its brass cage enhances durability and maintains smooth operation under high speeds.
The C3 radial internal clearance allows for thermal expansion, making it suitable for varying temperatures.
6219M/C3VL0241 Bearing’s dynamic load rating of 114 kN ensures robust performance in demanding applications.
Its electrical resistance of 50-200 MΩ minimises energy loss and improves efficiency.
The bearing’s dimensions and weight are optimised for easy integration into various systems.
Industrial Uses of 6219M/C3VL0241 Bearing
6219M/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical arcing and extends component life. The brass cage adds durability, making it suitable for high-speed industrial environments.
Where Is 6219M/C3VL0241 Bearing Used?
In wind turbines, 6219M/C3VL0241 Bearing handles both radial and axial loads while resisting electrical currents that can cause damage. Its C3 clearance ensures reliable performance under varying thermal conditions.
Built for Heavy-Duty Use: 6219M/C3VL0241 Bearing
This bearing excels in conveyor systems and pumps, where its high dynamic load rating (114 kN) supports continuous operation. The insulation coating also makes it a safe choice for equipment exposed to stray currents.
Medical vs Industrial: Where 6219M/C3VL0241 Bearing Excels
While not typically used in medical devices, 6219M/C3VL0241 Bearing is ideal for industrial automation, particularly in robotic arms. Its breakdown voltage range (1000-3000V) ensures safety in electrically noisy environments.
Practical Applications of 6219M/C3VL0241 Bearing
For railway traction motors, 6219M/C3VL0241 Bearing provides reliable insulation against track currents. The 8000 r/min speed rating makes it versatile for both high-speed and heavy-load scenarios.
