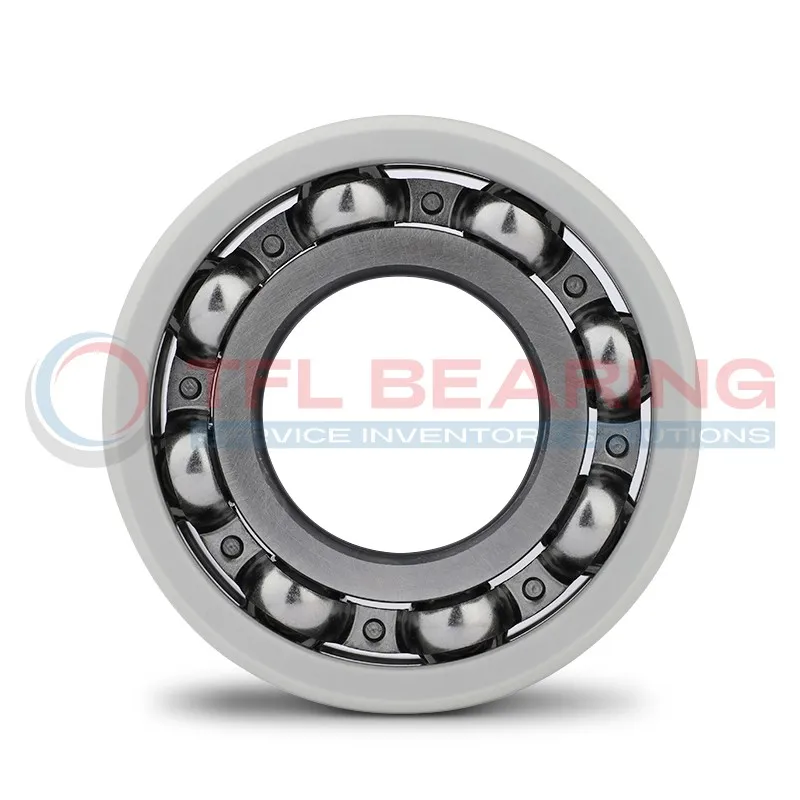

The 6214/C4VL0241 is an electrically insulated ball bearing with a 70mm bore and 125mm outer diameter, designed to prevent electrical currents from passing through. Its outer ring features a special coating that resists voltages up to 3000V, making it ideal for electric motors.
With a dynamic load rating of 66kN and a reference speed of 10000 RPM, it handles high loads and spins smoothly. The C4 radial clearance allows for thermal expansion, ensuring reliable performance in varying conditions.
The sheet metal cage provides durability, while the insulation layer (100-500µm thick) offers electrical resistance of 50-200 MΩ. This makes it suitable for applications like generators or wind turbines where electrical insulation is crucial.
Weighing 1.07kg, it’s a robust choice for industrial use. Compliant with RoHS and REACH standards, it’s both safe and environmentally friendly.
"*" indicates required fields
Why Choose 6214/C4VL0241 Bearing for Precision Tasks?
6214/C4VL0241 Bearing features an insulation coating on the outer ring, preventing electrical current damage.
Its breakdown voltage ranges from 1000 to 3000 V, making it ideal for electric motor applications.
The sheet metal cage ensures smooth operation, even at high speeds up to 10,000 r/min.
With a basic dynamic load rating of 66.0 kN, it handles demanding conditions reliably.
6214/C4VL0241 Bearing’s electrical resistance of 50~200 MΩ reduces the risk of electrical arcing.
Its C4 radial internal clearance allows for thermal expansion in high-temperature environments.
The insulation layer thickness of 100~500 µm provides consistent protection against electrical currents.
This design ensures long-lasting performance in electrically challenging applications.
Industrial Uses of 6214/C4VL0241 Bearing
The 6214/C4VL0241 Bearing is commonly used in electric motors and generators, where its insulation coating prevents electrical arcing and extends component life.
Its high dynamic load rating makes it suitable for industrial machinery operating under variable speeds and loads.
Where Is 6214/C4VL0241 Bearing Used?
You’ll often find the 6214/C4VL0241 Bearing in wind turbines, where its insulation properties protect against stray currents.
The C4 radial clearance ensures smooth performance even under thermal expansion in demanding environments.
Built for Heavy-Duty Use: 6214/C4VL0241 Bearing
This bearing handles high-speed applications like spindle drives, thanks to its robust construction and reference speed of 10000 r/min.
The sheet metal cage provides durability while maintaining precise ball alignment during operation.
Automotive vs Aerospace: Applications of 6214/C4VL0241 Bearing
In automotive alternators, the 6214/C4VL0241 Bearing’s insulation prevents damage from electrical currents.
For aerospace applications, its lightweight design and reliability make it a preferred choice for auxiliary power units.
Perfect Fit for Automation: 6214/C4VL0241 Bearing
The 6214/C4VL0241 Bearing works well in robotic arms, where electrical insulation reduces interference with sensitive electronics.
Its consistent performance under high speeds ensures precision in automated assembly lines.
