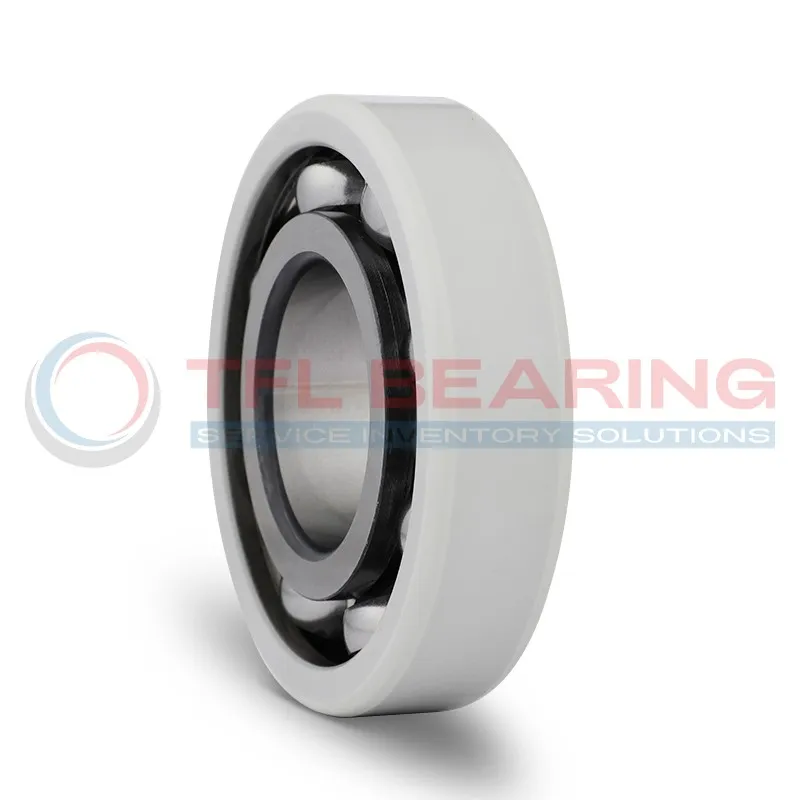

The 6022/C3VL0241 is an electrically insulated ball bearing with a 110mm bore and 170mm outer diameter, designed to prevent electrical currents from passing through. Its outer ring features a special coating that provides insulation, making it ideal for electric motors or generators.
With a dynamic load rating of 85.2 kN and a static load rating of 73.5 kN, it handles heavy loads while maintaining smooth operation. The bearing can reach speeds up to 8000 RPM, suitable for high-performance applications.
The insulation coating offers a breakdown voltage of 1000-3000 V and electrical resistance of 50-200 MΩ, ensuring reliable protection against electrical damage. Its C3 radial clearance allows for slight thermal expansion, making it versatile in various conditions.
Weighing 1.95 kg, this bearing is robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and durable choice for industrial and electrical uses.
"*" indicates required fields
Why Choose 6022/C3VL0241 Bearing for Precision Tasks?
6022/C3VL0241 Bearing features an insulating coating on the outer ring, preventing electrical current passage.
This design ensures reliable performance in electrically sensitive environments, reducing the risk of damage.
With a breakdown voltage of 1000-3000 V, 6022/C3VL0241 Bearing offers excellent electrical insulation.
Its sheet metal cage maintains ball alignment, enhancing durability and smooth operation.
The C3 radial internal clearance allows for thermal expansion, making it suitable for high-speed applications.
6022/C3VL0241 Bearing’s dynamic load rating of 85.2 kN ensures robust performance under heavy loads.
Easy to install and maintain, 6022/C3VL0241 Bearing reduces downtime and operational costs.
Its compliant RoHS and REACH status makes it an environmentally friendly choice.
Key Fields for 6022/C3VL0241 Bearing
6022/C3VL0241 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical arcing and extends component life. The C3 clearance ensures reliable performance even under thermal expansion.
In wind turbine systems, 6022/C3VL0241 Bearing handles high dynamic loads while maintaining electrical insulation. Its robust design makes it suitable for harsh outdoor conditions.
For industrial automation, 6022/C3VL0241 Bearing supports precision machinery like CNC spindles, where electrical insulation is critical. The sheet metal cage provides durability without compromising speed.
In railway applications, 6022/C3VL0241 Bearing reduces electrical current damage in traction motors. The high breakdown voltage ensures safety and reliability in demanding environments.
