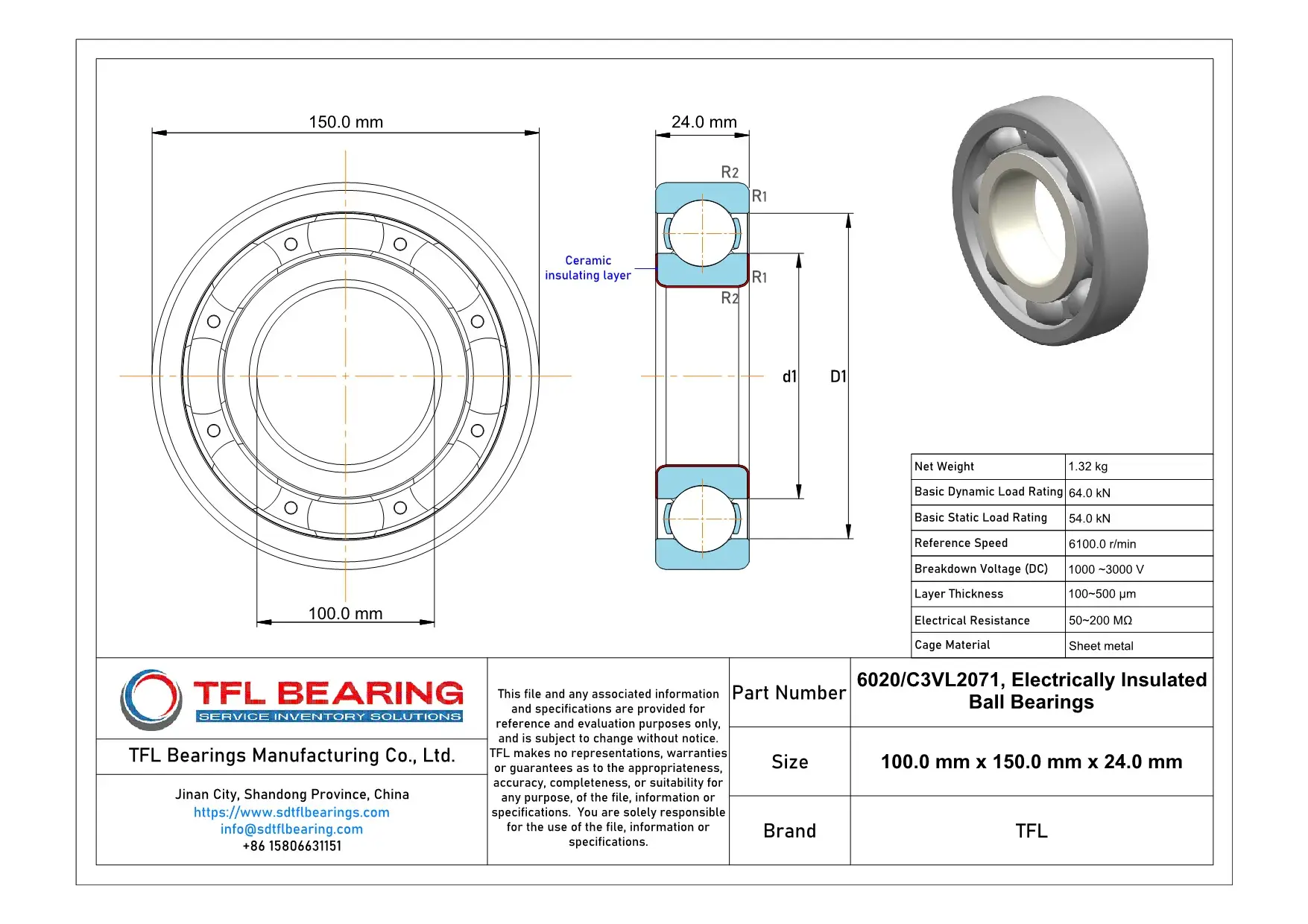

The 6020/C3VL2071 is an electrically insulated ball bearing with a 100mm bore and 150mm outer diameter, designed to prevent electrical currents from passing through. Its inner ring features a special coating that provides insulation, with a breakdown voltage of up to 3000V.
This bearing handles dynamic loads up to 64kN and spins smoothly at speeds up to 6100 RPM. The C3 radial clearance ensures reliable performance under varying thermal conditions.
Made with a durable sheet metal cage, it offers long service life even in demanding environments. The coating thickness ranges from 100 to 500µm, ensuring consistent electrical resistance.
Ideal for use in electric motors or generators where electrical insulation is crucial. Compliant with RoHS and REACH standards, it’s a safe and reliable choice for industrial applications. Weighing 1.32kg, it balances strength and practicality.
"*" indicates required fields
How Does 6020/C3VL2071 Bearing Prevent Electrical Current Damage?
6020/C3VL2071 Bearing features an inner ring insulation coating, effectively blocking electrical currents up to 3000 V.
This design prevents damage from stray currents, making it ideal for electric motors and generators.
The sheet metal cage ensures smooth operation, even at high speeds of 6100 r/min.
With a basic dynamic load rating of 64.0 kN, it offers reliable performance in demanding applications.
Industrial Uses of 6020/C3VL2071 Bearing
6020/C3VL2071 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical arcing and extends component life. The C3 radial clearance ensures smooth operation even under varying thermal conditions.
Where Is 6020/C3VL2071 Bearing Used?
You’ll often spot 6020/C3VL2071 Bearing in wind turbine systems, handling both radial loads and electrical isolation needs. Its sheet metal cage provides durability while maintaining consistent performance at high speeds.
Built for Heavy-Duty Use: 6020/C3VL2071 Bearing
This bearing shines in industrial pumps and compressors, where its 64 kN dynamic load rating handles continuous operation with ease. The 100-500 µm insulation layer reliably withstands voltage spikes common in power transmission equipment.
Automotive vs Aerospace: Applications of 6020/C3VL2071 Bearing
In electric vehicles, 6020/C3VL2071 Bearing prevents current leakage in traction motors, while its aerospace applications include auxiliary power units where electrical insulation is critical. The 150 mm OD fits neatly into compact designs.
Perfect Fit for Automation: 6020/C3VL2071 Bearing
Robotic servo systems benefit from 6020/C3VL2071 Bearing’s ability to operate at 6100 rpm without electrical interference. The 24 mm width makes it ideal for space-constrained automation equipment requiring reliable insulation.
