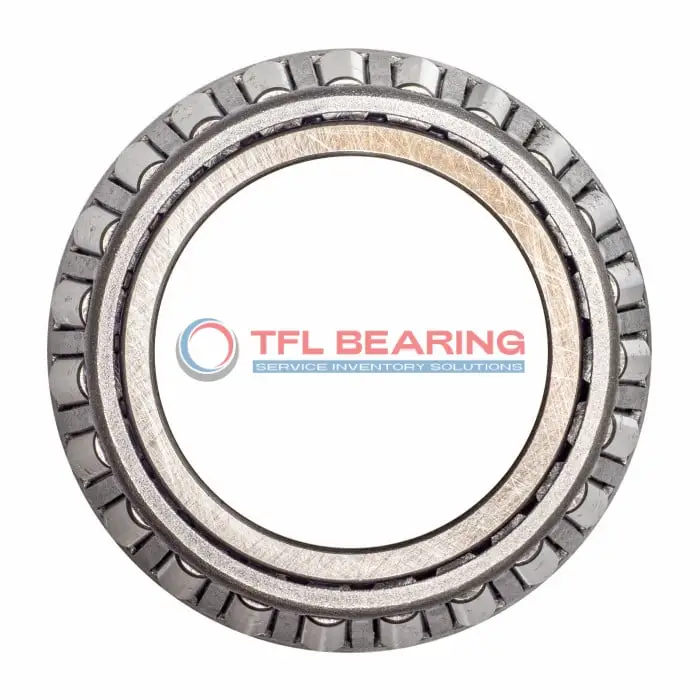

The EE275100 is a single-row tapered roller bearing cone with a 10-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 228,000 lbf and operates in temperatures from -30°C to 110°C.
Its open design allows easy maintenance, while the steel cage ensures reliable performance. The cone width is 2.75 inches, with precise tolerances for smooth operation.
This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or large equipment where combined loads are common.
Compliant with RoHS and REACH standards, it offers a balance of strength and durability. The standard radial clearance can be adjusted to C3, C4, or C5 for specific needs.
"*" indicates required fields
How Does EE275100 Bearing Handle Combined Loads?
EE275100 Bearing is crafted from chrome steel, offering robust resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 228,000 lbf, ensuring dependable performance in heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and enhancing durability.
With a temperature range of -30° to 110°C, it performs reliably in varied environments.
Why Choose EE275100 Bearing for High-Load Applications?
EE275100 Bearing features a tapered roller design, optimised for combined load handling.
The single-row construction provides stability, while the open seal type allows for easy maintenance.
Its dynamic thrust rating of 40,600 lbf ensures consistent performance under pressure.
The standard radial clearance options (C3/C4/C5) offer flexibility for different operational needs.
Engineered for Reliability: EE275100 Bearing
EE275100 Bearing’s chrome steel rings and rollers deliver long-lasting performance in demanding conditions.
The effective center location of 0.1″ ensures precise alignment, reducing wear over time.
With a static radial load capacity of 359,000 lbf, it excels in high-stress environments.
Its ABEC-1 rating guarantees a balance of precision and durability for industrial use.
Material Composition of EE275100 Bearing
EE275100 Bearing uses high-quality chrome steel for both rings and rollers, ensuring strength and wear resistance.
The steel cage enhances durability while maintaining smooth roller movement.
Its construction withstands temperatures from -30° to 110°C, suitable for diverse applications.
RoHS and REACH compliance ensures it meets environmental and safety standards.
Performance Features of EE275100 Bearing
EE275100 Bearing’s tapered roller design efficiently manages combined radial and thrust loads.
The dynamic radial rating of 396,000 lbf for two-row configurations highlights its versatility.
Standard radial clearance options allow for customisation based on operational requirements.
Its robust build and material quality ensure reliable performance in industrial settings.
Industrial Uses of EE275100 Bearing
EE275100 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.
Where Is EE275100 Bearing Used?
You’ll often find EE275100 Bearing in agricultural machinery, such as tractors and harvesters, where its high dynamic radial load capacity keeps things running smoothly. Its inch sizing makes it a fit for many North American industrial applications.
Built for Heavy-Duty Use: EE275100 Bearing
EE275100 Bearing excels in railway applications, supporting axles and wheels with its robust design. The open seal type allows for easy lubrication, which is essential for long-term performance in transport systems.
Automotive vs Aerospace: Applications of EE275100 Bearing
In automotive settings, EE275100 Bearing is ideal for truck wheel hubs, offering reliable performance under heavy loads. For aerospace, its precision and temperature range make it suitable for ground support equipment.
Essential Roles of EE275100 Bearing
EE275100 Bearing plays a key role in wind turbine gearboxes, where its tapered rollers manage both radial and thrust loads. The steel cage adds extra strength, ensuring stability in high-wind conditions.
