Drawn Cup Needle Roller Bearings SCE87-PP
Drawn Cup Needle Roller Bearings SCE87-PP

Drawn Cup Needle Roller Bearings SCE87-PP

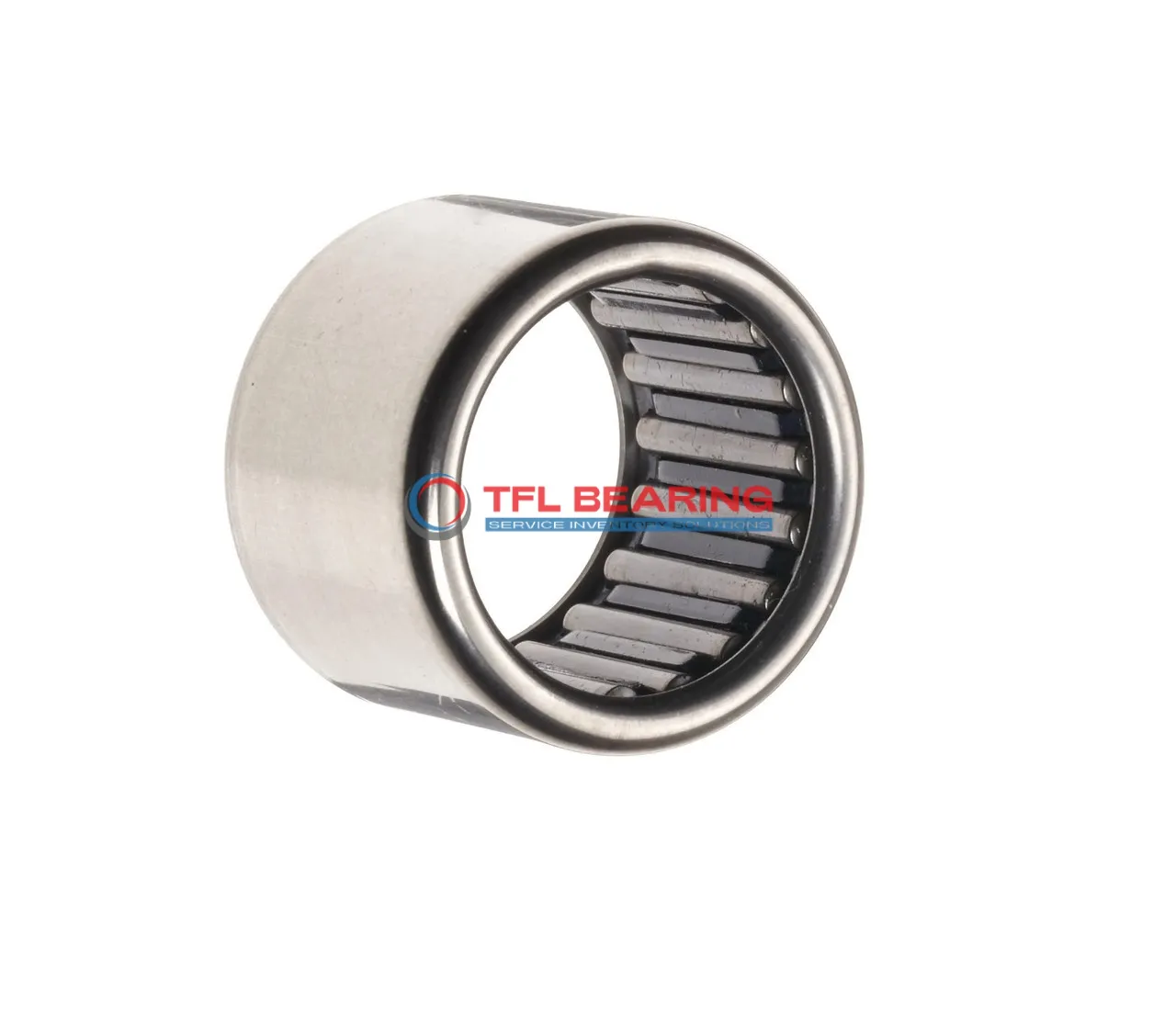

The SCE87-PP is a drawn cup needle roller bearing with a 0.5″ bore and 0.6875″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 821 lbf and spins smoothly at speeds up to 19,500 RPM.
Its double-seal design keeps contaminants out while retaining lubrication, making it low-maintenance. The press-fit shaft mount ensures a secure and stable installation.
This bearing is ideal for applications like small engines or gearboxes where space is limited but high load capacity is needed. It works well in temperatures from -20°C to 110°C.
Interchangeable with INA bearings, it’s a practical choice for replacements. Compliant with RoHS standards for safe use.

Get A Free Quote

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number SCE87-PP
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.5"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.6875"
  • Outer Dia Tolerance Not Rated
  • Width 0.4375"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Double Seal
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 821 lbf
  • Static Radial Load 888 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 19500 rpm
  • Weight 6 g

Features

How Does SCE87-PP Bearing Handle High-Speed Applications?
SCE87-PP Bearing is built with a double-seal design, keeping contaminants out and lubrication in for smooth operation.
Its steel construction ensures durability, handling dynamic radial loads up to 821 lbf with ease.
The press-fit shaft mount simplifies installation, saving time and effort during assembly.
With a maximum speed of 19,500 rpm, SCE87-PP Bearing excels in high-speed radial applications.
Its compact inch-sized design makes it ideal for space-constrained environments.
The temperature range of -20 to 110°C ensures reliable performance in varying conditions.

Application

Common Applications of SCE87-PP Bearing
SCE87-PP Bearing is widely used in industrial equipment, especially in compact spaces where high radial load capacity is needed, like conveyor systems and printing machines. Its double-seal design helps keep contaminants out, extending service life in dusty environments.
In automotive applications, SCE87-PP Bearing fits well in gearboxes and transmission systems, providing smooth rotation under heavy loads. The press-fit mounting ensures a secure connection, reducing maintenance needs over time.
For automation projects, SCE87-PP Bearing works efficiently in robotic arms and small actuators, thanks to its low-profile design. The steel construction offers durability while maintaining a lightweight profile for dynamic movements.
Around the home, SCE87-PP Bearing can be found in power tools and small appliances, where its reliability keeps everyday devices running smoothly. The inch sizing makes it compatible with many North American products.
