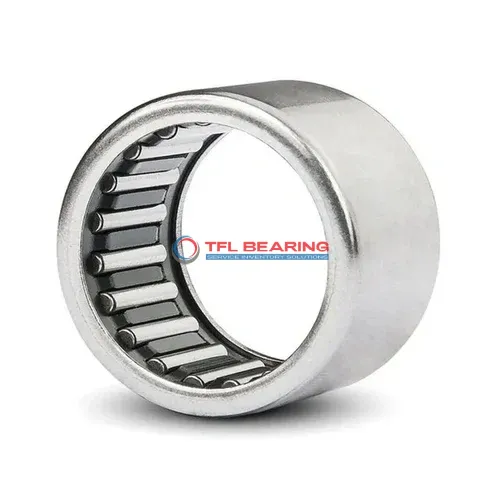

Drawn Cup Needle Roller Bearings SCE2012
Drawn Cup Needle Roller Bearings SCE2012

Drawn Cup Needle Roller Bearings SCE2012

The SCE2012 is a drawn cup needle roller bearing with a 1.25″ bore and 1.5″ outer diameter, made from sturdy steel for reliable performance. It handles radial loads up to 4743 lbf and can spin at speeds up to 8200 RPM.
Its open-end design and press-fit mounting make it easy to install in tight spaces. The steel construction ensures durability, while the needle rollers provide smooth operation under load.
This bearing requires regular lubrication to maintain optimal performance. It works well in temperatures ranging from -20°C to 110°C, making it suitable for various environments.
Ideal for applications like automotive components or industrial machinery where space is limited. Compliant with RoHS standards for safe use.
The compact width of 0.75″ makes it a space-saving solution without compromising strength. Interchangeable with INA bearings for easy replacement.

Get A Free Quote

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number SCE2012
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.25"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.5"
  • Outer Dia Tolerance Not Rated
  • Width 0.75"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 4743 lbf
  • Static Radial Load 888 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 8200 rpm
  • Weight 37 g

Features

Why Choose SCE2012 Bearing for Precision Tasks?
SCE2012 Bearing is crafted with steel rings and needles, offering strong radial load support up to 4743 lbf.
Its press-fit shaft mount ensures secure installation, making it ideal for precision applications.
The open-end design of SCE2012 Bearing allows for easy lubrication, enhancing its performance and longevity.
With a maximum speed of 8200 rpm, it delivers reliable operation in various industrial settings.
SCE2012 Bearing works efficiently within a temperature range of -20 to 110°C, suitable for diverse environments.
Its steel construction provides durability, reducing the need for frequent replacements.

Application

Common Applications of SCE2012 Bearing
SCE2012 Bearing works well in industrial settings, especially for radial loads in machinery like conveyor belts and printing presses. Its press-fit design ensures a secure mount, reducing slippage during operation.
In automotive systems, SCE2012 Bearing fits neatly into gearboxes and steering columns, handling high speeds smoothly. The steel construction offers durability, making it a reliable choice for long-term use.
For automation equipment, SCE2012 Bearing supports robotic arms and assembly line mechanisms with precision. Its open-end design allows for easy lubrication, keeping performance consistent over time.
In household appliances like washing machines, SCE2012 Bearing helps reduce noise and vibration. The inch sizing makes it compatible with many North American models, simplifying replacements.
