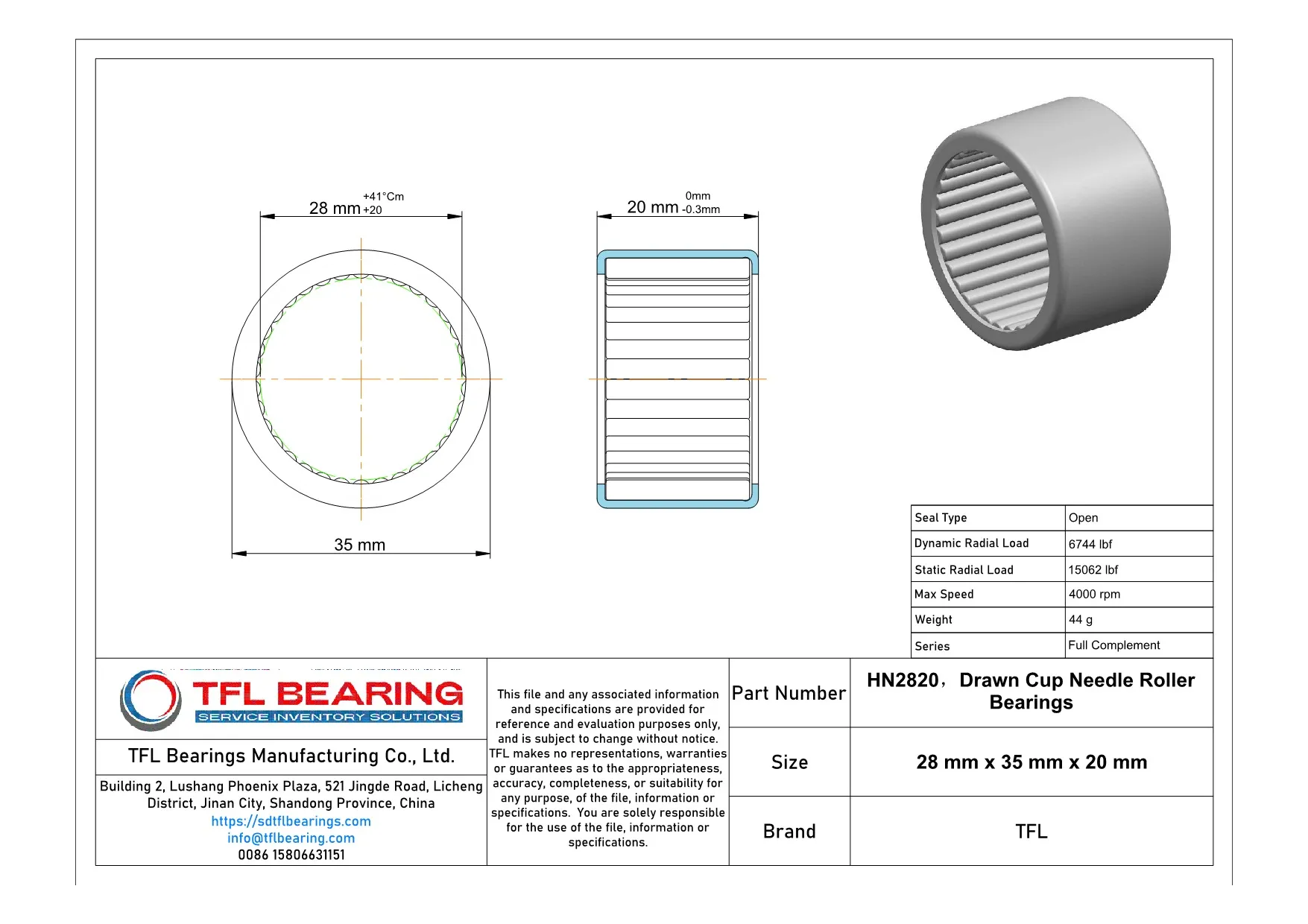

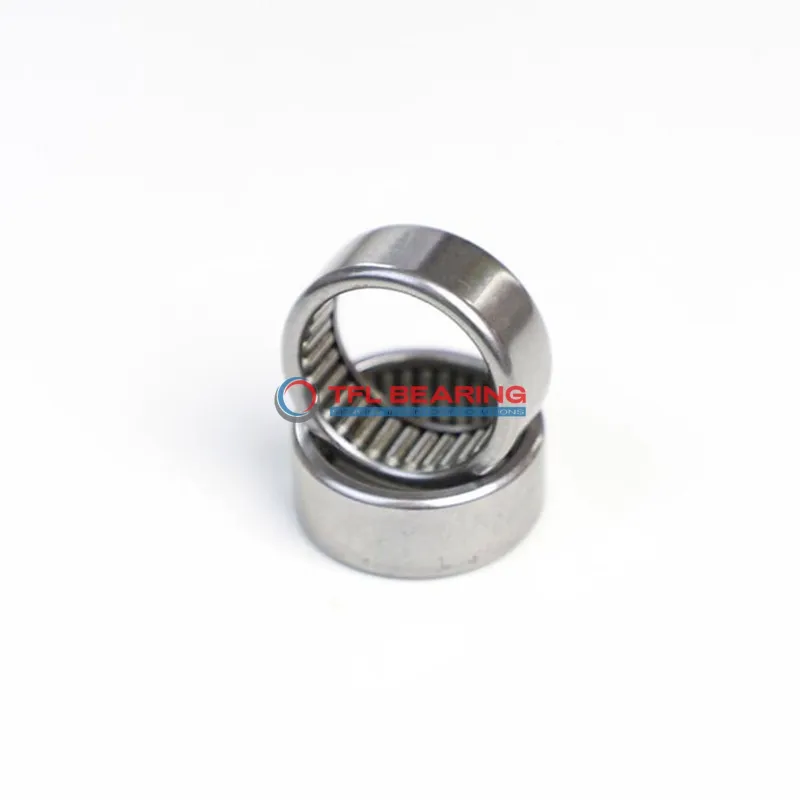

The HN2820 is a drawn cup needle roller bearing with a 28mm bore and 35mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 6744 lbf and operates smoothly at speeds up to 4000 RPM.
Its full complement design maximises load capacity, while the open seal allows for easy lubrication. The press-fit shaft mount ensures a secure installation.
This bearing works well in temperatures ranging from -20°C to 110°C, making it suitable for various environments. It’s interchangeable with INA bearings, offering a practical replacement option.
Ideal for applications like transmissions or industrial machinery where space is limited but high load capacity is needed. Compliant with RoHS standards for safe use.
"*" indicates required fields
How Does HN2820 Bearing Handle Heavy Loads?
HN2820 Bearing is built with a full complement needle roller design, offering high radial load capacity.
Its dynamic radial load rating of 6744 lbf ensures reliable performance in demanding applications.
The steel construction provides durability, making HN2820 Bearing suitable for press-fit mounting.
With a maximum speed of 4000 rpm, it balances efficiency and strength in various conditions.
HN2820 Bearing operates within a temperature range of -20 to 110°C, adapting to different environments.
Regular lubrication ensures smooth operation and extends the bearing’s service life.
Industrial Uses of HN2820 Bearing
HN2820 Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
Where Is HN2820 Bearing Used?
You’ll often find HN2820 Bearing in automotive transmissions, where its press-fit design simplifies installation. Its ability to handle high speeds makes it a reliable choice for performance vehicles.
Built for Heavy-Duty Use: HN2820 Bearing
HN2820 Bearing excels in construction equipment like hydraulic pumps, thanks to its full complement needle rollers. The open seal type allows for easy lubrication, extending its service life.
Medical vs Industrial: Where HN2820 Bearing Excels
While HN2820 Bearing isn’t typically used in medical devices, it shines in industrial automation systems like conveyor belts. Its high static radial load rating ensures stability under heavy loads.
Automotive vs Aerospace: Applications of HN2820 Bearing
HN2820 Bearing is more suited for automotive applications, such as steering systems, rather than aerospace. Its metric sizing and steel materials make it a cost-effective solution for mass production.
