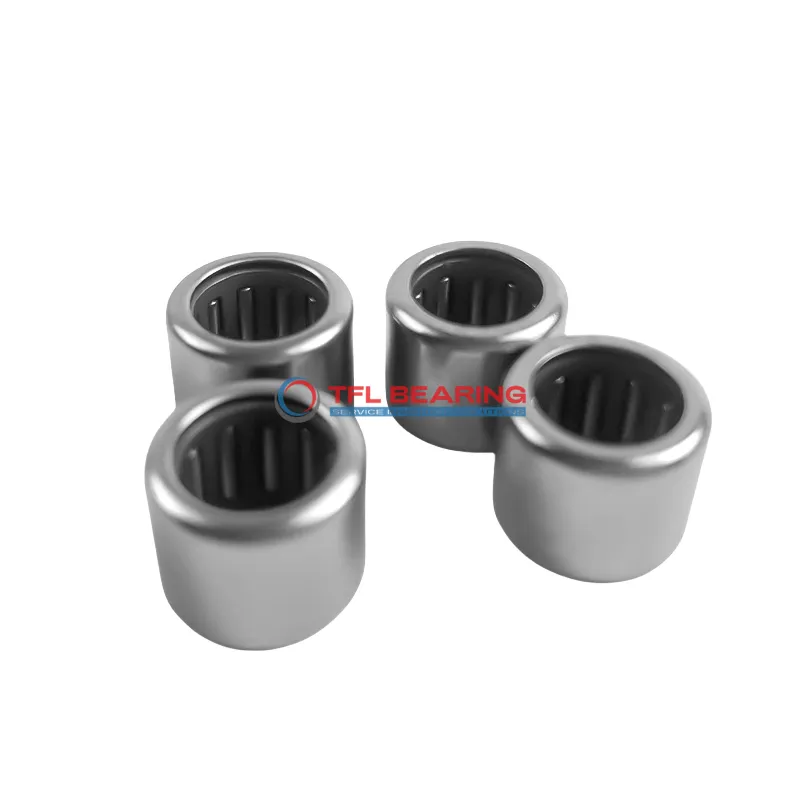

The HK1520-2RS is a drawn cup needle roller bearing with a 15mm bore and 21mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 236 lbf and can spin at speeds up to 9900 RPM.
Its double-seal design keeps dirt out and lubrication in, making it low-maintenance. The press-fit shaft mount ensures a secure and easy installation.
This bearing is ideal for compact spaces in applications like automotive transmissions or small machinery. It works well in temperatures from -20°C to 110°C.
Compliant with RoHS standards, it’s a practical choice for replacements, especially as it’s interchangeable with INA models.
The HK1520-2RS features a single-row needle roller design, offering a slim profile with a width of just 20mm. Its steel construction provides durability under radial loads.
The double-sealed ends help retain grease, reducing the need for frequent re-lubrication. This makes it suitable for environments where maintenance access is limited.
Perfect for use in motorcycles or industrial equipment, it balances high-speed capability with load-bearing strength. The press-fit mounting ensures it stays firmly in place during operation.
With a static radial load capacity of 3237 lbf, it’s built to handle demanding conditions while remaining compact and efficient.
This needle roller bearing is designed for radial load applications, with a lightweight yet robust steel build. Its 15mm bore and 21mm outer diameter make it a space-saving solution.
The double seals protect against contaminants, extending its lifespan even in harsh conditions. Lubrication is required, but the design minimises upkeep.
Ideal for gearboxes or small engines, it supports high-speed rotations up to 9900 RPM. The press-fit installation ensures a tight and reliable fit.
Interchangeable with INA bearings, it’s a versatile option for repairs or upgrades. RoHS compliance guarantees it meets environmental safety standards.
"*" indicates required fields
Why Choose HK1520-2RS Bearing for Precision Tasks?
HK1520-2RS Bearing features a double-sealed design, protecting against contaminants while maintaining smooth operation.
Its steel construction ensures durability and reliable performance under radial loads up to 236 lbf.
The press-fit mounting simplifies installation, saving time and effort in assembly.
With a maximum speed of 9,900 rpm, HK1520-2RS Bearing is suitable for high-speed applications.
The temperature range of -20 to 110°C allows it to perform well in various operating conditions.
Common Applications of HK1520-2RS Bearing
HK1520-2RS Bearing works well in industrial settings, especially for compact machinery like conveyor rollers and printing presses. Its double-sealed design keeps lubrication in and contaminants out, extending service life.
In automotive applications, HK1520-2RS Bearing fits neatly into gearboxes and steering systems where space is tight. The press-fit mounting ensures a secure hold even during high-speed rotations.
For home appliances, HK1520-2RS Bearing reliably supports parts in washing machines and power tools. The steel construction handles everyday wear while maintaining smooth operation.
Automation equipment benefits from HK1520-2RS Bearing’s low-profile design in robotic arms and assembly line guides. Its metric sizing makes it easy to pair with standard components.
