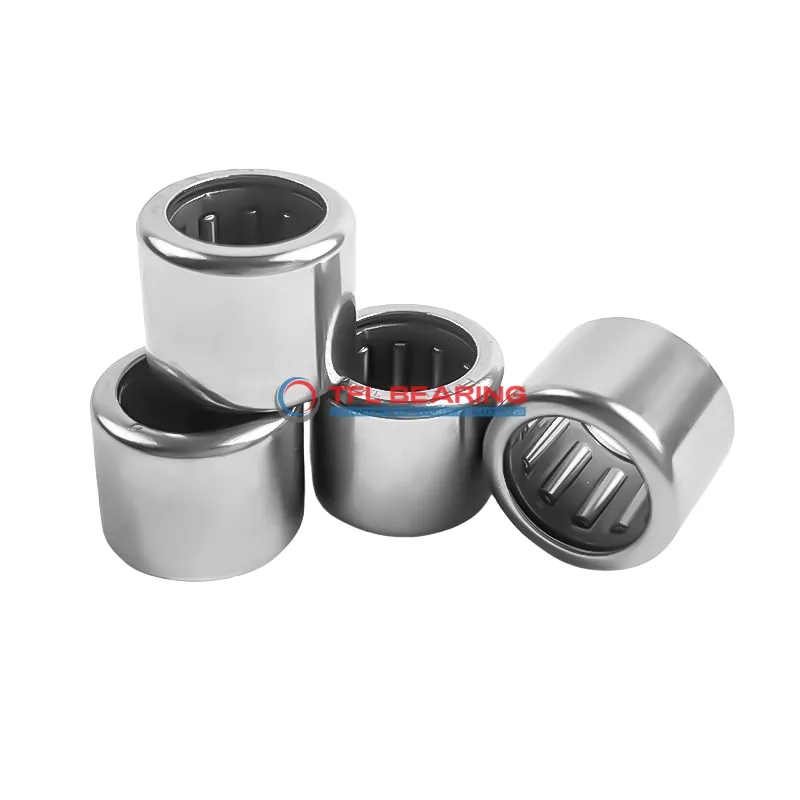

The HK1214-2RS is a drawn cup needle roller bearing with a 12mm bore and 16mm outer diameter, crafted from sturdy steel. It handles radial loads up to 1113 lbf and spins smoothly at speeds up to 12400 RPM.
Its double-seal design keeps dirt out and grease in, making it low-maintenance for long-term use. The press-fit mounting ensures a secure fit on shafts.
This bearing is ideal for compact spaces in applications like automotive transmissions or small machinery. It operates well in temperatures from -20°C to 110°C.
Interchangeable with INA bearings, it’s a practical choice for replacements. Compliant with RoHS standards for safe use.
"*" indicates required fields
How Does HK1214-2RS Bearing Resist Wear?
HK1214-2RS Bearing features a double-sealed design, protecting against contaminants and extending its service life.
The steel construction ensures durability, even under high radial loads up to 1113 lbf.
With a maximum speed of 12,400 rpm, HK1214-2RS Bearing maintains smooth operation in demanding conditions.
Its press-fit shaft mount simplifies installation, reducing downtime and maintenance efforts.
The needle roller design of HK1214-2RS Bearing provides excellent load distribution, minimising wear.
It operates reliably within a temperature range of -20 to 110°C, making it versatile for various applications.
Common Applications of HK1214-2RS Bearing
HK1214-2RS Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, such as conveyor systems and gearboxes. Its double seal design helps keep contaminants out, extending service life in dusty environments.
In automotive applications, HK1214-2RS Bearing fits well in components like steering systems and transmissions, where its press-fit mounting ensures a secure hold. The steel construction provides durability under constant vibration and load.
For automation equipment, HK1214-2RS Bearing supports smooth motion in robotic arms and linear guides, thanks to its needle roller design. The high-speed capability makes it suitable for repetitive, precision tasks.
In household appliances, HK1214-2RS Bearing can be found in items like washing machines and power tools, where its compact size and reliability are key. The metric dimensions ensure compatibility with a range of consumer products.
