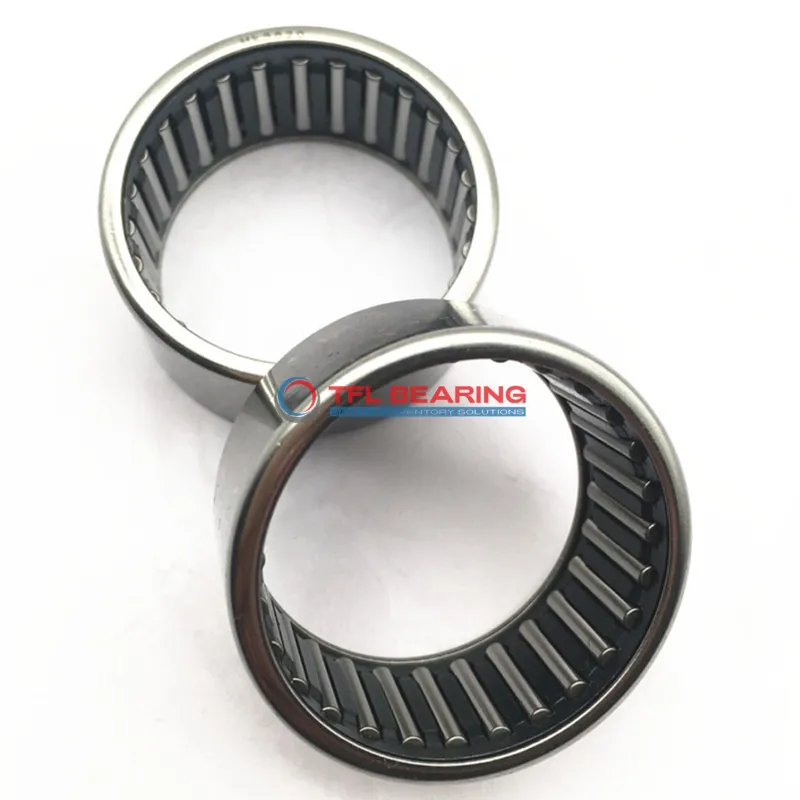

The BCE1312 is a drawn cup needle roller bearing with a 0.8125″ bore and 1.0625″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 3574 lbf and spins smoothly at speeds up to 13600 RPM.
Its open design and press-fit mounting make installation straightforward, while the steel cage ensures durability. The bearing operates well in temperatures from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like automotive components or machinery where space is limited but high load capacity is needed.
Regular lubrication is recommended to maintain its performance. Compliant with RoHS standards for safe use.
"*" indicates required fields
How Does BCE1312 Bearing Handle High-Speed Applications?
BCE1312 Bearing is crafted with steel rings and needles, offering robust radial load support up to 3574 lbf.
Its press-fit design ensures secure mounting, making it ideal for high-speed operations up to 13,600 rpm.
The single-row construction provides stability, while the open seal type allows for easy lubrication.
With a temperature range of -20 to 110°C, it performs reliably in various conditions.
Common Applications of BCE1312 Bearing
BCE1312 Bearing is widely used in automotive transmissions, where its compact design and high radial load capacity make it ideal for space-constrained applications. The press-fit mounting ensures a secure fit, reducing maintenance needs.
In industrial machinery, BCE1312 Bearing excels in conveyor systems and printing presses, handling high speeds up to 13600 rpm. Its steel construction offers durability in demanding environments.
For small electric motors, BCE1312 Bearing provides reliable performance due to its needle roller design, which minimises friction. The open seal type allows for easy lubrication, extending service life.
In household appliances like washing machines, BCE1312 Bearing supports rotating parts with smooth operation. Its inch sizing makes it compatible with many North American products.
