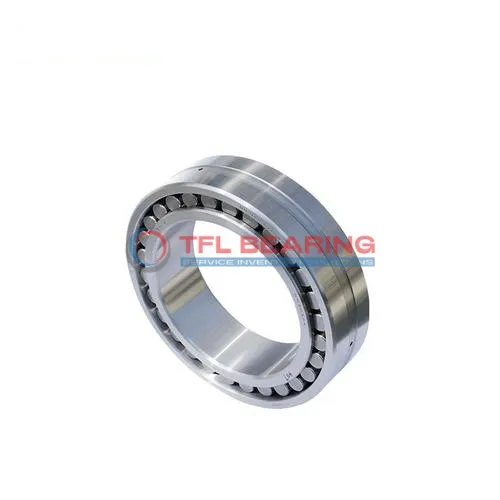

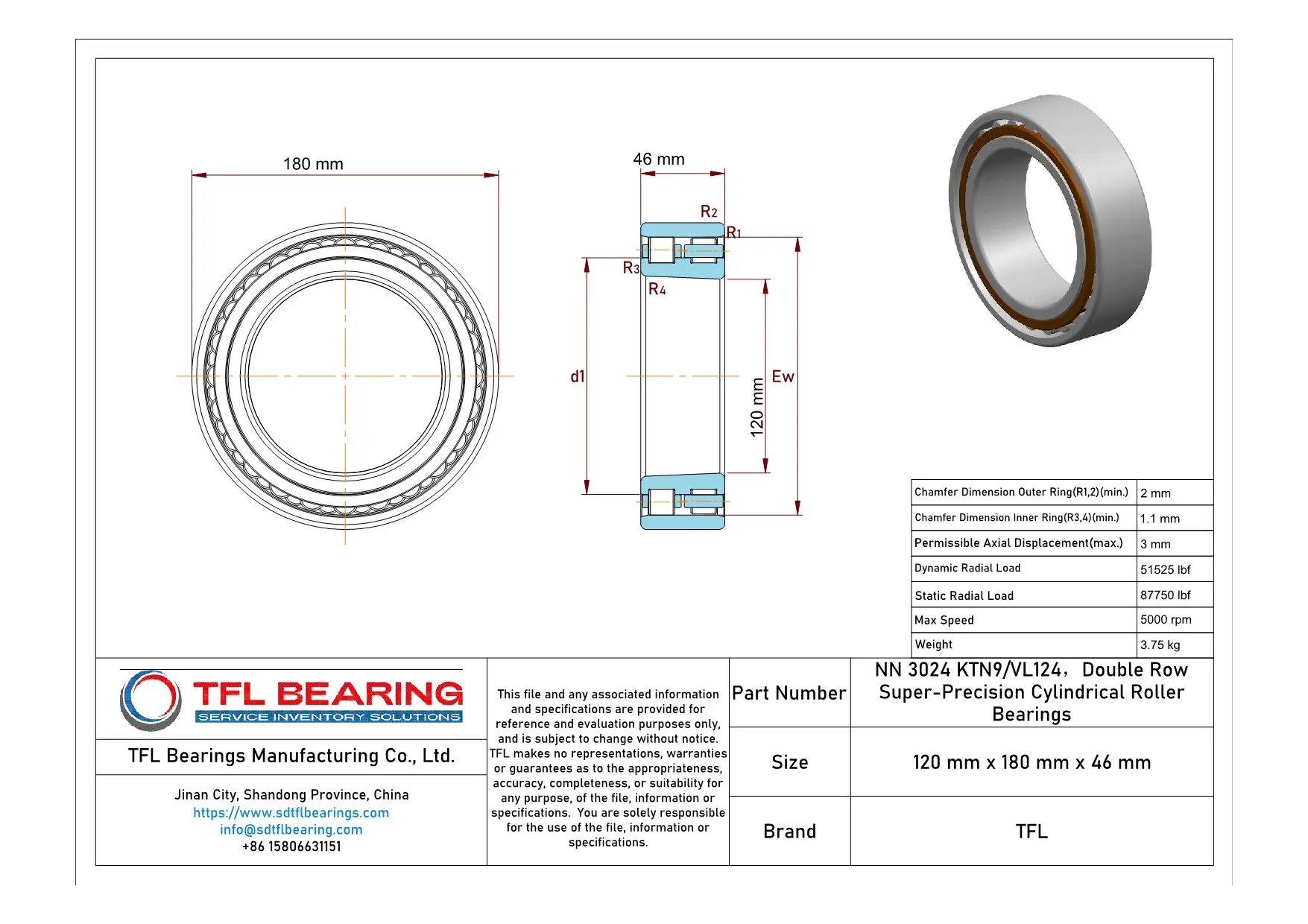

The NN 3024 KTN9/VL124 is a double-row cylindrical roller bearing with a 120mm tapered bore and 180mm outer diameter, crafted from high-quality chrome steel. It manages combined loads up to 51525 lbf and operates smoothly at speeds up to 5000 RPM.
Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures durability and centred roller alignment. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
With a 3mm permissible axial displacement, it offers flexibility in applications. This model is interchangeable with SKF bearings, making it a practical choice for replacements.
Weighing 3.75kg, it’s robust yet manageable for industrial use. Ideal for machinery requiring precision and high load capacity, such as gearboxes or heavy equipment. Compliant with RoHS and REACH standards for safe operation.
"*" indicates required fields
Performance Features of NN 3024 KTN9/VL124 Bearing
NN 3024 KTN9/VL124 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 51,525 lbf, making it suitable for heavy-duty applications.
The double-row cylindrical design ensures stability and precision in high-speed operations.
With a maximum speed of 5,000 rpm, it delivers reliable performance under demanding conditions.
NN 3024 KTN9/VL124 Bearing operates efficiently within a temperature range of -30° to 110°C.
The PA66 cage keeps the rollers centred, reducing friction and extending service life.
Lubrication options include grease or oil, providing flexibility for different operational needs.
Its open seal type allows for easy maintenance and inspection.
Industrial Uses of NN 3024 KTN9/VL124 Bearing
NN 3024 KTN9/VL124 Bearing is commonly used in heavy machinery like lathes and milling machines, where its double-row design handles both radial and axial loads efficiently. The tapered bore ensures a secure fit, reducing slippage during high-speed operations.
In automotive applications, NN 3024 KTN9/VL124 Bearing supports gearboxes and drivetrains, offering reliable performance under combined loads. Its chrome steel construction provides durability, making it suitable for long-term use in demanding conditions.
For automation systems, NN 3024 KTN9/VL124 Bearing is ideal for robotic arms and precision equipment, thanks to its high-speed capability and low friction. The open design allows for easy lubrication, ensuring smooth operation in continuous-use scenarios.
In wind turbines, NN 3024 KTN9/VL124 Bearing excels due to its ability to withstand heavy radial loads and harsh environmental conditions. The PA66 cage material enhances its resistance to wear, making it a dependable choice for renewable energy applications.
