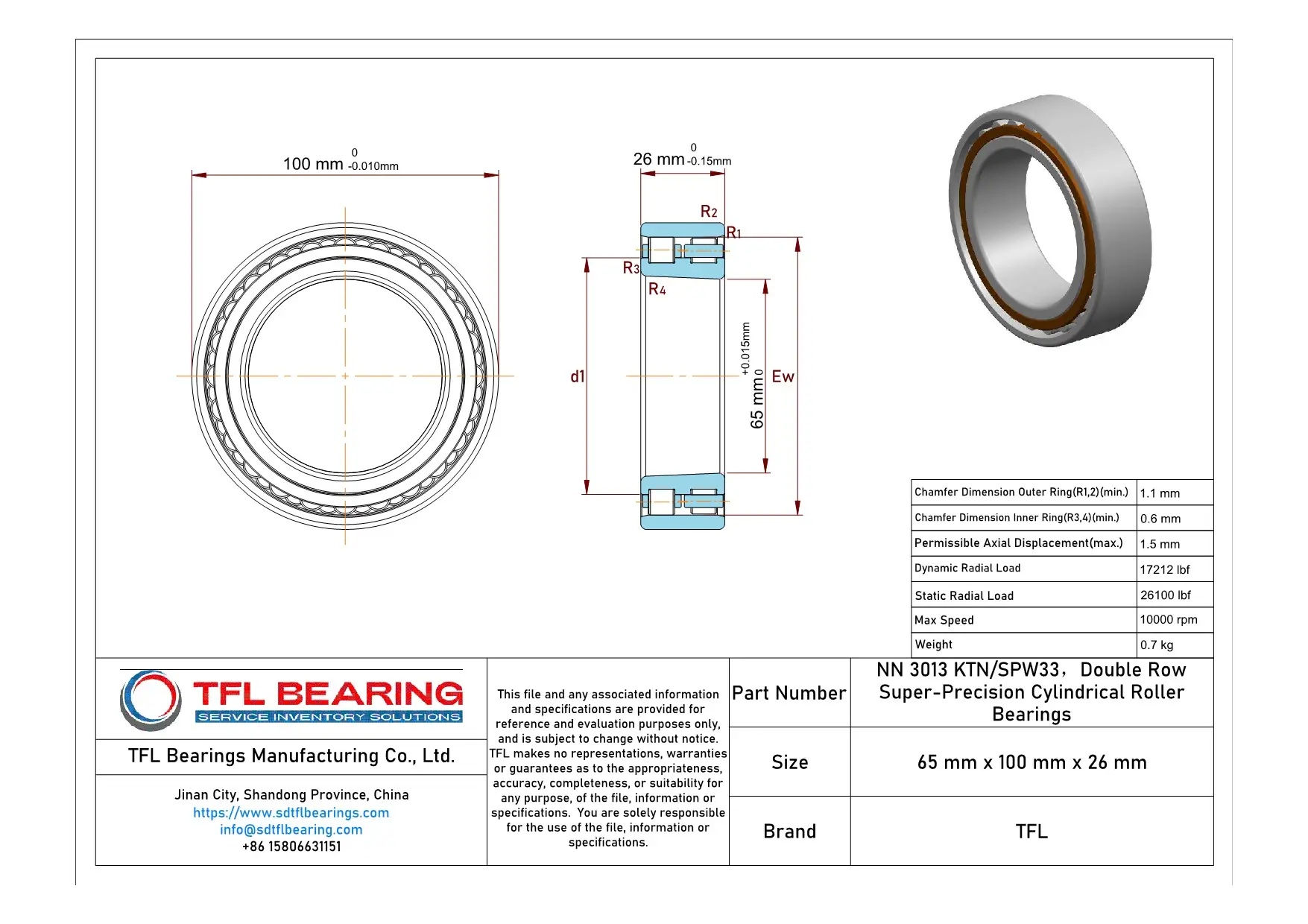

The NN 3013 KTN/SPW33 is a double-row cylindrical roller bearing with a 65mm bore and 100mm outer diameter, crafted from high-quality chrome steel. It handles combined loads up to 17212 lbf and reaches speeds of 10000 RPM, making it suitable for demanding applications.
Its open design and PA66 cage ensure smooth operation, while the tapered bore allows for precise mounting. The bearing can withstand temperatures from -30°C to 110°C, ideal for various industrial environments.
This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for machine tools or gearboxes where precision and durability are key.
Weighing 0.7kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for modern machinery.
The annular lubrication groove and holes make maintenance straightforward, whether using grease or oil. Its design ensures long service life even under heavy radial loads.
"*" indicates required fields
Performance Features of NN 3013 KTN/SPW33 Bearing
NN 3013 KTN/SPW33 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 17212 lbf, ensuring robust performance in various applications.
The double-row design enhances stability, making it suitable for precision tasks.
With a maximum speed of 10,000 rpm, it delivers both durability and efficiency.
NN 3013 KTN/SPW33 Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its PA66 cage keeps rollers centred, reducing wear and extending service life.
The open seal type allows for easy lubrication with grease or oil.
This design ensures minimal maintenance while maintaining reliable operation.
Industrial Uses of NN 3013 KTN/SPW33 Bearing
NN 3013 KTN/SPW33 Bearing is commonly used in machine tools, where its double-row design handles both radial and axial loads efficiently. The tapered bore ensures a secure fit, reducing slippage during high-speed operations.
In automotive applications, NN 3013 KTN/SPW33 Bearing supports gearboxes and drivetrains, offering stability under combined loads. Its chrome steel construction provides durability, even in demanding conditions.
For automation systems, NN 3013 KTN/SPW33 Bearing is ideal for robotic arms, where precision and smooth movement are essential. The open seal design allows for easy lubrication, extending service life.
In medical imaging equipment, NN 3013 KTN/SPW33 Bearing ensures reliable performance due to its high-speed capabilities and low friction. The PA66 cage material reduces wear, making it suitable for continuous use.
