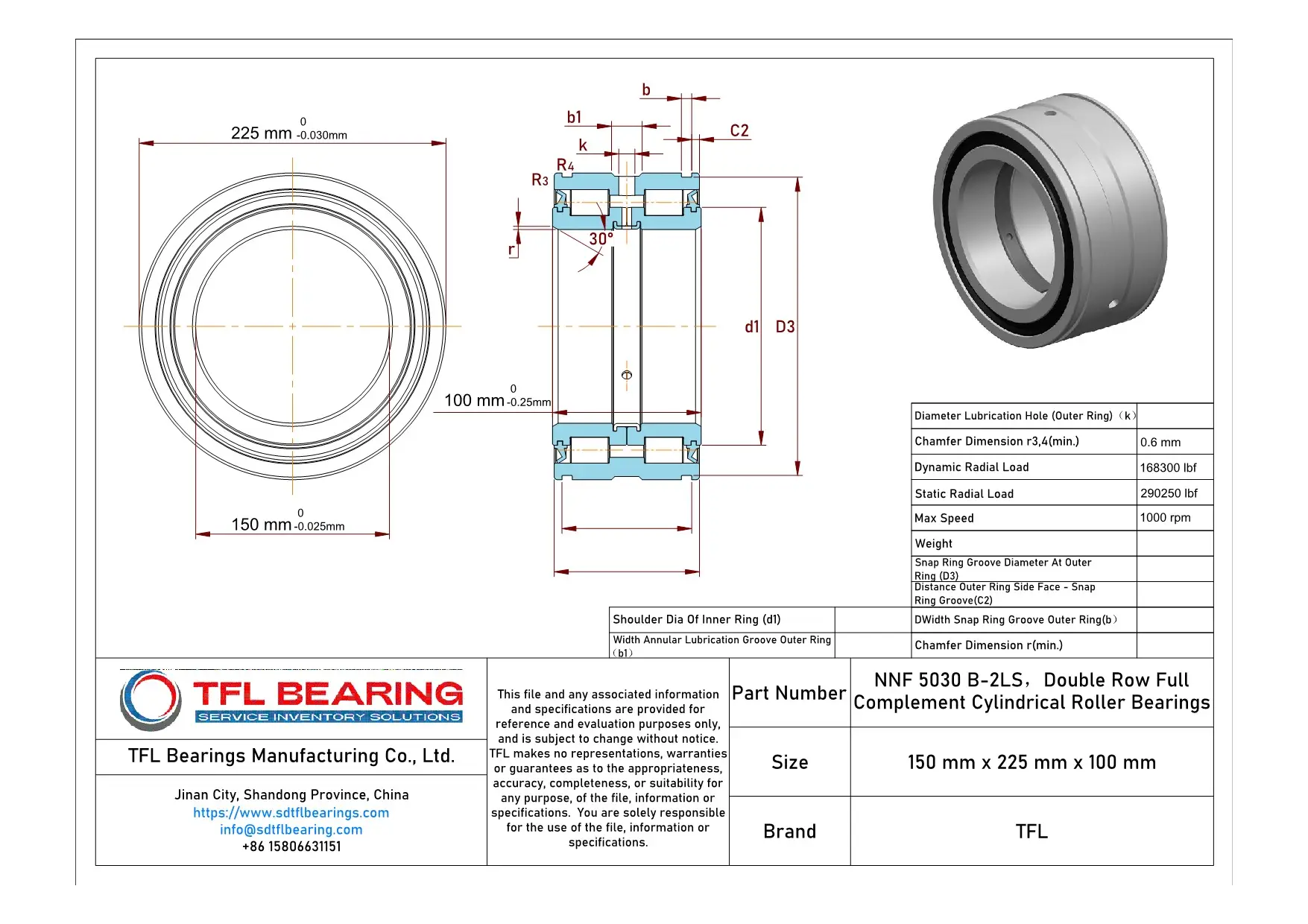

The NNF 5030 B-2LS is a double-row cylindrical roller bearing with a 150mm bore and 225mm outer diameter, built for combined loads. Its full complement design, using chrome steel rollers, boosts radial load capacity up to 168300 lbf.
Sealed on both sides, it keeps contaminants out while supporting speeds up to 1000 RPM. The absence of a cage allows more rollers, enhancing durability in heavy-duty applications.
This bearing suits harsh environments, with a temperature range of -30°C to 110°C. It’s interchangeable with SKF models, ideal for industrial gearboxes or mining equipment.
Grease or oil lubrication options provide flexibility for maintenance. Compliant with RoHS and REACH standards, it’s a reliable choice for demanding machinery.
"*" indicates required fields
How Does NNF 5030 B-2LS Bearing Handle Combined Loads?
NNF 5030 B-2LS Bearing features a double-row full complement design, providing high radial load capacity up to 168300 lbf.
The absence of a cage allows for more rollers, enhancing load distribution and durability.
Made from 52100 chrome steel, both rings and rollers resist wear, ensuring long service life.
Its sealed design protects against contaminants, making it suitable for harsh environments.
NNF 5030 B-2LS Bearing operates smoothly within a temperature range of -30° to 110°C.
With a maximum speed of 1000 rpm, it balances performance and reliability in demanding applications.
The grease or oil lubrication options provide flexibility for different operational needs.
This bearing is ideal for applications requiring high load capacity and minimal maintenance.
Industrial Uses of NNF 5030 B-2LS Bearing
NNF 5030 B-2LS Bearing is commonly used in heavy machinery, such as industrial gearboxes and large conveyor systems, where its double-row design handles high radial loads efficiently. The sealed construction helps keep contaminants out, extending the bearing’s lifespan in harsh environments.
In automotive applications, NNF 5030 B-2LS Bearing supports components like drivetrains and axles, offering reliable performance under combined loads. Its full-complement roller design ensures smooth operation even at moderate speeds.
For automation equipment, NNF 5030 B-2LS Bearing provides stability in robotic arms and precision machinery, thanks to its chrome steel construction. The grease or oil lubrication options make it adaptable to various operating conditions.
